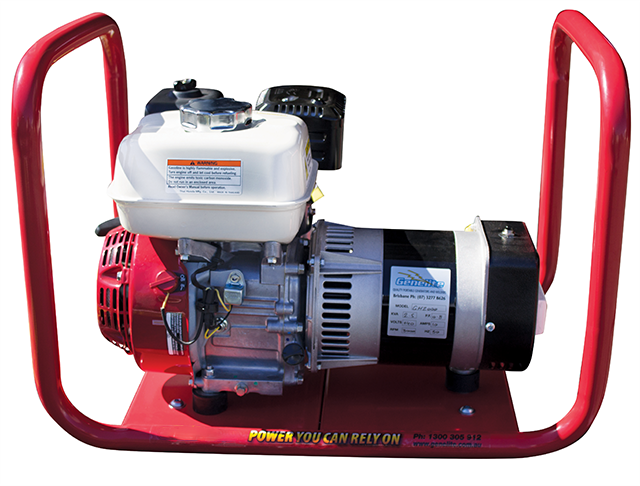

3.3kVA Honda Petrol Generator GH2700

The GH2700 is a single phase petrol generator producing 2.7kW / 3.3kVA at 240V and 50Hz. A Honda overhead valve single cylinder engine running at 3000 rpm with recoil start drives an AC synchronous brushless alternator with Class H insulation, and a small roll frame surrounds the set.

Key features

• Thermal overload switching on the two 10A 240V sockets cuts an overloaded circuit before it can overheat.
• Recoil start works without a battery, so there is nothing to keep charged.
• Harmonic distortion under 5% suits electronic equipment such as laptops and chargers as well as tools and pumps.
• The small roll frame guards the engine and alternator against knocks around the property or worksite.
• The brushless alternator has no brushes to wear out, and Class H insulation is a high heat class for the windings.
• A 3 year limited warranty covers the Honda engine.

The 3.6 litre tank runs the set for 2.7 hours at full load or 4 hours at 60% load. Noise is 72 dB(A) at 7 m. Engine oil capacity is 0.6 litres.

What it will run

At 2.7kW the GH2700 can supply about 11.3A in total at 240V (2700W divided by 240V), shared across both sockets. Typically that suits site lighting, a drill, a grinder, saws, a small compressor, a transfer pump and chargers, provided the running total stays within the rated output. Motors draw several times their running current at start, so start the largest load first. The compliance plate on each appliance gives its running and starting figures. For standby power at home the set must connect through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GH2700 suits trades and worksites, pumping and property jobs, events and standby power at home.

Key specifications

• Maximum output: 3.3kVA / 2.7kW
• Engine: Honda GX200
• Phase: Single phase
• Fuel tank: 3.6 litres
• Run time: 2.7hrs @ 100%, 4hrs @ 60% Load
• Noise level: 72 dB(A) @ 7m
• Weight: 39 kg
• Dimensions (L x W x H): 67 x 45 x 52 cm
• Engine type: Overhead valve, single cylinder
• Engine speed: 3000 rpm
• Starting: Recoil start
• Voltage and frequency: 240V, 50Hz
• Outlets: 2 x 10A 240V (switched with thermal overload)
• Frame: Small roll frame
• Alternator: AC synchronous brushless, Class H insulation, harmonic distortion less than 5%
• Engine oil capacity: 0.6 litres
• Engine warranty: 3 years limited

Part of the Honda range at Gen4Sale.
