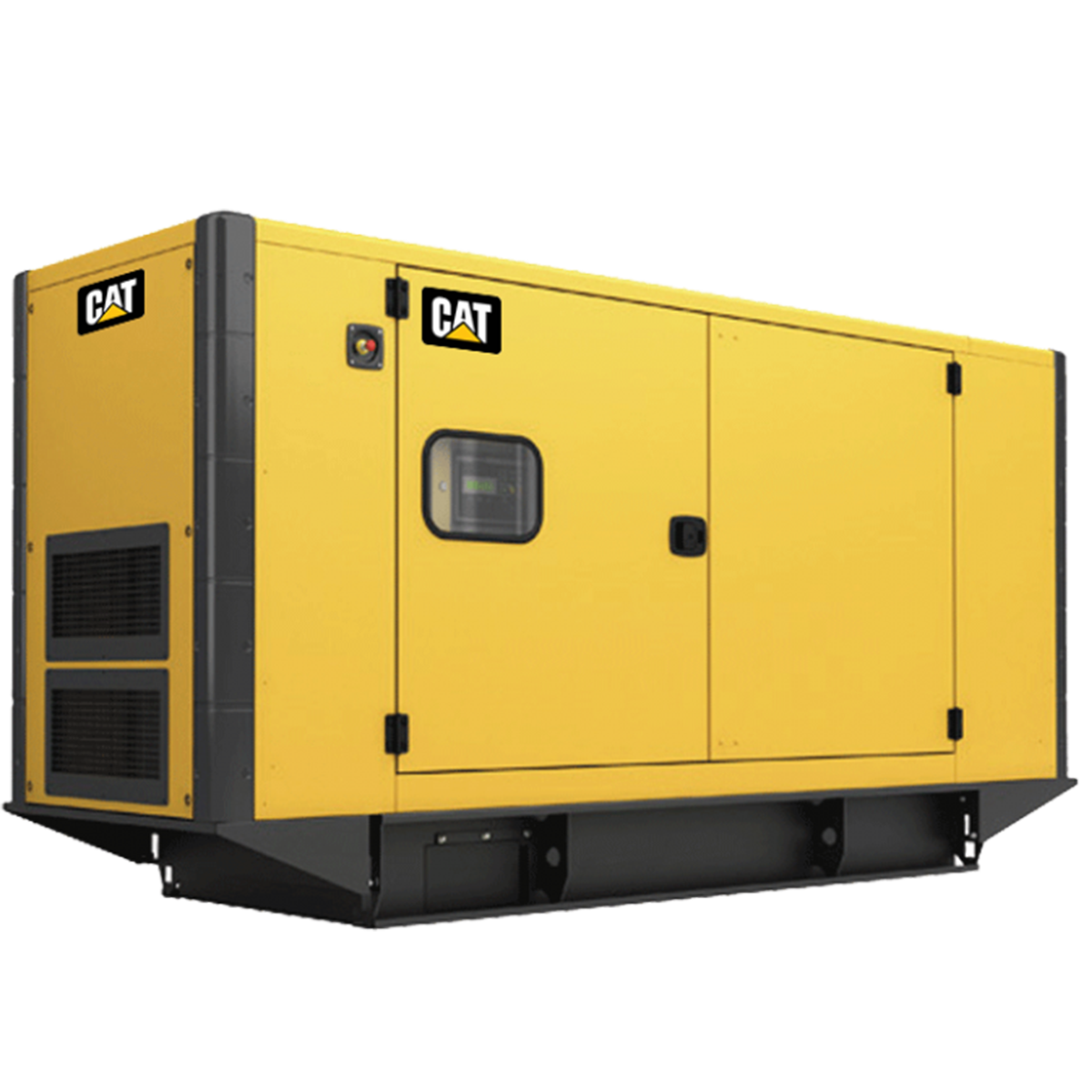

26kVA CAT Diesel Generator DE26-SP ENCL

The DE26-SP is a stationary, single phase diesel generator set. A Cat C3.3 engine drives an LCB1514J alternator.

Key features

• The Cat C3.3 is a naturally aspirated, water cooled, four-stroke diesel with three cylinders in line and 3.3 litres of displacement.
• A mechanical governor holds the engine at 1500 rpm, so speed control does not depend on engine electronics.
• A 161 litre fuel tank gives the set its own on-board supply, with running time depending on the load.
• Replaceable-element air and fuel filters and a spin-on, full-flow oil filter make routine filter changes simple.
• The LCB1514J alternator pairs class H insulation with shunt excitation, and an IP23 rating guards against finger-sized objects and water spray.
• An R220 automatic voltage regulator holds steady state voltage regulation to plus or minus 1.0%, so output voltage stays close to its set point under a steady load.
• The power factor is 1.0, so the kW rating equals the kVA rating.

Noise is 66.9 dBA at 7 m. The engine runs on Class A2 diesel or BS EN 590 fuel and uses API CG4 or CH4 15W-40 engine oil.

What it will run

This single phase set typically suits larger workshops, farm and irrigation pumping, cold storage and commercial premises on a single phase supply. Start with a load list: the running load on each circuit, then the motors, which draw several times their running current as they start. Motors and other inductive loads also run at a lower power factor than the 1.0 the set is rated at, so check their kVA as well as their kW. Each appliance's compliance plate lists its running and starting figures. Connection to the switchboard, through a changeover switch, must be made by a licensed electrician. Send us your load list and we can help you choose.

The DE26-SP suits standby power at commercial and industrial sites on a single phase supply, such as larger workshops, irrigation and farm pumping, cold storage and building services.

Price on application. Configuration, options and site each change the price of a stationary diesel set, so it is quoted to your requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Power output: 26kVA standby, 24kVA prime (50 Hz)
• Engine: CAT Diesel Engine C3.3
• Alternator: Leroy Somer Brushless Alternator
• Phase: Single phase
• Fuel tank: 161 litres
• Noise level: 66.9 dBA @ 7m
• Dimensions (L x W x H): 212 x 97 x 152.5 cm
• Weight: 991 kg
• Engine configuration: 3 cylinder in-line, 4-stroke, naturally aspirated, water cooled
• Engine displacement: 3.3 litres
• Governor: Mechanical, ISO 8528 class G2
• Engine speed: 1500 rpm
• Power factor: 1.0 at 230 V, 50 Hz
• Filters: Spin-on, full-flow oil filter; replaceable element fuel and air filters
• Alternator model: LCB1514J
• Alternator insulation and protection: Class H insulation, IP23
• Excitation and AVR: Shunt excitation, AVR R220
• Voltage regulation: ±1.0% at steady state
• Recommended fuel: Class A2 diesel or BS EN 590
• Engine oil: API CG4 / CH4 15W-40

Part of the CAT range at Gen4Sale.
