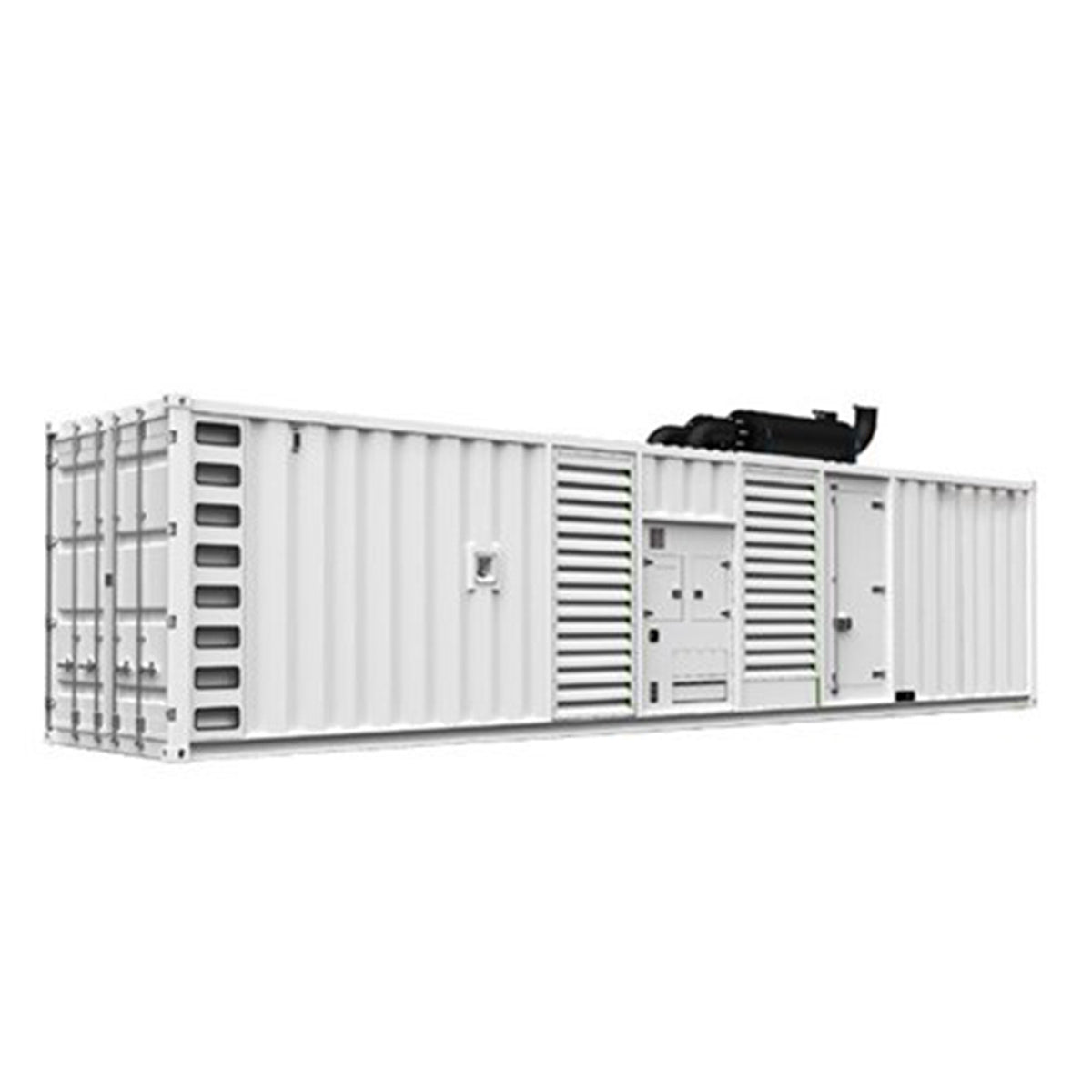

2500kVA Perkins Diesel Generator GP2250S

The GP2250S is a three phase diesel generator rated at 2250 kVA (1800 kW) Prime Power and 2500 kVA (2000 kW) Standby Power at 415V and 50Hz. It is powered by a Perkins 4016-61TRG3, a 16 cylinder, 61.1 litre turbocharged and aftercooled diesel running at 1500 rpm, and the alternator is a Leroy Somer LSA53.2, brushless with an AVR.

Key features

• The high ambient cooling package is there for sites where the air temperature is high.
• Prime Power covers continuous operation at variable load at an average 75% load factor, with 10% overload for 1 hour in any 12, and Standby Power covers emergency supply at an average 85% load factor, with no overload capability and a limit of 400 hours a year, so size to the duty.
• The alternator is brushless with Class H insulation and harmonic distortion under 5%, which suits electronic loads as well as motors.
• An electronic governor responds to load changes to keep engine speed, and so frequency, steady.
• A four pole circuit breaker switches the neutral along with the three phases.
• A battery charger and isolator keep the starting battery charged between runs.

Fuel use is 470 L/h at 100% load, 344 L/h at 75% and 246 L/h at 50%, so a long run needs a planned fuel supply. The engine holds 237 litres of oil and 500 litres of coolant. A DeepSea 7420 MKII controller manages the set.

What it will run

At Standby Power of 2500 kVA the set supplies about 3480 A per phase at 415V, and about 3130 A at Prime Power of 2250 kVA. That typically suits a site's combined load of motors, pumps, compressors, chillers and building services shared across the three phases. Motor starting is the first check: a motor can draw several times its running current as it starts, and a soft starter or drive reduces that surge. Compliance plates give each machine's current. An engineer should assess the site's load schedule, including starting and step loads, and a licensed electrician should design and install the connection to the switchgear, including any changeover or transfer arrangement. Send us your load list and we will help you size the set.

The GP2250S suits industrial and processing plants, mining and construction projects, data centres and large commercial developments that need standby power or a prime supply for a varying load.

Price on application. A set of this size is quoted to your configuration, any extras and the installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Approx. 2500 kVA rated output
• Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open (GP2250) and silenced (GP2250S) configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Comes with a local load test certificate and factory warranty
• Weight: 29900 kg
• Dimensions (L x W x H): 1219 x 243 x 289 cm
• Prime Power: 2250 kVA / 1800 kW
• Standby Power: 2500 kVA / 2000 kW
• Phase, voltage and frequency: Three phase, 415V, 50Hz
• Engine details: Perkins 4016-61TRG3, 16 cylinders, 61.1 L, turbocharged and aftercooled, electronic governor
• Alternator: Leroy Somer LSA53.2, brushless, AVR, Class H insulation
• Harmonic distortion: Less than 5%
• Circuit breaker: Four pole
• Controller: DeepSea 7420 MKII
• Fuel consumption: 470 L/h at 100% load, 344 L/h at 75% load, 246 L/h at 50% load
• Oil and coolant capacity: Oil 237 L, coolant 500 L
• Cooling: High ambient cooling package
• Also fitted: Battery charger and isolator, heavy-duty skid base

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
