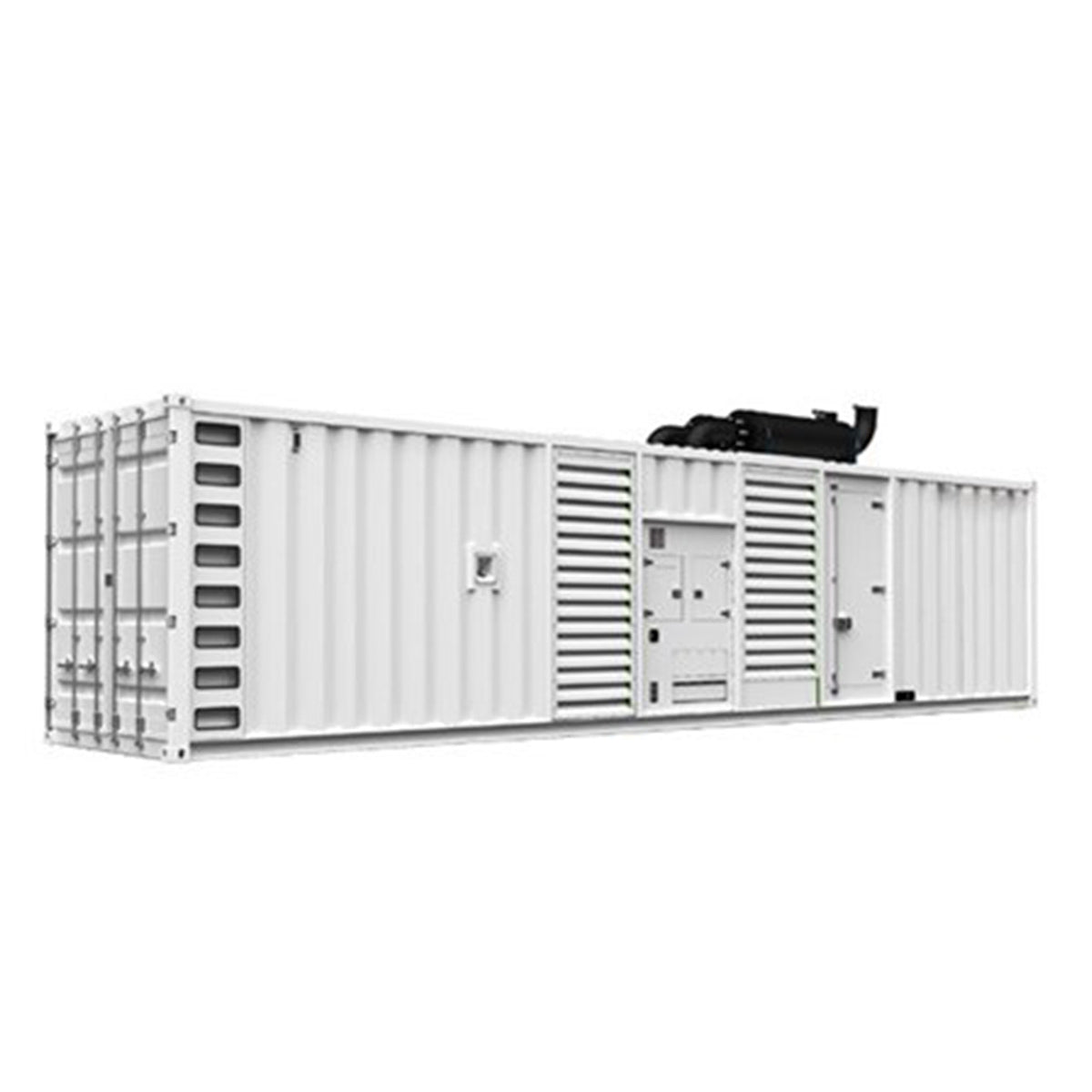

2200kVA Cummins Diesel Generator GC2200S

The GC2200S is a three phase diesel generator rated at 2000 kVA (1600 kW) Prime Power and 2200 kVA (1760 kW) Standby Power at 415V and 50Hz. It is built around a Cummins QSK60G17, a 16 cylinder turbocharged and aftercooled diesel running at 1500 rpm, with a Stamford Pi734G brushless alternator and an AVR.

Key features

• A bunded 2000 litre fuel tank gives a 6 hour run time at 75% load, which sets how often a long outage needs refuelling.
• The canopy is galvanised and powder-coated, a finish that resists corrosion.
• Class H insulation and harmonic distortion under 5% in the alternator suit electronic loads as well as motors.
• Frequency stays steady as the load changes because an electronic governor holds engine speed.
• A four pole circuit breaker isolates the neutral as well as the three phases.
• A battery charger and isolator keep the starting battery charged between runs and let it be isolated when idle.

Fuel use is 419 L/h at 100% load, 331 L/h at 75% and 223 L/h at 50%. The silenced canopy is rated at 87 dB(A) at 7 m. A DeepSea 7420 MKII controller manages the set, and the engine holds 181 litres of oil and 350 litres of coolant.

What it will run

Standby Power of 2200 kVA works out at about 3060 A per phase at 415V, and Prime Power of 2000 kVA at about 2780 A. Use the Standby Power figure for emergency cover and the Prime Power figure for a set that will run regularly on a varying load. At this scale the site's load schedule drives the choice: the running load, the largest motors, how each one starts and the order in which loads come on. Motors can draw several times their running current as they start, and a soft starter or drive reduces that surge. Compliance plates give each machine's current. An engineer should assess the schedule, and a licensed electrician should design and install the connection to the site's switchgear, including any changeover or transfer arrangement. Send us your load list and we will help you size the set.

The GC2200S suits large industrial and processing plants, mine and construction sites, remote power projects and big commercial buildings that need standby power or a supply for a varying load.

Price on application. A set of this size is quoted to your configuration, any extras and the installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Approx. 2200 kVA rated output
• Cummins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open (GC2200) and silenced (GC2200S) configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 18200 kg
• Dimensions (L x W x H): 1219 x 243 x 289 cm
• Prime Power: 2000 kVA / 1600 kW
• Standby Power: 2200 kVA / 1760 kW
• Phase, voltage and frequency: Three phase, 415V, 50Hz
• Engine details: Cummins QSK60G17, 16 cylinders, turbocharged and aftercooled, electronic governor
• Alternator: Stamford Pi734G, brushless, AVR, Class H insulation
• Harmonic distortion: Under 5%
• Circuit breaker: Four pole
• Controller: DeepSea 7420 MKII
• Fuel tank: 2000 L, bunded
• Fuel consumption: 419 L/h at 100% load, 331 L/h at 75% load, 223 L/h at 50% load
• Run time at 75% load: 6 hours
• Noise: 87 dB(A) at 7 m (silenced canopy)

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
