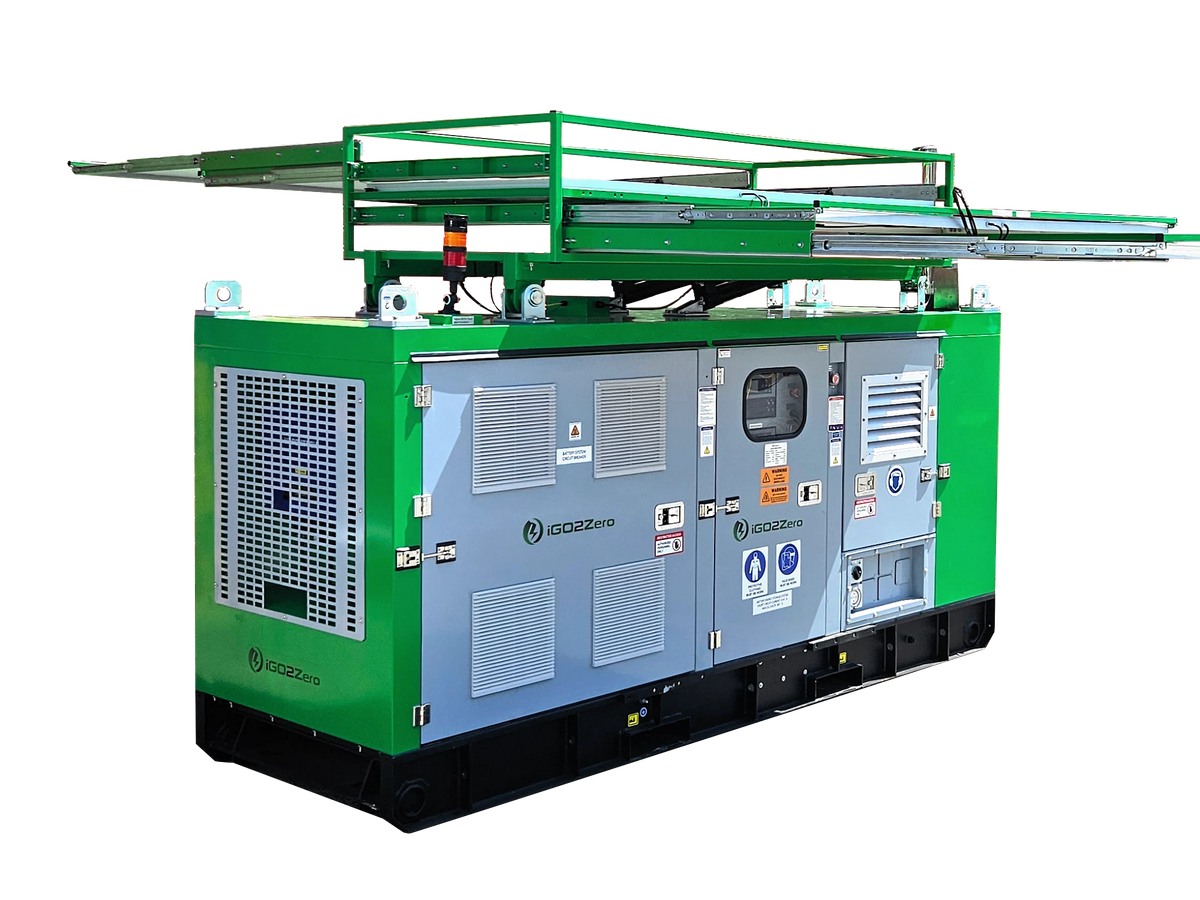

20kVA iGo2Zero Hybrid Generator PH20/30

The iGo2Zero PH20/30 is a 20kVA three phase hybrid generator (415V, 50Hz) that combines a Yanmar 4TNV84 diesel generator, 30kWh of LiFePO4 battery storage and 5 x 460W solar panels in one integrated system. The Yanmar is a naturally aspirated, four cylinder, 1.995 litre engine running at 1500 rpm with a mechanical governor, driving a Leroy Somer TAL-A40-F brushless alternator with AVR. A DeepSea 7420 controller manages the unit, and a four pole circuit breaker provides protection.

Key features

• Solar, diesel generator and battery storage come together in one unit, so a commercial site has a single hybrid system to plan around.
• The battery and the solar panels (2,300W in total) supply part of the load, so the diesel generator runs for fewer hours.
• The 30kWh LiFePO4 (lithium iron phosphate) battery uses 5.12kWh, 51.2V packs rated for at least 6,000 cycles at 80% depth of discharge.
• The brushless alternator has an AVR (automatic voltage regulator) to hold output voltage steady, and harmonic distortion is less than 5%.
• A visualised smart control system and remote monitoring show how the system is operating.
• Power and capacity are expandable and the system accepts customisation, so the configuration can be matched to the application.

The 100 litre fuel tank gives about 27 hours of run time at 75% load, working from the 3.75 L/hr consumption at that load, and an external fuel connection is provided. The unit has a silenced canopy.

What it will run

A 20kVA hybrid system is sized by the site's loads rather than by the kVA figure alone. The rating is apparent power, so the usable power in kW depends on the power factor of the loads. List everything that runs at once, allow for the surge that motors, pumps and compressors draw when they start, and work out how many hours each item runs per day, because the battery's stored energy and the diesel's fuel set how long the system keeps going. Have an electrician or engineer assess the site; the connection to the switchboard must be made by a licensed electrician. Send us your load list and we will help you size the system.

The PH20/30 suits stationary commercial sites that rely on a diesel generator today, such as remote worksites, farms and depots, where solar and battery storage can reduce generator running time.

Price on application. The system can be customised and expanded to suit the site, so we quote each one. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Combines solar power, diesel generator and battery storage in one unit
• Visualised smart control system to monitor status
• Lithium Iron Phosphate (LiFePO4) battery storage
• Excellent cooling system for heat dissipation
• Power and capacity expandable to suit different needs
• Simple operation and easy maintenance
• Accepts customer customisation
• Weight: 2339 kg
• Dimensions (L x W x H): 306 x 117.4 x 218.8 cm
• Rated output: 20 kVA
• Phase and voltage: Three phase, 415 V, 50 Hz
• Engine: Yanmar 4TNV84 diesel, 4 cylinders, 1.995 L, naturally aspirated, 1500 rpm
• Alternator: Leroy Somer TAL-A40-F, brushless with AVR
• Battery storage: 30 kWh LiFePO4
• Solar capacity: 5 x 460 W panels
• Fuel tank: 100 litres
• Fuel consumption: 3.75 L/hr at 75% load
• Controller: DeepSea 7420
• Circuit breaker: Four pole

Part of the iGo2Zero range at Gen4Sale.
