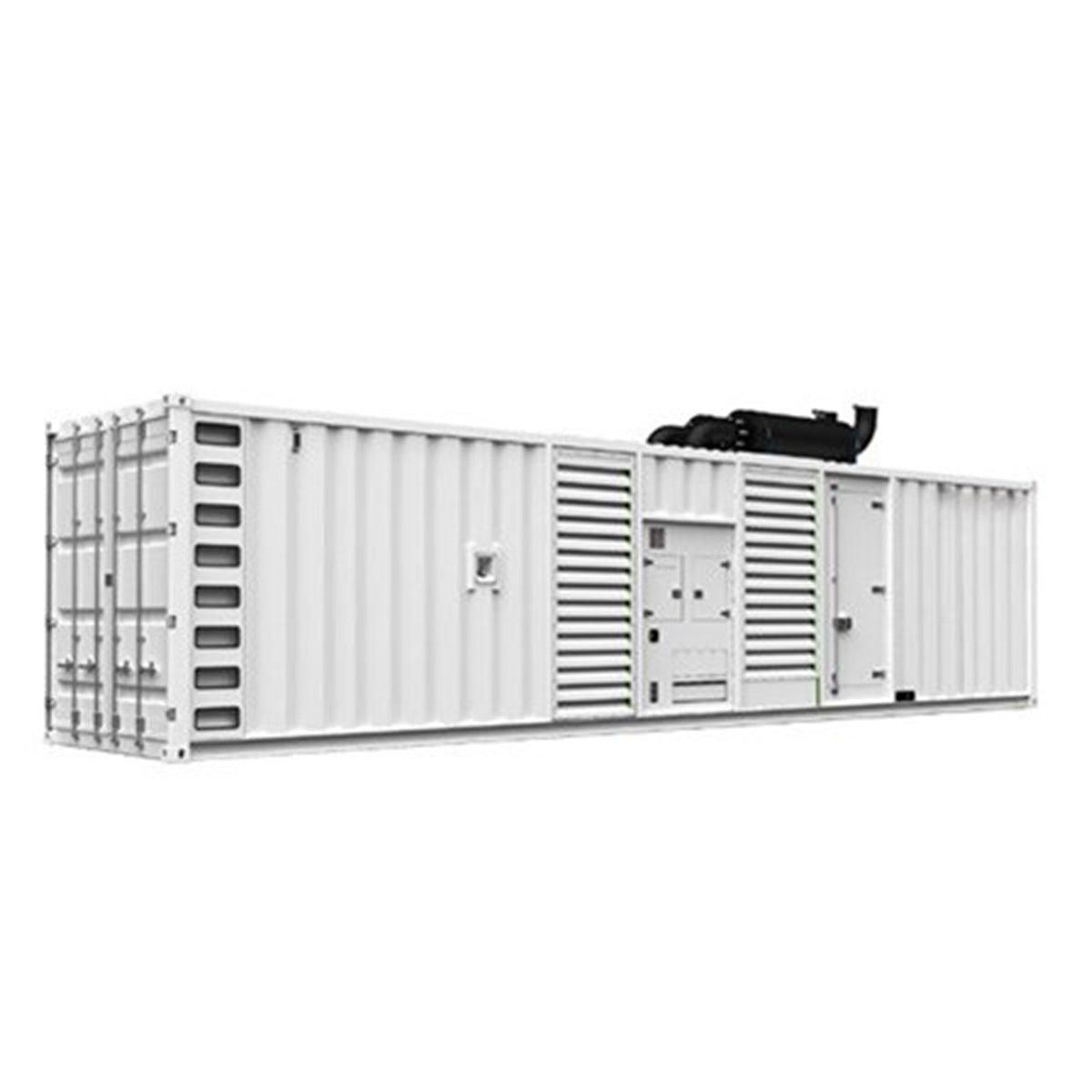

2063kVA Cummins Diesel Generator GC1875S

The GC1875S is a three phase diesel generator rated at 1875 kVA (1500 kW) Prime Power and 2063 kVA (1650 kW) Standby Power at 415V and 50Hz. Its engine is a Cummins QSK60G3, a 16 cylinder, 60 litre turbocharged and aftercooled diesel running at 1500 rpm, and the alternator is a Stamford Pi734F, brushless with an AVR.

Key features

• A bunded 2000 litre fuel tank gives a 7 hour run time at 75% load, and the bund contains any leak from the tank.
• Standby Power is an emergency supply rating with an average 85% load factor, no overload capability and a limit of 400 hours a year, while Prime Power allows variable load for unlimited hours a year at an average 75% load factor with 10% overload for 1 hour in any 12, so choose the rating that matches the duty.
• A galvanised, powder-coated canopy protects the set and resists corrosion.
• Class H insulation and harmonic distortion under 5% in the alternator suit electronic loads as well as motors.
• An electronic governor keeps engine speed, and so frequency, steady as the load changes.
• A battery charger and isolator keep the starting battery charged between runs.

Fuel use is 371 L/h at 100% load, 276 L/h at 75% and 196 L/h at 50%. The silenced canopy is rated at 87 dB(A) at 7 m. A DeepSea 7420 MKII controller manages the set, and the engine holds 261 litres of oil and 410 litres of coolant.

What it will run

Standby Power of 2063 kVA works out at about 2870 A per phase at 415V, and Prime Power of 1875 kVA at about 2610 A. Sizing starts with the site's load schedule: the running load, the largest motors, how each one starts and the order in which loads come on. Motors can draw several times their running current as they start, and a soft starter or drive reduces that surge. Compliance plates give each machine's current. An engineer should assess the schedule, and a licensed electrician should design and install the connection to the site's switchgear, including any changeover or transfer arrangement. Send us your load list and we will help you size the set.

The GC1875S suits remote power projects, mining and construction support, industrial and processing plants and large commercial buildings that need standby power or a supply for a varying load.

Price on application. A set of this size is quoted to your configuration, any extras and the installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Approx. 2063 kVA rated output
• Cummins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open (GC1875) and silenced (GC1875S) configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 29900 kg
• Dimensions (L x W x H): 1219 x 243 x 289 cm
• Prime Power: 1875 kVA / 1500 kW
• Standby Power: 2063 kVA / 1650 kW
• Phase, voltage and frequency: Three phase, 415V, 50Hz
• Engine details: Cummins QSK60G3, 16 cylinders, 60 L, turbocharged and aftercooled, electronic governor
• Alternator: Stamford Pi734F, brushless, AVR, Class H insulation
• Harmonic distortion: Less than 5%
• Circuit breaker: Four pole
• Controller: DeepSea 7420 MKII
• Fuel tank: 2000 L, bunded
• Fuel consumption: 371 L/h at 100% load, 276 L/h at 75% load, 196 L/h at 50% load
• Run time at 75% load: 7 hours
• Noise: 87 dB(A) at 7 m (silenced canopy)

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
