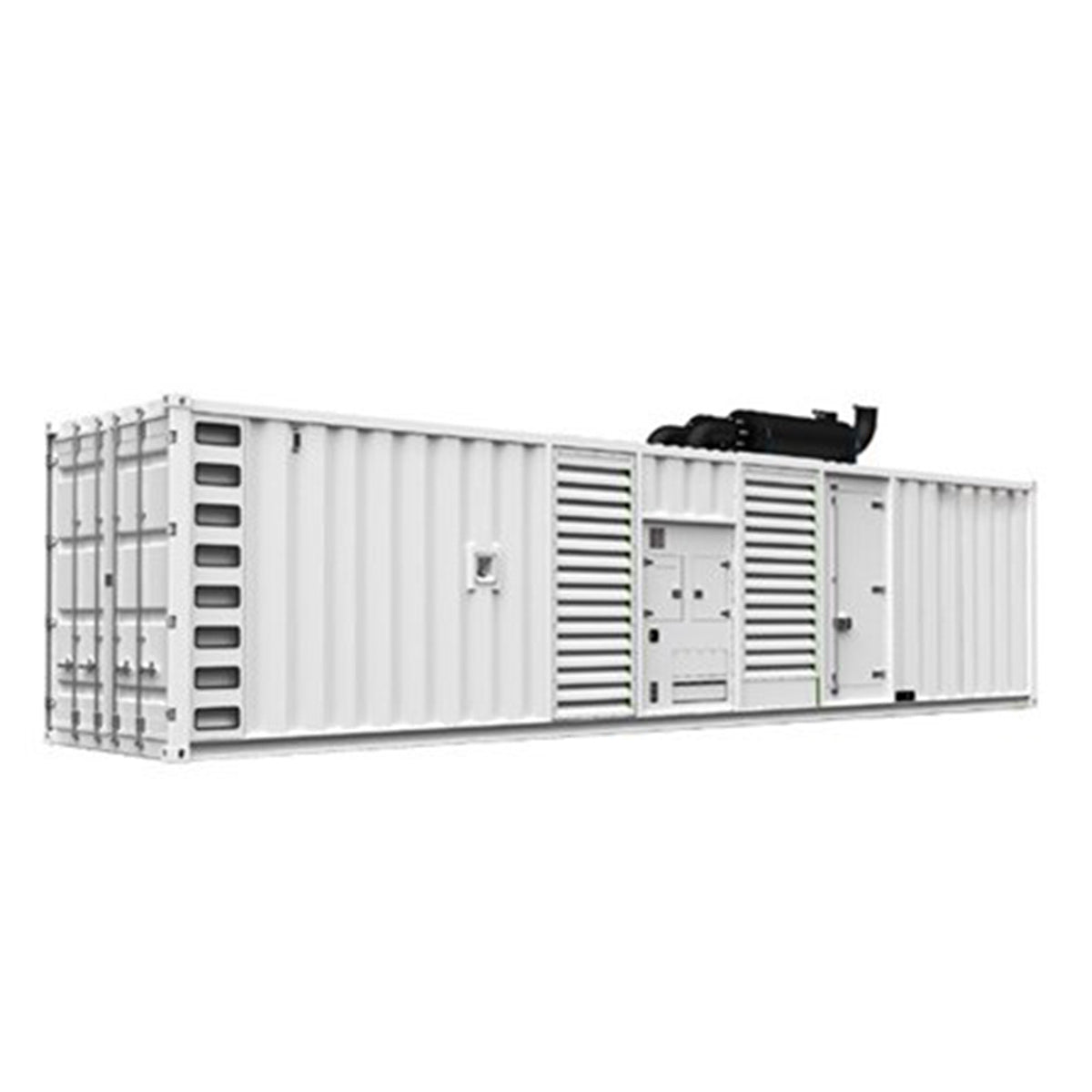

2200kVA Perkins Diesel Generator GP2000S

The GP2000S is a three phase diesel generator rated at 2000 kVA (1600 kW) Prime Power and 2200 kVA (1760 kW) Standby Power at 415V and 50Hz. Its Perkins 4016-TAG2A is a 16 cylinder, 61.1 litre turbocharged and aftercooled diesel running at 1500 rpm, coupled to a Leroy Somer LSA51.2M60 brushless alternator with an AVR.

Key features

• Standby Power is rated for emergency supply at an average 85% load factor, with no overload capability and a limit of 400 hours a year; Prime Power is rated for variable load for unlimited hours a year at an average 75% load factor, with 10% overload for 1 hour in any 12.
• A high ambient cooling package suits sites with high air temperatures.
• Class H insulation and harmonic distortion under 5% in the alternator suit electronic loads as well as motors.
• A four pole circuit breaker isolates the neutral as well as the three phases.
• A battery charger and isolator keep the starting battery charged and let it be disconnected when needed.
• The electronic governor keeps frequency steady by holding engine speed as the load changes.

Fuel use is 434 L/h at 100% load, 316 L/h at 75% and 210 L/h at 50%. The engine holds 214 litres of oil and 316 litres of coolant, and a DeepSea 7420 MKII controller manages the set.

What it will run

Standby Power of 2200 kVA works out at about 3060 A per phase at 415V, and Prime Power of 2000 kVA at about 2780 A. That typically suits the load of a large plant or building complex, with motors, pumps, compressors, refrigeration, lighting and air conditioning shared across the three phases. The largest motor sets the starting demand, since a motor can draw several times its running current as it starts, and a soft starter or drive reduces that surge. Check each machine's compliance plate for its current. An engineer should assess the site's load schedule, and a licensed electrician should design and install the connection to the switchgear, including any changeover or transfer arrangement. Send us your load list and we will help you size the set.

The GP2000S suits large industrial plants, mining and construction projects, processing facilities, water and wastewater works and commercial developments that need standby power or a prime supply for a varying load.

Price on application. A set of this size is quoted to your configuration, any extras and the installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 2200 kVA standby / 2000 kVA prime output
• Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open (GP2000) and silenced (GP2000S) configurations
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 13198 kg
• Dimensions (L x W x H): 1219 x 243 x 289 cm
• Prime Power: 2000 kVA / 1600 kW
• Standby Power: 2200 kVA / 1760 kW
• Phase, voltage and frequency: Three phase, 415V, 50Hz
• Engine details: Perkins 4016-TAG2A, 16 cylinders, 61.1 L, turbocharged and aftercooled, electronic governor
• Alternator: Leroy Somer LSA51.2M60, brushless, AVR, Class H insulation
• Harmonic distortion: Less than 5%
• Circuit breaker: Four pole
• Controller: DeepSea 7420 MKII
• Fuel consumption: 434 L/h at 100% load, 316 L/h at 75% load, 210 L/h at 50% load
• Oil and coolant capacity: Oil 214 L, coolant 316 L
• Cooling: High ambient cooling package
• Also fitted: Battery charger and isolator, heavy-duty skid base

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
