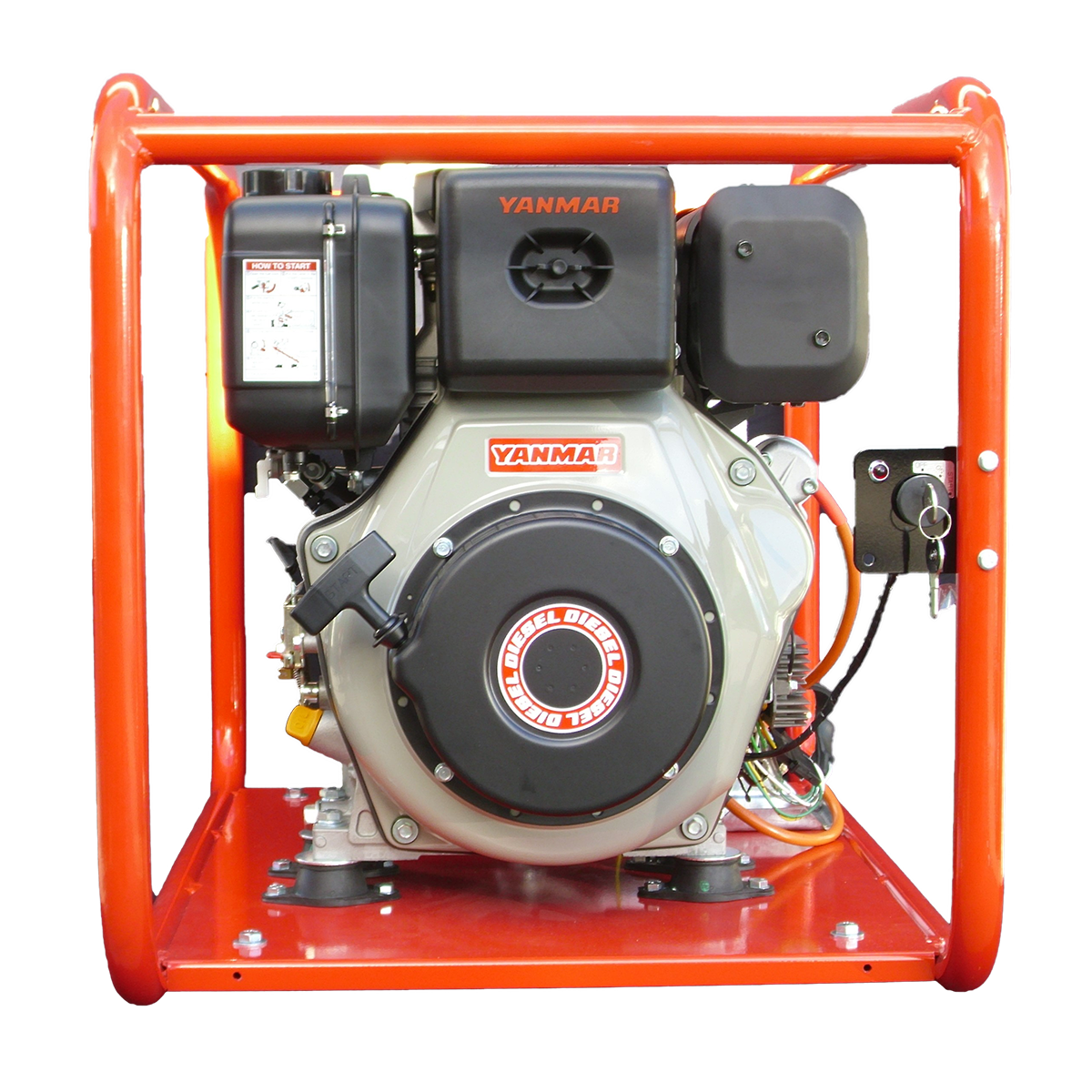

2.2kVA Yanmar Diesel Generator GYD2000E

The GYD2000E is a 2.2kVA (2kW) Yanmar powered diesel generator, single phase at 240V and 50Hz. Its Yanmar L48AE-DEG is an overhead valve, single cylinder diesel of 296cc running at 3000 rpm, with electric start. The alternator is an AC synchronous brushless type with Class H insulation, and the outlets are two switched 10A GPOs with thermal overload.

Key features

• Electric start makes starting straightforward.
• A brushless AC synchronous alternator with harmonic distortion of less than 5% suits sensitive electronics.
• Two switched 10A 240V GPOs with thermal overload give you two protected outlets for tools and appliances.
• A heavy duty roll frame guards the set against knocks.
• The engine carries a 2 year limited warranty.

The 2.5 litre tank gives 3.12 hours at 100% load and 4.1 hours at 75% load, so it suits short outages and intermittent work. Noise is 80 dB(A) at 7 m. Engine oil capacity is 1.1 litres.

What it will run

At 2kW (about 8.3A at 240V), the GYD2000E typically runs lights, a fridge or freezer, a TV, device chargers and small power tools, with the combined load kept under 2kW. The generator sets the limit, not the two 10A outlets: together they can supply no more than about 8.3A. Motors in compressors, pumps and power tools draw a surge at start, so read each appliance's compliance plate and allow for that surge before you rely on the set. A home connection should go through an inlet and changeover switch fitted by a licensed electrician. If you are unsure, send us your load list and we will help with sizing.

The GYD2000E suits job sites, workshops, small businesses and homes that need backup power during an outage or power for intermittent work. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Duty rating: Standby only, not rated for prime or continuous power
• Power output: 2kW
• Engine: Yanmar L48 AE-DEG
• Phase: Single phase
• Fuel tank: 2.5 litres
• Run time: 3.12 hrs @ 100%, 4.1hrs @75%
• Noise level: 80 dB(A) @7m
• Weight: 54 kg
• Dimensions (L x W x H): 76 x 50 x 56 cm
• Apparent power: 2.2kVA
• Voltage and frequency: 240V, 50Hz
• Engine type: O.H.V. single cylinder, 296cc
• Engine speed: 3000 rpm
• Starting: Electric start
• Alternator: AC synchronous, brushless, Class H insulation
• Harmonic distortion: Less than 5%
• Outlets: 2 x 10A 240V GPO, switched, with thermal overload
• Engine oil capacity: 1.1 L
• Frame: Heavy duty roll frame
• Warranty: 2 year limited engine warranty

Part of the Yanmar range at Gen4Sale.
