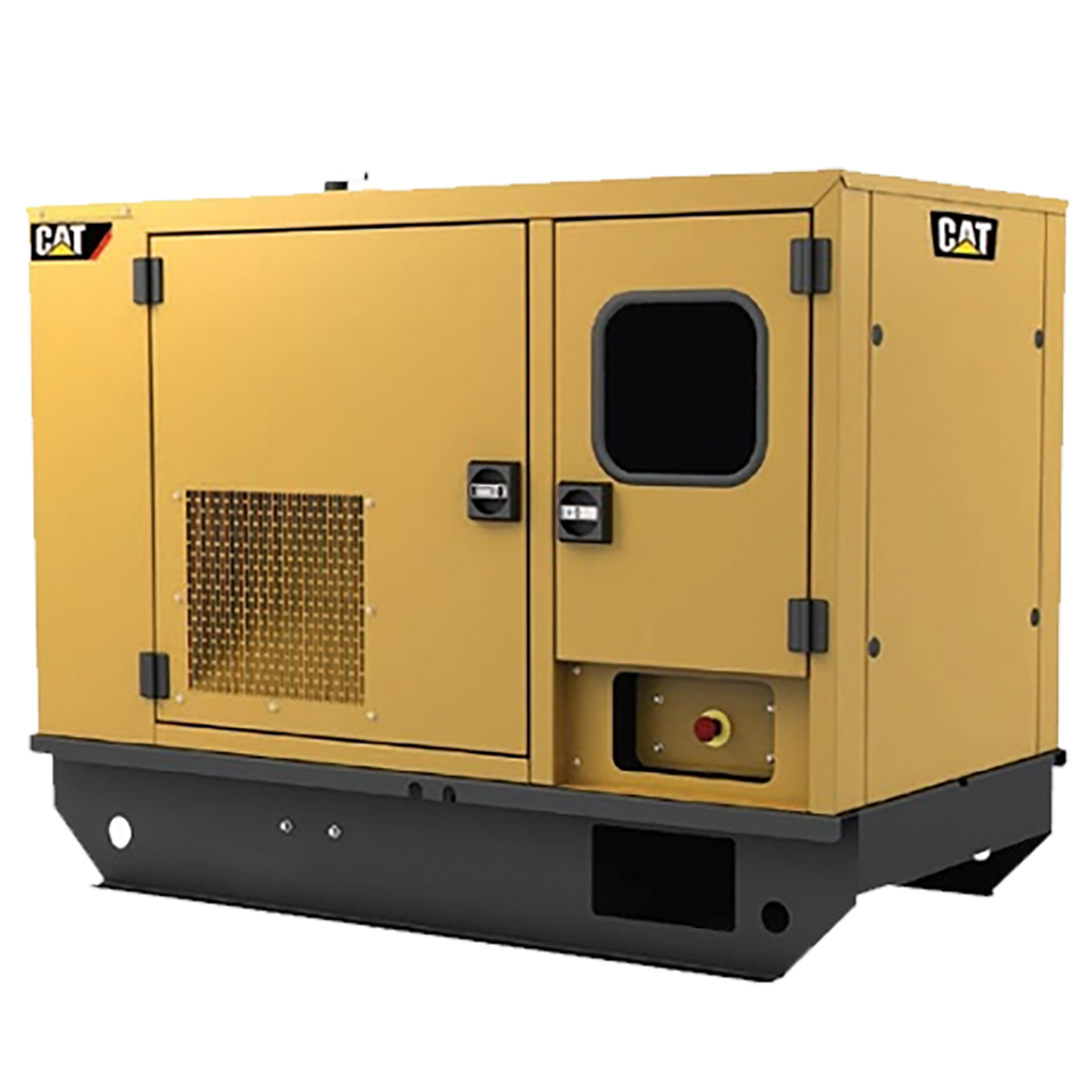

18kVA CAT Diesel Generator DE18 ENCL

The DE18 is a stationary, three phase diesel generator set with an output of 18 kVA, which is 14.4 kW at a power factor of 0.8. A Cat C2.2 engine drives a Leroy Somer alternator, and the set is operated from an EMCP 4.1 control panel.

Key features

• The Cat C2.2 is a naturally aspirated, water cooled, four-cylinder, four-stroke diesel of 2.2 litres with a compression ratio of 23.3:1.
• Engine speed is set by a mechanical governor at 1500 rpm for 50 Hz output, so no electronic speed control is involved.
• The alternator uses shunt excitation and has an IP23 rating, which covers finger-sized objects and water spray.
• Steady state voltage regulation of plus or minus 1.0% keeps output voltage close to its set point under a steady load.
• The cooling system is designed for ambient conditions up to 50°C, which suits hot-climate sites.

Noise is 65.4 dBA at 7 m. The engine runs on Class A2 diesel or BS EN 590 fuel and uses API CH4 15W-40 engine oil.

What it will run

An 18 kVA three phase set is selected from the site load, not the nameplate. List the three phase motors and the single phase circuits, spread the single phase loads evenly across the phases, and allow for motor starting: pumps, compressors and refrigeration plant draw several times their running current as they start, so start the largest first and add the rest in steps. Use the compliance plate on each item for its running and starting figures. An electrician or engineer should assess the load before the set is chosen, and a licensed electrician must make the connection to your switchboard. Send us your load list and we will help with sizing.

The DE18 suits standby power for three phase commercial and industrial sites: workshops, pumping, refrigeration, farm infrastructure and plant rooms.

Price on application. Stationary diesel sets are quoted individually because configuration, options and site requirements differ from job to job. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 18kVA / 14.4kW
• Prime output: 16.5kVA / 13.2kW
• Engine: CAT Diesel Engine C2.2
• Alternator: Leroy Somer
• Phase: Three phase
• Fuel tank: 55 litres
• Run time: 49.7 Hour Run @ 75% Load
• Noise level: 65.4 dBA @ 7m
• Dimensions (L x W x H): 170.4 x 87.6 x 126.8 cm
• Weight: 706 kg
• Engine configuration: 4 cylinder in-line, 4-stroke, naturally aspirated, water cooled
• Engine displacement: 2.2 litres
• Compression ratio: 23.3:1
• Governor: Mechanical
• Engine speed: 1500 rpm at 50 Hz
• Control panel: EMCP 4.1
• Alternator model: LC1114H (LC Series)
• Alternator excitation and protection: Shunt excitation, IP23
• Power factor: 0.8
• Voltage regulation: ±1.0% at steady state
• Recommended fuel: Class A2 diesel or BS EN 590
• Engine oil: API CH4 15W-40
