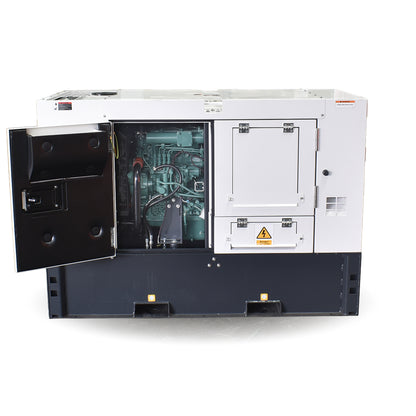

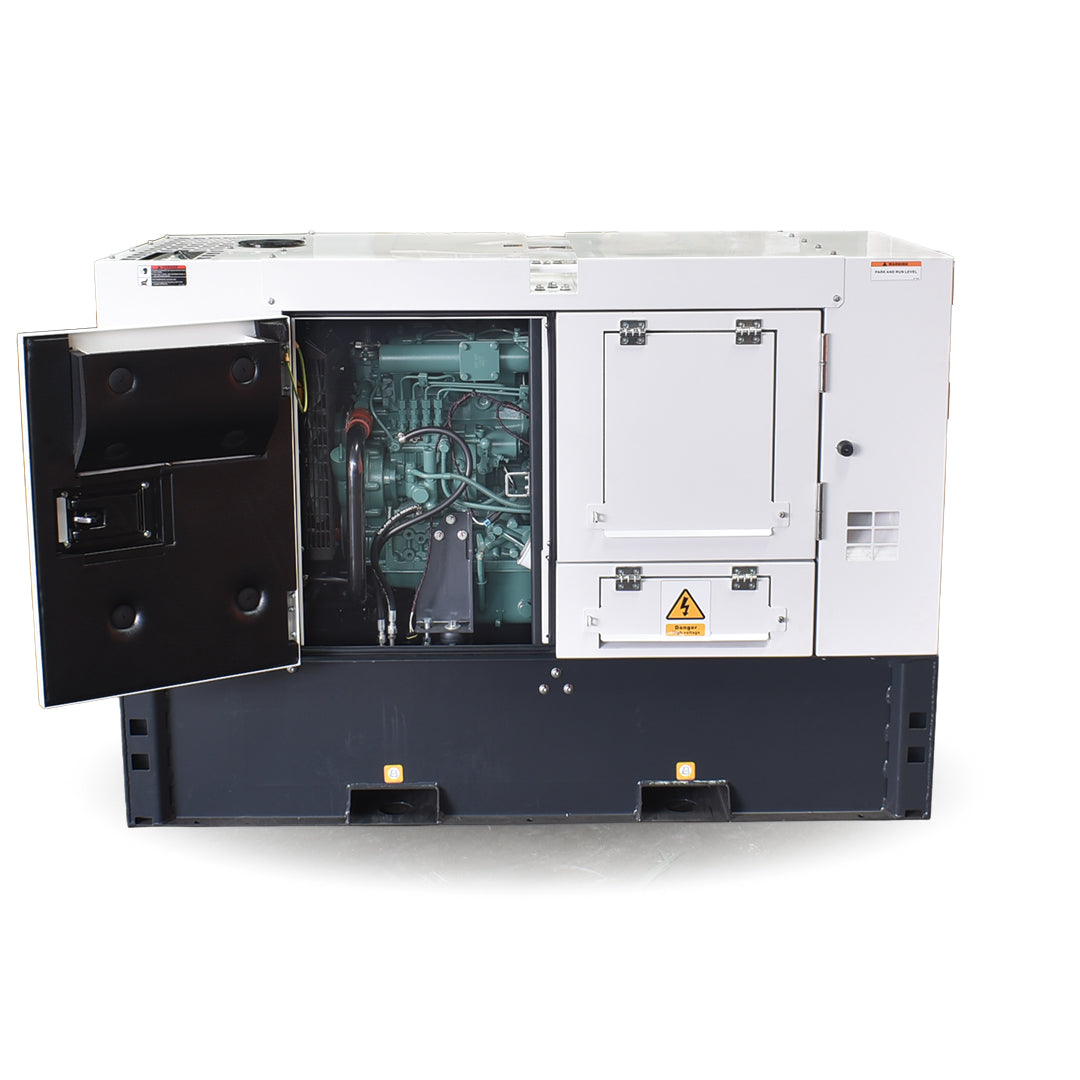

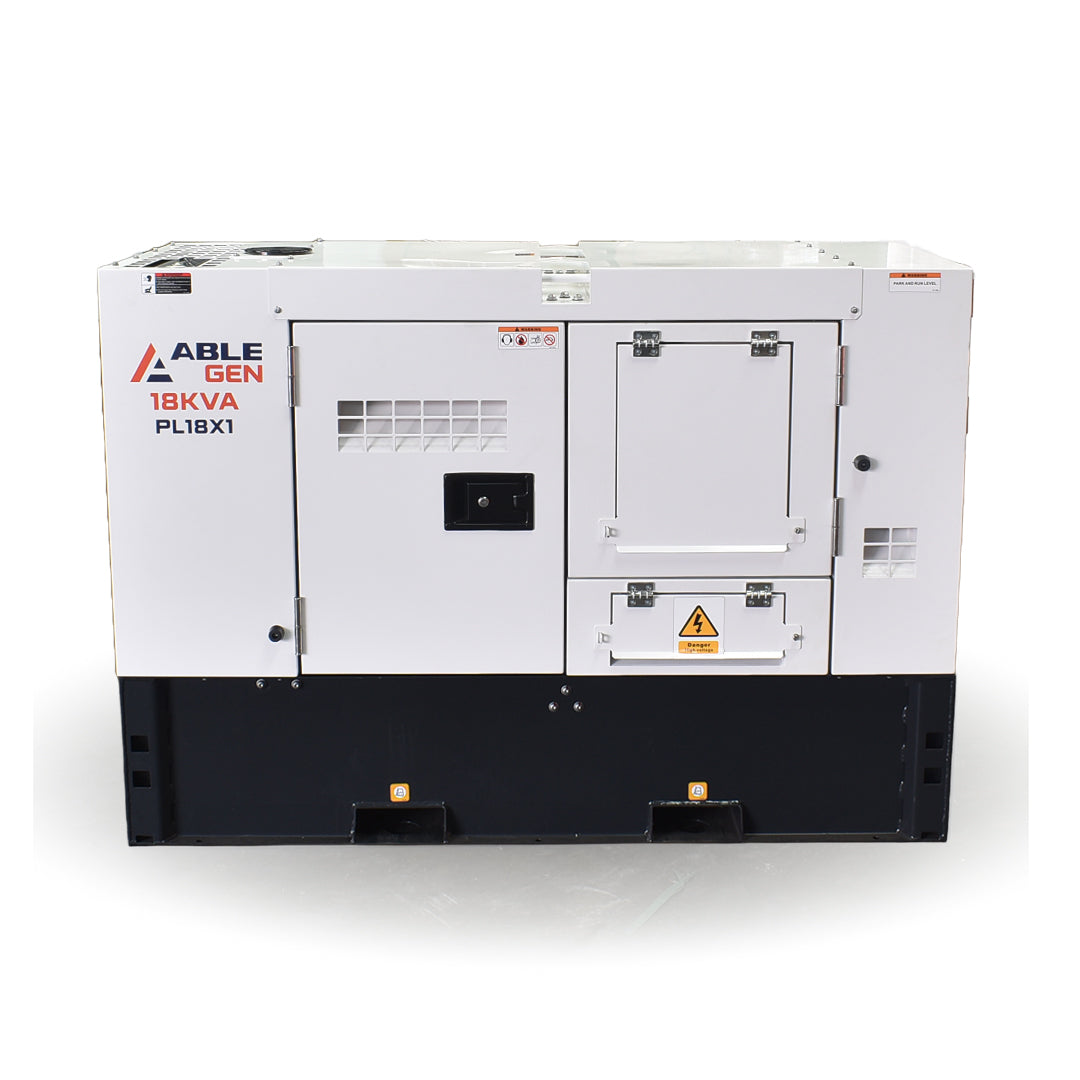

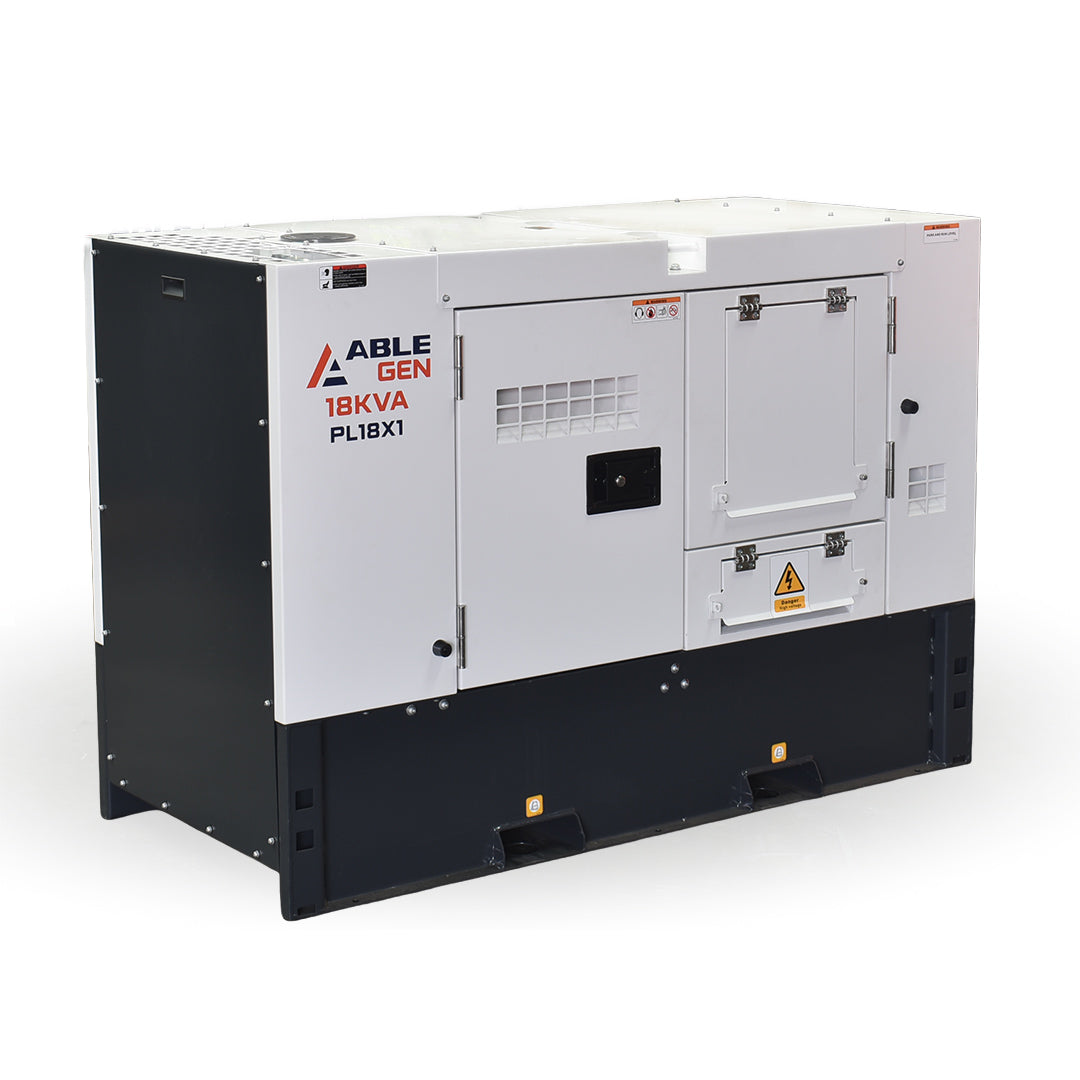

18kVA ABLE Diesel Generator PL18X1

The PL18X1 is an 18kVA single phase diesel generator rated 18kVA (18kW) prime (PRP) and 20kVA (20kW) standby (ESP) at 240V, 50Hz and a power factor of 1.0. Power comes from a FAWDE 4DW91-29D, a four cylinder, water-cooled diesel turning at 1500 rpm, which drives a four-pole brushless synchronous alternator with AVR. The set starts electrically at 12 volts, the battery is included, and protection comes from an IP67-enclosed RCD and over current protection.

Key features

• The engine is a naturally aspirated 2.54 litre four-cylinder, so there is no turbocharger in the build.
• The alternator is brushless, with no brushes to wear, and its AVR holds voltage within ±0.5% as the load changes.
• The ComAp AMF controller accepts a two-wire remote start, so a switch or external controller can start the set.
• The canopy is sound deadened and finished in a weather-resistant powder coat, with stainless steel fittings and a lock.
• Three 15A outlets are rated IP66 (dust tight and protected against powerful water jets), and hardwire terminals are fitted for a fixed connection.
• Mine site ready bunding is specified for sites that need fuel spills contained.
• The set is specified for ambient temperatures from -25°C to 45°C (a coolant heater is needed below 5°C), humidity under 80% and altitude under 1000 m.

The tank holds 125 litres and noise is 65 dB(A) at 7 m. The design standards are CE, ISO 8528-5:2005, AS 3000-2018 and AS 3010-2017.

What it will run

At 240V the PL18X1 has a rated current of about 75A. Typically that suits a workshop with several machines, a farm with pumps and outbuildings, a single phase commercial premises, or the essential circuits of a home. Starting current is the catch: a pump, compressor or air conditioner can draw several times its running current as it starts, so size around the largest motor. Check each appliance's compliance plate for its running and starting power, then add the figures up. Prime (PRP) allows unlimited hours on a variable load, with an average load factor below 70% per 24 hours and 10% overload for 1 hour in every 12. Standby (ESP) is limited to 500 hours a year, with an average load factor below 80% per 24 hours and no overload. Home backup needs an inlet and changeover switch fitted by a licensed electrician. If you send us your load list, we will help you size the set.

The PL18X1 suits farms, workshops, single phase commercial premises, small industrial sites and home backup. It can cover a mains outage as standby power, or run as prime power on a variable load.

Key specifications

• Output: 18kVA (18kW) prime, 20kVA (20kW) standby @ 1.0PF
• Rated current: 75 Amps (prime)
• Engine: FAWDE 4DW91-29D four-cylinder diesel, 1500rpm, water cooled
• Alternator: Single phase 4-pole brushless synchronous alternator with AVR
• Controller: ComAp AMF20, two-wire remote start
• Start type: 12 volt electric, battery included
• Phase / voltage: Single phase, 240V, 50Hz
• Fuel: Diesel
• Fuel tank: 125 L
• Fuel use: 4.5 L/hr at prime load
• Run time: 27 hrs continuous at prime load
• Noise level: 65 dB(A) @ 7m
• Outlets: 3 x 15 Amp IP66 outlets
• Hardwire terminals: Yes
• Protection: RCD to Australian Standards (IP67 enclosed), over current protection
• Canopy: Lockable, sound deadened, weather-resistant powder coat, stainless steel fittings
• Mine spec: Mine site ready bunding
• Dimensions (L x W x H): 167 x 76 x 117 cm
• Weight: 866 kg
• Warranty: 12 months or 1,000 hours
• Prime (PRP) limits: Variable load, unlimited hours, average load factor below 70% per 24 hours, 10% overload for 1 hour in every 12
• Standby (ESP) limits: 500 hours a year, up to 300 hours at a time, average load factor below 80% per 24 hours, no overload
• Engine configuration: 4 cylinder, 90 x 100 mm bore and stroke, 2.54 L, compression ratio 17, naturally aspirated
• Engine output: 21.0 kWm prime, 23.0 kWm standby
• Engine capacities: Oil 8.0 L, coolant 8.0 L
• Alternator model: PL1G-1
• Voltage regulation: ±0.5%
• Protection class: IP54
• Operating conditions: Ambient -25 to 45°C (coolant heater needed below 5°C), humidity below 80%, altitude below 1000 m
• Rating test conditions: 25°C ambient, 100 m altitude, 30% relative humidity
• Design standards: CE, ISO 8528-5:2005, AS 3000-2018, AS 3010-2017
