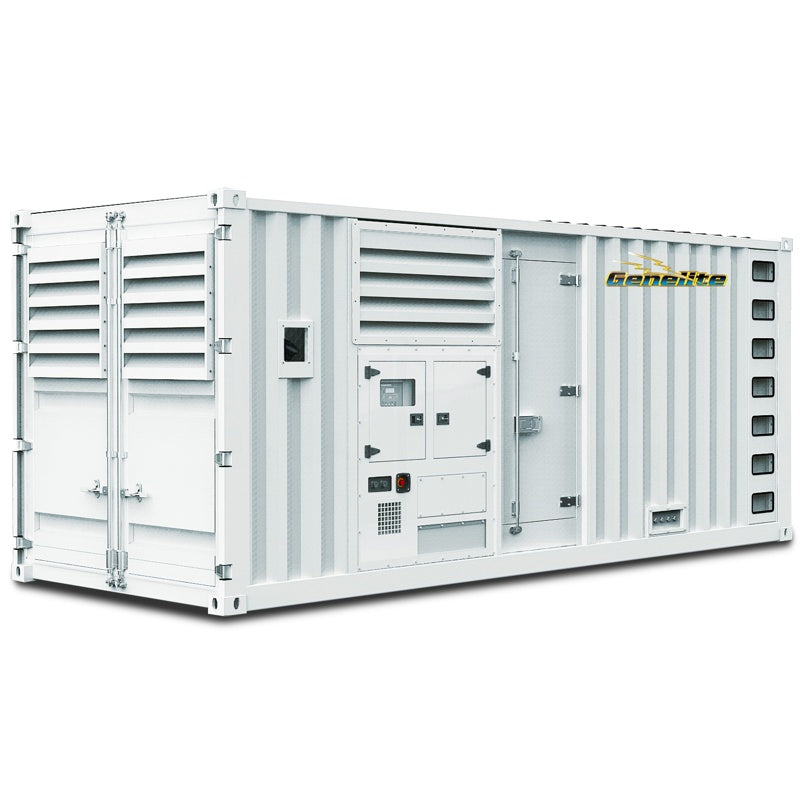

1925kVA Perkins Diesel Generator GP1750

The GP1750 is a heavy-duty three phase diesel generator rated at 1750 kVA (1400 kW) Prime Power at 415V and 50Hz. It is powered by a Perkins 4016-TAG1A, a 16 cylinder, 61.1 litre turbocharged and aftercooled diesel running at 1500 rpm, and it drives a Leroy Somer LSA51.2S55 brushless alternator with an AVR.

Key features

• A high ambient cooling package is fitted for sites where the air temperature is high.
• Size the set to the duty it will do: Prime Power covers continuous operation at variable load for unlimited hours a year (average 75% load factor, 10% overload for 1 hour in any 12), while Standby Power is the emergency supply rating (average 85% load factor, no overload, limit of 400 hours a year).
• The alternator is brushless with Class H insulation and harmonic distortion below 5%, so the supply suits electronic loads as well as motors.
• An electronic governor holds engine speed, and so frequency, steady as the load changes.
• A four pole circuit breaker switches the neutral along with the three phases, so the whole output can be isolated.
• A battery charger and isolator keep the starting battery charged between runs and let it be isolated when idle.

Fuel use is 362 L/h at 100% load, 272 L/h at 75% and 185 L/h at 50%. A DeepSea 7420 MKII controller manages the set.

What it will run

At 1750 kVA Prime Power the set supplies about 2430 A per phase at 415V. That typically suits the load of a large industrial, processing or commercial site, with chillers, pumps, compressors and building services shared across the three phases. Treat motor starting as the first check: the largest motor can draw several times its running current as it starts, and a soft starter or drive reduces that surge. Check each machine's compliance plate for its current. An engineer should assess the site's load schedule, including starting and step loads, and a licensed electrician should design and install the connection to the switchgear, including any changeover or transfer arrangement. Send us your load list and we will help you size the set.

The GP1750 suits data centres, industrial and processing plants, mining and construction projects, water and wastewater works and large commercial developments that need standby power or a supply for a varying load.

Price on application. A set of this size is quoted to your configuration, any extras and the installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 1925 kVA standby / 1750 kVA prime output
• Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Suitable for backup or prime power duty
• Optional automatic transfer switches, ultra-silent configuration and mine/construction compliance
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 15700 kg
• Dimensions (L x W x H): 570 x 219.2 x 344 cm
• Prime Power: 1750 kVA / 1400 kW
• Phase, voltage and frequency: Three phase, 415V, 50Hz
• Engine details: Perkins 4016-TAG1A, 16 cylinders, 61.1 L, turbocharged and aftercooled, electronic governor
• Alternator: Leroy Somer LSA51.2S55, brushless, AVR, Class H insulation
• Harmonic distortion: Below 5%
• Circuit breaker: Four pole
• Controller: DeepSea 7420 MKII
• Fuel consumption: 362 L/h at 100% load, 272 L/h at 75% load, 185 L/h at 50% load
• Oil and coolant capacity: Oil 214 L, coolant 255 L
• Cooling: High ambient cooling package
• Also fitted: Battery charger and isolator, heavy-duty skid base

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
