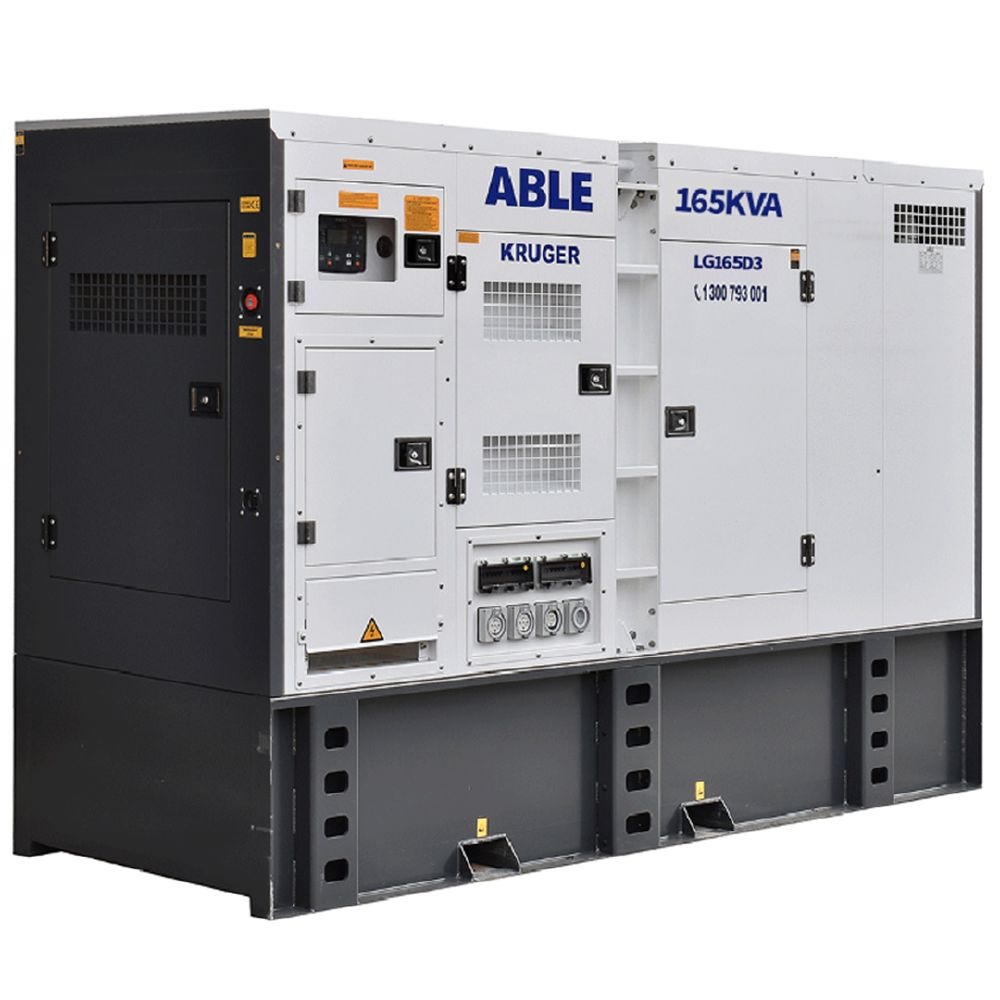

165kVA ABLE Diesel Generator LG165D3

The LG165D3 is a 165kVA three phase diesel generator rated 165kVA (132kW) prime and 182kVA (145kW) standby at 415V, 50Hz and a power factor of 0.8. Power comes from a six-cylinder turbo diesel, water cooled and turning at 1500 rpm, which drives a four-pole brushless synchronous alternator with AVR. It starts electrically at 24 volts with the batteries included, and protection is an IP67-enclosed RCD plus over current protection.

Key features

• The six-cylinder turbo diesel runs at 1500 rpm, the speed at which a four-pole alternator produces a 50Hz supply.
• The alternator is brushless, so there are no brushes to wear, and its AVR keeps the output voltage steady as loads come on and off.
• The ComAp AMF20 controller supports two-wire remote start, so a switch or external controller can start the set.
• Three phase outlets (two at 32A and one at 20A) and one 15A single phase outlet are rated IP66 (dust tight and protected against powerful water jets), and hardwire terminals suit a fixed connection.
• The lockable canopy is sound deadened, with a weather-resistant powder coat and stainless steel fittings.
• Sites that need spill containment get mine site ready bunding as part of the specification.

A full 950 litre tank at 40 litres an hour gives about 24 hours of running at prime load. Noise is 67 dB(A) at 7 m.

What it will run

A set of this size is matched to the combined load of a site. At 132kW prime it has a rated current of 231A per phase, and at a power factor of 0.8 the loads should be totalled in kW as well as kVA. Typically it suits the motors, compressors, pumps, chillers, lighting and control systems of an industrial plant or a large commercial building. Start the largest motor first and add other loads in steps, because motors draw several times their running current as they start, and keep the three phases balanced. The compliance plate on each machine gives its running and starting power. An electrician or engineer should assess the site load before the set is specified, and a licensed electrician should connect it to the switchboard through a changeover switch. Send us your load list and we will help you check the sizing.

The LG165D3 suits industrial plants, large commercial buildings, communications sites, and mining and infrastructure projects. Its prime and standby ratings let it serve as outage cover or run for regular periods.

Key specifications

• Output: 165kVA (132kW) prime, 182kVA (145kW) standby @ 0.8PF
• Rated current: 231 Amps per phase (prime)
• Engine: Six-cylinder turbo diesel, 1500rpm, water cooled
• Alternator: Three phase 4-pole brushless synchronous alternator with AVR
• Controller: ComAp AMF20, two-wire remote start
• Start type: 24 volt electric, batteries included
• Phase / voltage: Three phase, 415V, 50Hz
• Fuel: Diesel
• Fuel tank: 950 L
• Fuel use: 40 L/hr at prime load
• Run time: 24 hrs continuous at prime load
• Noise level: 67 dB(A) @ 7m
• Outlets: 2 x 32 Amp and 1 x 20 Amp three phase and 1 x 15 Amp single phase IP66 outlets
• Hardwire terminals: Yes
• Protection: RCD to Australian Standards (IP67 enclosed), over current protection
• Canopy: Lockable, sound deadened, weather-resistant powder coat, stainless steel fittings
• Mine spec: Mine site ready bunding
• Dimensions (L x W x H): 320 x 115 x 215 cm
• Weight: 2,550 kg
• Warranty: 12 months or 1,000 hours
