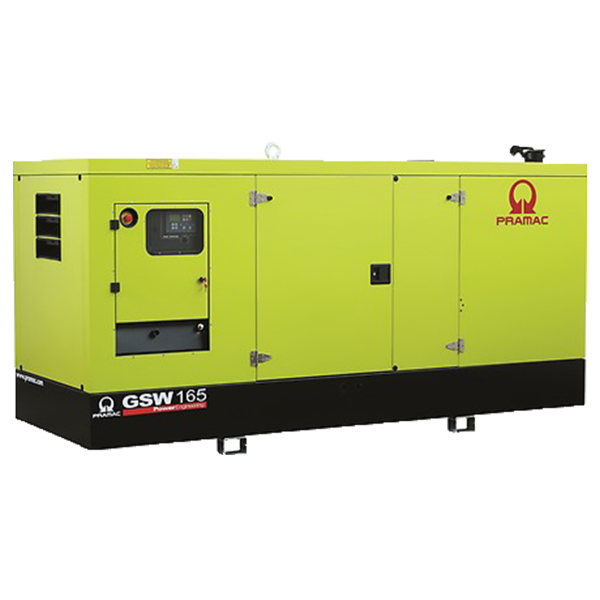

164kVA Pramac Diesel Generator GSW165P-P

The GSW-165P is a three phase diesel generator rated 164kVA (131.2kW) standby (LTP) and 152.62kVA (122.1kW) prime (PRP) at 50Hz, with a power factor of 0.8. It is powered by a Perkins 1106A-70TAG2, a water-cooled, turbocharged six cylinder in-line diesel of 7000cm³. The alternator is a Mecc Alte ECP34-2L, a brushless four pole unit with Class H insulation and IP23 protection, and the set sits in a soundproofed, weatherproof enclosure of zinc-coated steel.

Key features

• The soundproofed, weatherproof enclosure of zinc-coated steel protects the set outdoors and holds noise to 68 dB(A) at 7 m.
• A digital automatic control panel keeps the set's controls and monitoring in one place.
• The engine's gross output of 136kW at prime and 149.1kW at LTP is above the set's electrical output of 122.1kW and 131.2kW, the difference covering alternator losses and engine ancillaries.
• The brushless alternator has no brushes to wear, and its Class H insulation gives the windings thermal headroom.
• Alternator efficiency is 93.5% at 75% load, so most of the engine's power reaches the load.
• IP23 protection guards the alternator against larger solid objects and light water spray.

The 360 litre tank runs the set for 14.71 hours at 75% of prime power and 10.94 hours at 100%, using 24.47L/h and 32.92L/h at those loads. Specific fuel consumption is 199.7g/kWh at 75% of prime power and 203.3g/kWh at full prime power. A 250A circuit breaker protects the output, and the starting battery is 140Ah.

What it will run

A 131.2kW standby set is chosen from a site load schedule. Work through the site's motors, pumps, compressors, chillers and lighting, record each running and starting figure from the compliance plate, and note the loads that start together. A three phase set at this size typically supplies that mix, with the single phase circuits shared evenly across the phases. Because large motors draw several times their running current at start, staged starting or soft starters can reduce the size of set needed. An engineer should review the schedule, and a licensed electrician must connect the set to the site's wiring through a changeover or transfer switch. Send us your load list and we will help you size it.

The GSW-165P suits manufacturing and processing sites, cold stores, commercial complexes and utilities that need three phase standby power.

Price on application. Sets of this size are quoted to suit the configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 164 kVA standby / 152 kVA prime rated diesel generator
• Powered by a Perkins 1106A-70TAG2 engine
• Water-cooled engine
• Mecc Alte alternator
• Digital automatic control panel
• Soundproofed, zinc-coated steel weatherproof enclosure
• 1-year warranty
• Free fuel and oil filter kit included; delivered load- and function-tested
• Weight: 2240 kg
• Dimensions (L x W x H): 340 x 125 x 177 cm
• Rated output: Standby (LTP) 164kVA / 131.2kW; Prime (PRP) 152.62kVA / 122.1kW
• Phase and frequency: Three phase, 50Hz
• Power factor: 0.8
• Engine type: 6 cylinders in line, 7000cm³, turbocharged
• Alternator: Mecc Alte ECP34-2L, brushless, 4 poles, Class H insulation, IP23
• Fuel tank: 360 litres
• Fuel consumption: 24.47L/h at 75% PRP; 32.92L/h at 100% PRP
• Running time: 14.71 hours at 75% PRP; 10.94 hours at 100% PRP
• Noise level: 68 dB(A) at 7 m
• Sound power level (LWA): 97 dB(A)
• Circuit breaker: 250A
• Battery capacity: 140Ah

Part of the Pramac range at Gen4Sale.
