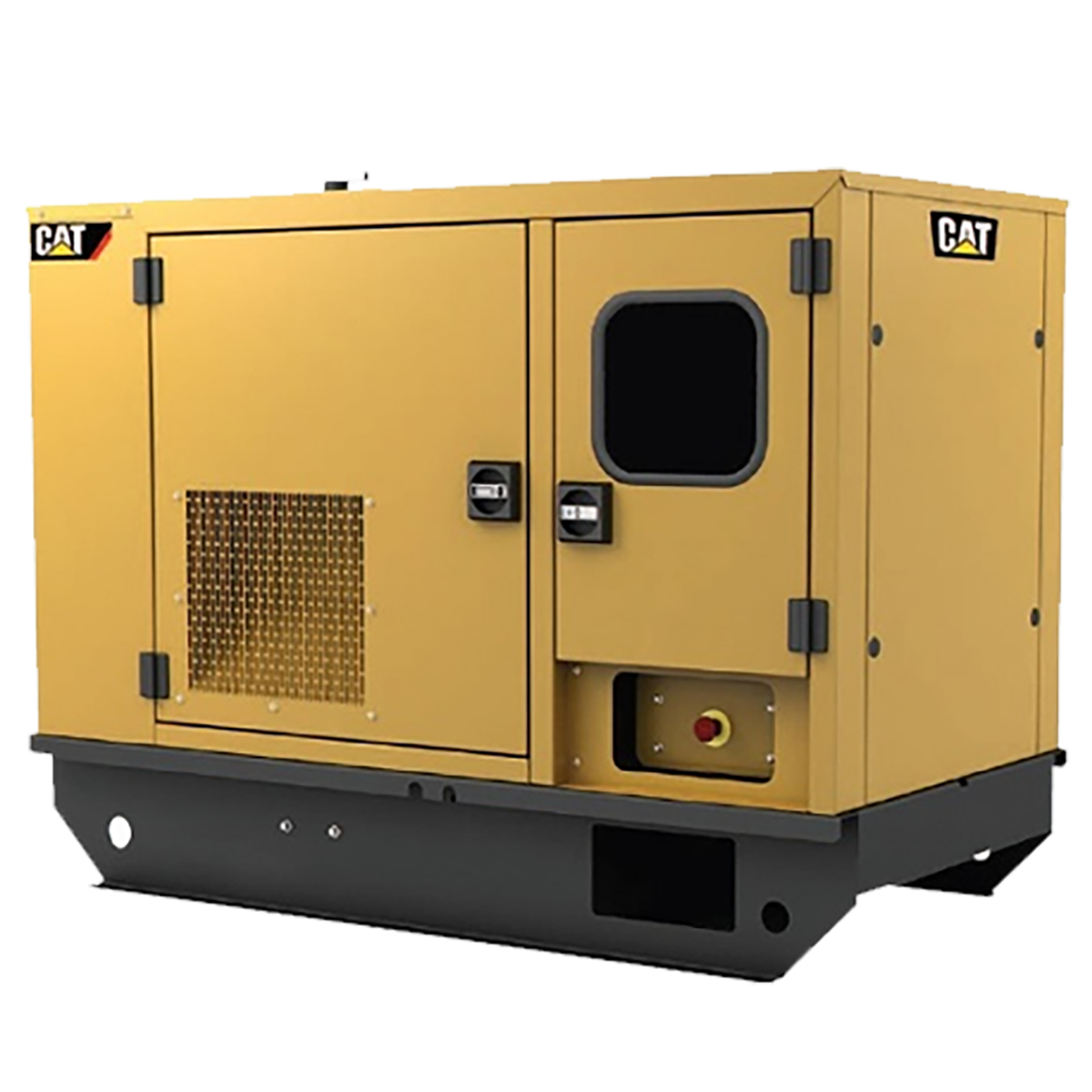

16.5kVA CAT Diesel Generator DE16-SP ENCL

The DE16-SP is a stationary, single phase diesel generator set. Its Cat C2.2 engine drives an LCB1114M alternator from the LC Series.

Key features

• The Cat C2.2 is a four-cylinder, four-stroke diesel of 2.2 litres with in-line cylinders and natural aspiration, meaning no turbocharger to maintain.
• Water cooling uses a mechanical, centrifugal water pump, so coolant circulation does not depend on a separate electric pump.
• Speed control is mechanical: the governor holds the engine at 1500 rpm for 50 Hz output.
• The alternator combines shunt excitation with class H insulation and an IP23 rating, which covers finger-sized objects and water spray.
• Steady state voltage regulation is plus or minus 1.0%, so output voltage stays close to its set point under a steady load.

Noise is 65.9 dBA at 7 m. The engine runs on Class A2 diesel or BS EN 590 fuel, and engine oil is API CH4 15W-40 passed through a spin-on, full-flow filter.

What it will run

This single phase set typically suits a larger workshop, farm pumping and cool room circuits, and commercial premises on a single phase supply. Sizing starts with a list: write down each circuit you want live during an outage, note which ones have motors, and add the running loads together. Motors need extra, because compressors, pumps and air conditioners draw several times their running current as they start, so stagger them. Appliance compliance plates give running and starting figures. Any connection to the switchboard must be made by a licensed electrician through a changeover switch. Send us your load list and we will help you size the set.

The DE16-SP suits standby power for commercial and industrial users with a single phase supply: larger workshops, farm infrastructure, pumping, refrigeration and building services.

Price on application. Configuration, options and site all move the price of a stationary diesel set, so each one is quoted properly. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Power output: 16.5kVA standby, 15kVA prime (50 Hz)
• Phase: Single phase
• Fuel tank: 55 litres
• Run time: 45.7 Hour Run @ 75% Load
• Noise level: 65.9 dBA @ 7m
• Dimensions (L x W x H): 170.4 x 87.6 x 126.8 cm
• Weight: 719 kg
• Engine: Cat C2.2, 4 cylinder in-line, 4-stroke, naturally aspirated
• Cooling: Water, mechanical centrifugal water pump
• Engine displacement: 2.2 litres
• Compression ratio: 23.3:1
• Governor: Mechanical
• Engine speed: 1500 rpm at 50 Hz
• Alternator model: LCB1114M (LC Series)
• Alternator insulation and protection: Class H insulation, IP23
• Alternator excitation: Shunt
• Voltage regulation: ±1.0% at steady state
• Recommended fuel: Class A2 diesel or BS EN 590
• Engine oil: API CH4 15W-40
