150kVA Cummins Diesel Generator C150D5

The Cummins C150D5 is a three phase diesel generator set rated at 150kVA (120kW) standby and 136kVA (109kW) prime, with a Stamford alternator supplying 415V.

Key features

• Separate standby and prime ratings mean the set can be specified for emergency backup or for running under a variable load.
• The 415V three phase output, produced by a Stamford alternator, suits commercial and industrial site supplies.

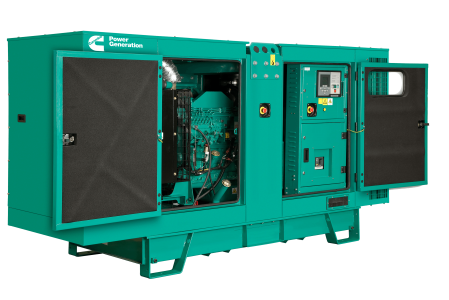

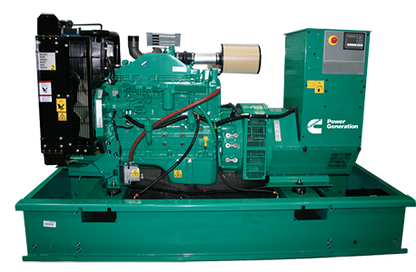

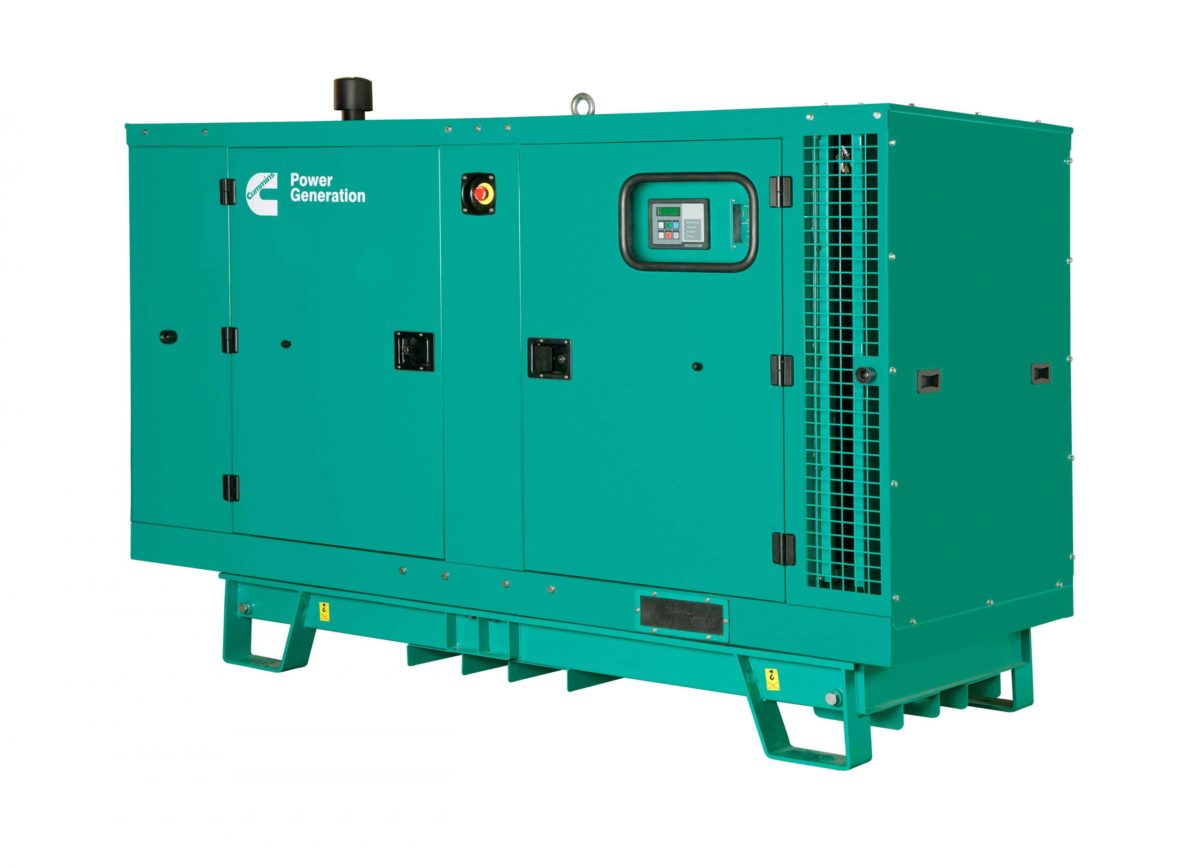

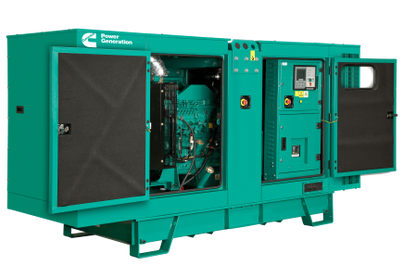

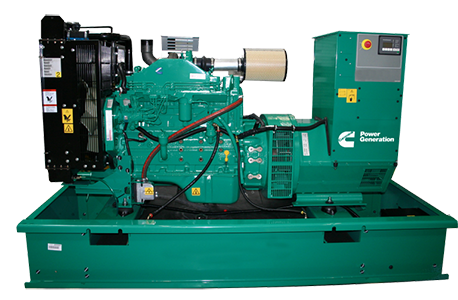

• The set is offered in open and enclosed versions, and the version is chosen at the quote stage.

What it will run

At 150kVA standby, the C150D5 typically suits the essential services of a large commercial building or an industrial site: lighting, pumps, refrigeration, ventilation and process equipment. Size it from the real load schedule rather than the nameplate, and allow for starting loads. Motors and compressors can draw several times their running current as they start, so the biggest motor on site often decides the minimum size. Spread the load across the three phases and check the compliance plate on each machine. An engineer should assess the site loads, and any connection to the switchboard must go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help you size the set.

The C150D5 suits commercial premises, industrial facilities and other sites that need standby power, and its prime rating gives an option for sites where mains supply is limited.

See the full large generator range.

Price on application. The version, any options and the site all shape the price, so every set is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 150kVA / 120kW
• Prime output: 136kVA / 109kW
• Engine: 6BTAA5.9-G6, 4-cycle, in-line, 6-cylinder diesel, turbocharged and charge air cooled, 1500 rpm
• Governor: Electronic
• Starting voltage: 12 V
• Lube oil capacity: 16.4 L
• Fuel consumption: 31.2 L/hr at full prime load; 25.0 L/hr at 3/4 prime load; 36.0 L/hr at full standby load
• Voltage: 415V, three phase
• Alternator: Stamford
• Alternator model: UCI274E or UCI274F (380 to 416 V)
• Dimensions (L x W x H): 253.7 x 109 x 184.6 cm (open), 346 x 109 x 238.7 cm (enclosed)
• Weight: 1635 kg dry (open set); 2390 kg dry (enclosed set)

Part of the Cummins range at Gen4Sale.
