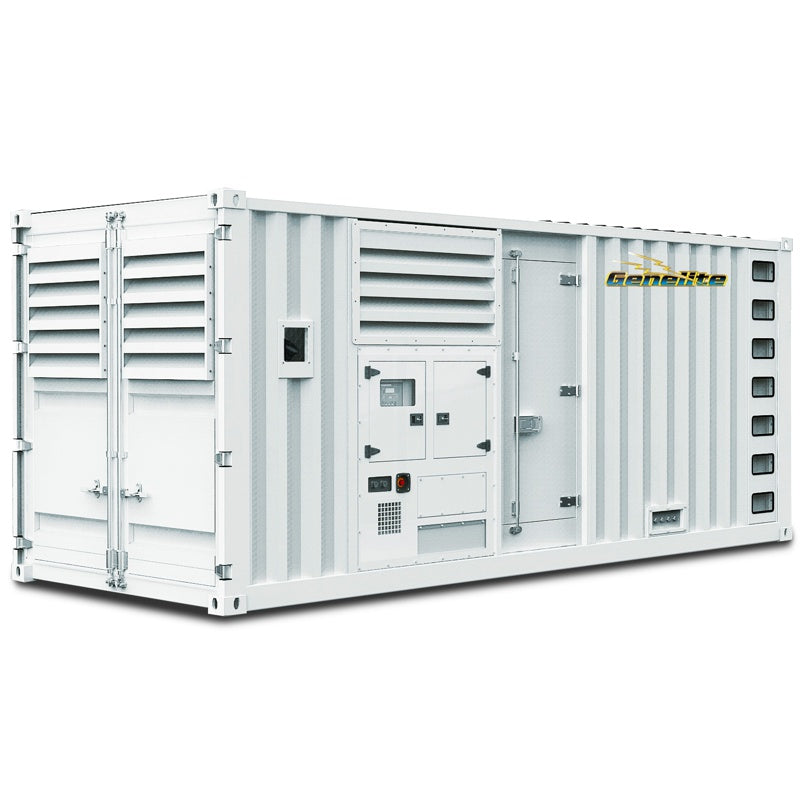

1650kVA Cummins or Perkins Diesel Generator GC1500S / GP1500S

The GC1500S is a Cummins-powered three phase diesel generator set rated at 1500kVA (1200kW) prime and 1650kVA (1320kW) standby at 415V and 50Hz. Perkins power comes as the GP1500S; the figures here are for the Cummins GC1500S. The engine is a Cummins KTA50GS8, a 16 cylinder, 50 litre turbocharged and aftercooled diesel running at 1500rpm with an electronic governor, driving a brushless Stamford Pi734C alternator with AVR. A Deep Sea 7420 MKII controller and a four pole circuit breaker handle control and output.

Key features

• A bunded 1100 litre tank is built to contain spills.
• A silenced canopy with a galvanised powder-coat finish reduces noise and resists corrosion.
• The Stamford alternator is brushless with AVR, and harmonic distortion below 5% suits electronic equipment as well as motors.
• A four pole circuit breaker switches the three phases and neutral together.
• A heavy-duty skid base gives a rigid platform for mounting the set on site.
• A battery charger and isolator keep the starting battery charged and allow it to be isolated for servicing.

The engine uses 309 litres an hour at 100% load, 238 at 75% load and 167 at 50% load. Oil capacity is 204 litres and coolant capacity is 351 litres.

What it will run

At 1500kVA prime and 1650kVA standby (1200kW and 1320kW), the GC1500S is sized from the site's load schedule, not from individual appliances. It typically suits major industrial plant, large processing and manufacturing sites, mining and construction operations and large commercial buildings on three phase 415V. An engineer should assess the running loads, motor starting currents and step loads before the set is specified. Prime power (PRP) is continuous operation at variable load for unlimited hours a year, with an average load factor of 75% and 10% overload for 1 hour in 12. Standby power (ESP) is an emergency supply at an average load factor of 85%, with no overload capability and a limit of 400 hours a year. Send us your site load list and we will help with sizing.

The GC1500S suits major industrial plants, mining and construction operations, large processing sites and large commercial buildings that need three phase standby or prime power.

Price on application. A set of this size is quoted to the configuration, options and site requirements of each project. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Up to 1650 kVA three-phase diesel generator
• Choice of Cummins or Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open and silenced (S) canopy configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Comes with factory warranty and support
• Weight: 18200 kg
• Dimensions (L x W x H): 1219 x 243 x 289 cm
• Specifications below are for: Cummins GC1500S
• Prime and standby ratings: 1500kVA / 1200kW prime, 1650kVA / 1320kW standby
• Voltage and frequency: 415V, 50Hz, three phase
• Engine: Cummins KTA50GS8, 16 cylinders, 50L, turbocharged and aftercooled, electronic governor
• Controller: Deep Sea 7420 MKII
• Alternator: Stamford Pi734C, brushless with AVR, Class H insulation, harmonic distortion less than 5%
• Circuit breaker: Four pole
• Fuel tank: 1100 L
• Enclosure and base: Silenced canopy with galvanised powder-coat finish, heavy-duty skid base
• Fuel consumption: 309 L/h at 100% load, 238 L/h at 75% load, 167 L/h at 50% load
• Capacities: Lube oil 204 L, coolant 351 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
