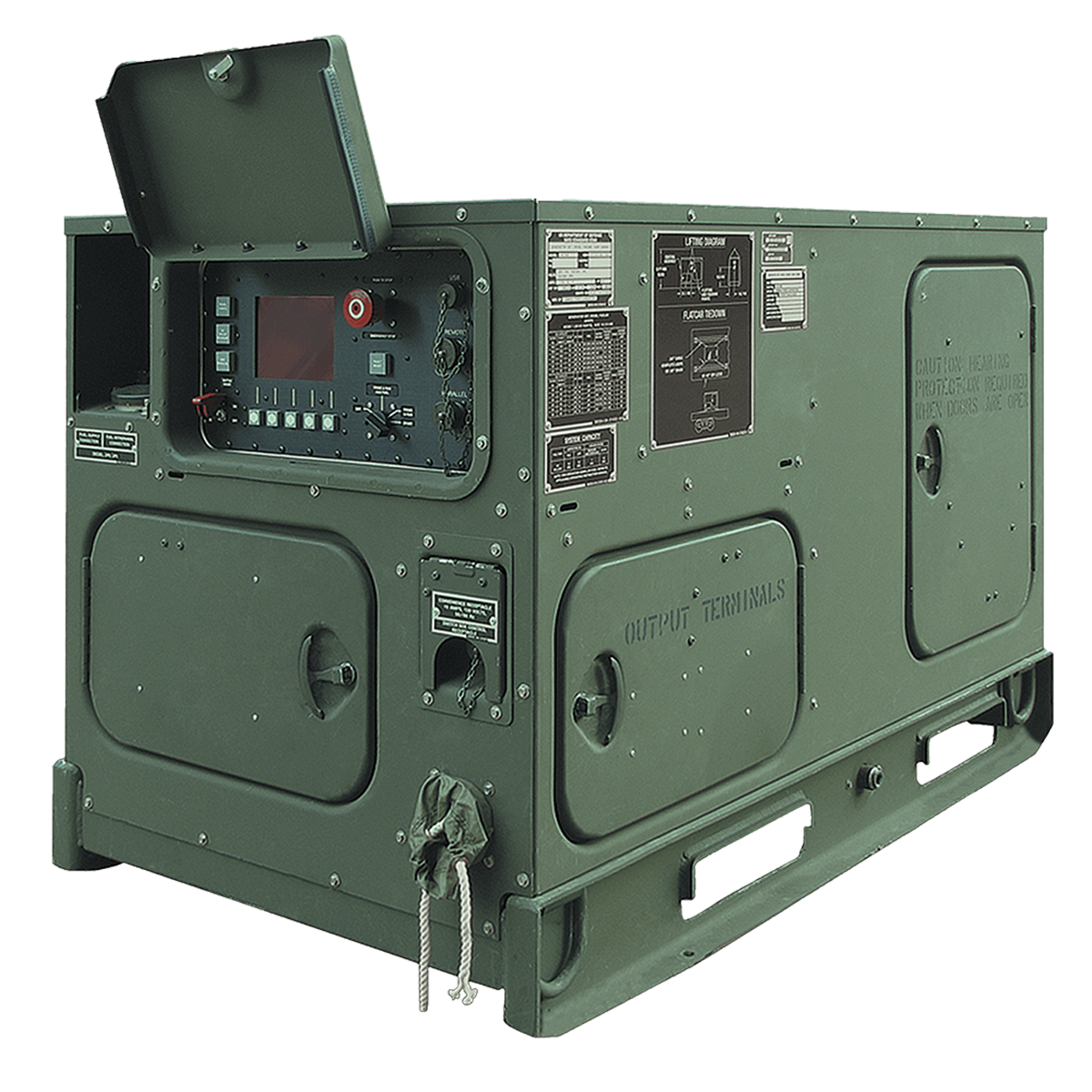

15.6kVA (15kW) Cummins RMP Diesel Generator 15RMP-1050A

The 15RMP-1050A is a Cummins RMP diesel generator set rated at 15.6kVA (15kW). It is designed to the MIL-DTL-32496 military specification, runs on multiple fuels and starts on a 24 volt system with a NATO slave connection.

Key features

• Multi-fuel capability covers JP-8, JP-4, DF-1, DF-2 and DF-A, which gives flexibility where the fuel supply varies.
• Automatic synchronisation with two-button paralleling lets the set share a load with other compatible sets.
• The Advanced Digital Control System (ADCS) provides built-in diagnostics and prognostics, which help identify faults and developing problems.
• Networked automatic start and stop capability allows the set to be started and stopped under network control instead of by hand.
• High-altitude electromagnetic pulse survivability is part of the design, which addresses the risk of a pulse event disabling unprotected electronics.
• A low infrared and noise signature suits operations where the set needs to be less conspicuous in the field.

What it will run

At 15.6kVA (15kW), the 15RMP-1050A typically supports a command or communications post, field workshop equipment and general power for a small camp. Motors draw several times their running current as they start, so find the starting figure on each compliance plate and check it against the set's rating. Send us your load list, including the voltage and phase your equipment needs and whether you plan to run sets in parallel, and we will help with sizing.

The 15RMP-1050A suits defence and government field power, command and communications posts, and commercial or remote sites that specify a military-specification set.

Price on application. Each set is quoted to suit the configuration, options and project it will serve. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standards: Designed to MIL-DTL-32496; electromagnetic compatibility to MIL-STD-461F; radio frequency emissions MIL-STD-2169; NATO STANAG 4135
• Output (prime): 15.6kVA @ 50Hz; 15kW @ 60Hz
• Rating basis: Prime: maximum power at a variable load for an unlimited number of hours; 10% overload available for a limited time
• Power factor: Operates between 0.8 lagging and 1.0
• Multi-fuel capable (JP-8, JP-4, DF-1, DF-2, DF-A)
• Fuel consumption: 4.01 L/h at 100% load
• Fuel tank: 8 hours fuel tank with auxiliary fuel connections
• 24 volt starting with NATO slave connection
• Low infrared and noise signature for battlefield use
• Noise level: 70 dB(A) @ 7m at full load
• High-altitude electromagnetic pulse survivability
• Other features: Low Velocity Air Drop (LVAD) capable; battle short mode; nuclear, biological and chemical contamination survivability
• Automatic synchronisation with two-button paralleling
• Built-in diagnostics/prognostics with Advanced Digital Control System (ADCS)
• Controller: RMP Advanced Digital Control System (AdvDCS) with Masterless Load Demand (MLD)
• Networked automatic start/stop capability
• Engine configuration: 4-cycle, in-line, 84 mm bore x 90 mm stroke, 1.995 L, direct injection, Tier 3
• Alternator: Brushless, 4 pole synchronous, 2/3 pitch stator, Permanent Magnet Generator (PMG) exciter, Class F and H insulation
• Battery charging alternator: 45 A
• Frequency regulation: ±0.5% at 50Hz; ±3% at 60Hz
• Voltage regulation: ±3% of rated voltage, no load to full load
• Waveform distortion (THDV): Less than 5% no load to full linear load; less than 3% for any single harmonic
• Operating temperature: -45°C to 57°C
• Weight: 703 kg
• Dimensions (L x W x H): 165.8 x 91.8 x 135.2 cm

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
