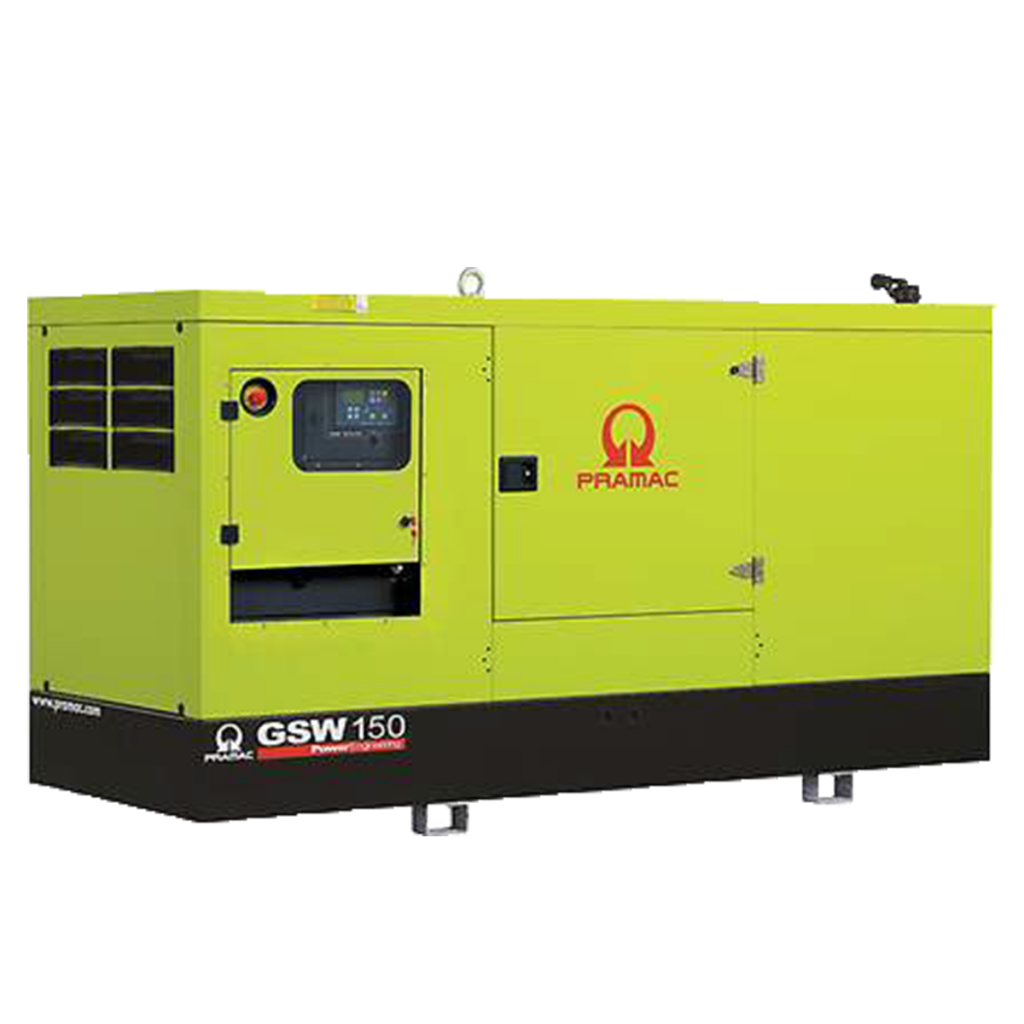

148kVA Pramac Diesel Generator GSW150P-P

The GSW-150P is a three phase diesel generator rated 148kVA (118.4kW) standby (LTP) at 50Hz, with a power factor of 0.8, and it also carries a prime (PRP) rating. It is powered by a water-cooled Perkins diesel that starts electrically on a 12V circuit. The alternator is a Mecc Alte ECP34-1L, a brushless four pole unit with electronic voltage regulation, Class H insulation and IP23 protection. The set sits in a soundproofed, zinc-coated weatherproof canopy on a welded steel base frame.

Key features

• The canopy has lockable access doors and a roof lifting eye, so the set is secured on site and ready for crane handling.
• A residential silencer is fitted to keep exhaust noise down.
• The brushless alternator has no brushes to wear, and its Class H insulation gives the windings thermal headroom.
• DSR electronic voltage regulation holds the output voltage within 1%, so the supply stays steady as the load changes.
• A lockable control panel with digital and analogue instrumentation keeps the readings in view and the controls secured.
• Anti-vibration mounts on the base frame reduce the vibration passed to the foundation.
• The plastic fuel tank has a minimum-level sensor, so a low fuel condition is picked up before the set runs dry.

Fuel consumption is 22.72L/h at 75% of prime power and 29.89L/h at 100%. Noise is 68 dB(A) at 7 m. A 225A circuit breaker protects the output, and the starting battery is 140Ah.

What it will run

At 118.4kW standby, the GSW-150P is sized from a site load schedule rather than from individual appliances. A three phase set of this size typically carries a mix of motors, pumps, compressors, lighting and building services, with single phase circuits spread evenly across the three phases. Motors draw several times their running current at start, so the starting method (direct on line, star-delta or soft start) changes the size of set you need. Check the compliance plate on each machine for its running and starting figures, then add them up in the schedule. An electrician or engineer should assess the schedule, and a licensed electrician must connect the set to the site's wiring through a changeover or transfer switch. Send us your load list and we will help you size it.

The GSW-150P suits factories and workshops, warehouses, commercial buildings, pumping stations and farms that need three phase standby power.

Price on application. Sets of this size are quoted to suit the configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 148 kVA standby / 137.84 kVA prime power
• Perkins 1106A-70TG1 water-cooled engine
• 350L fuel tank giving 14+ hours runtime
• 68 dB(A) @ 7m noise level
• Soundproofed, zinc-coated weatherproof enclosure
• Lockable control panel with digital and analogue instrumentation
• Free fuel and oil filter kit included
• Supported by national service network
• Weight: 2280 kg
• Dimensions (L x W x H): 300 x 115 x 176 cm
• Standby rating (LTP): 148kVA / 118.4kW
• Phase and frequency: Three phase, 50Hz
• Power factor: 0.8
• Starting: Electric, 12V
• Alternator: Mecc Alte ECP34-1L, brushless, 4 poles, Class H insulation, IP23
• Voltage regulation: Electronic (DSR), within 1%
• Alternator efficiency: 93.4% at 75% load
• Fuel consumption: 22.72L/h at 75% PRP; 29.89L/h at 100% PRP
• Sound power level (LWA): 97 dB(A)
• Circuit breaker: 225A
• Battery capacity: 140Ah

Part of the Pramac range at Gen4Sale.
