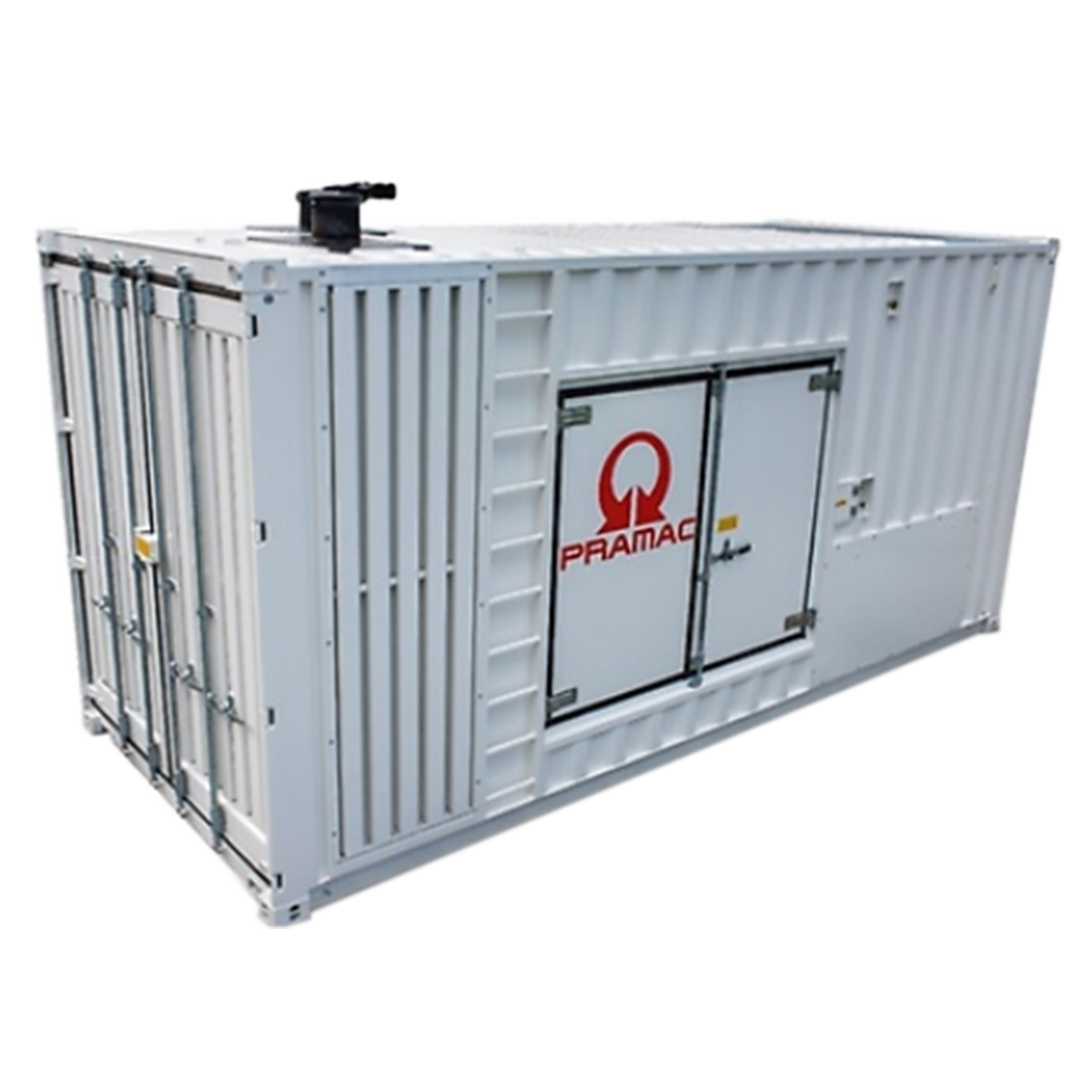

1394kVA Pramac Diesel Generator GQW1400V TwinGen

The GQW1400V is a three phase diesel generator rated 1394kVA (1114kW) standby (LTP) and 1252kVA (1000kW) prime (PRP) at 50Hz. It combines two gensets, each powered by a Volvo TWD1643GE, a turbocharged six cylinder in-line diesel of 16120cm³ running at 1500 rpm. Each alternator is a Mecc Alte ECO40 2L, a brushless four pole unit with Class H insulation and IP23 protection, and the metal fuel tank holds 1800 litres.

Key features

• The set carries both a standby (LTP) rating and a prime (PRP) rating, so it can be sized for emergency backup or for running on a variable load for long periods.
• Each turbocharged six cylinder in-line engine of 16120cm³ turns at 1500 rpm, the speed that gives 50Hz from a four pole alternator.
• The brushless Mecc Alte ECO40 2L alternators have no brushes to wear, and their Class H insulation gives the windings thermal headroom.
• IP23 protection on the alternators guards against larger solid objects and light water spray.
• Sound pressure is 75 dB(A) at 7 m and 84 dB(A) at 1 m, which helps you assess the noise at a boundary or a plant room door.

Fuel consumption is 195.72L/h at 75% of prime power and 261.37L/h at 100%, which is 196g/kWh and 199g/kWh. The 1800 litre tank gives 9.20 hours at 75% of prime power and 6.89 hours at 100%.

What it will run

A set of this size is chosen from a site load schedule, not from a list of appliances. At 1114kW standby and 1000kW prime, the GQW1400V typically supplies a plant's motors, pumps, compressors, chillers, lighting and building services together on a three phase supply. Large motors draw several times their running current at start, so the starting method (direct on line, star-delta or soft start) and the order the motors start in both affect the size of set you need. Check the compliance plate on each machine for its running and starting figures and build the schedule from those. Have an engineer assess the schedule, and have a licensed electrician connect the set to the site's switchboard through a changeover or transfer arrangement. Send us your load list and we will help you size it.

The GQW1400V suits emergency standby, industrial plants and mining operations, and other sites that need three phase power on a large scale.

Price on application. A set of this size is quoted to suit its configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 1394 kVA standby / 1252 kVA prime output
• Powered by a Volvo TWD1643GE diesel engine
• Noise level of 75 dB(A) at 7 metres
• Positioned for emergency standby, industrial and mining use
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 15500 kg
• Dimensions (L x W x H): 606 x 244 x 310 cm
• Rated output (50Hz): Standby (LTP) 1394kVA / 1114kW; Prime (PRP) 1252kVA / 1000kW
• Phase and frequency: Three phase, 50Hz
• Engine type: 6 cylinders in line, turbocharged, 16120cm³
• Engine speed: 1500 rpm
• Alternator: Mecc Alte ECO40 2L, brushless, 4 poles, Class H insulation, IP23
• Fuel tank: 1800 litres, metal
• Fuel consumption: 195.72L/h at 75% PRP; 261.37L/h at 100% PRP
• Running time: 9.20 hours at 75% PRP; 6.89 hours at 100% PRP
• Sound power level (LWA): 105 dB(A)
• Noise level at 1 m: 84 dB(A)
