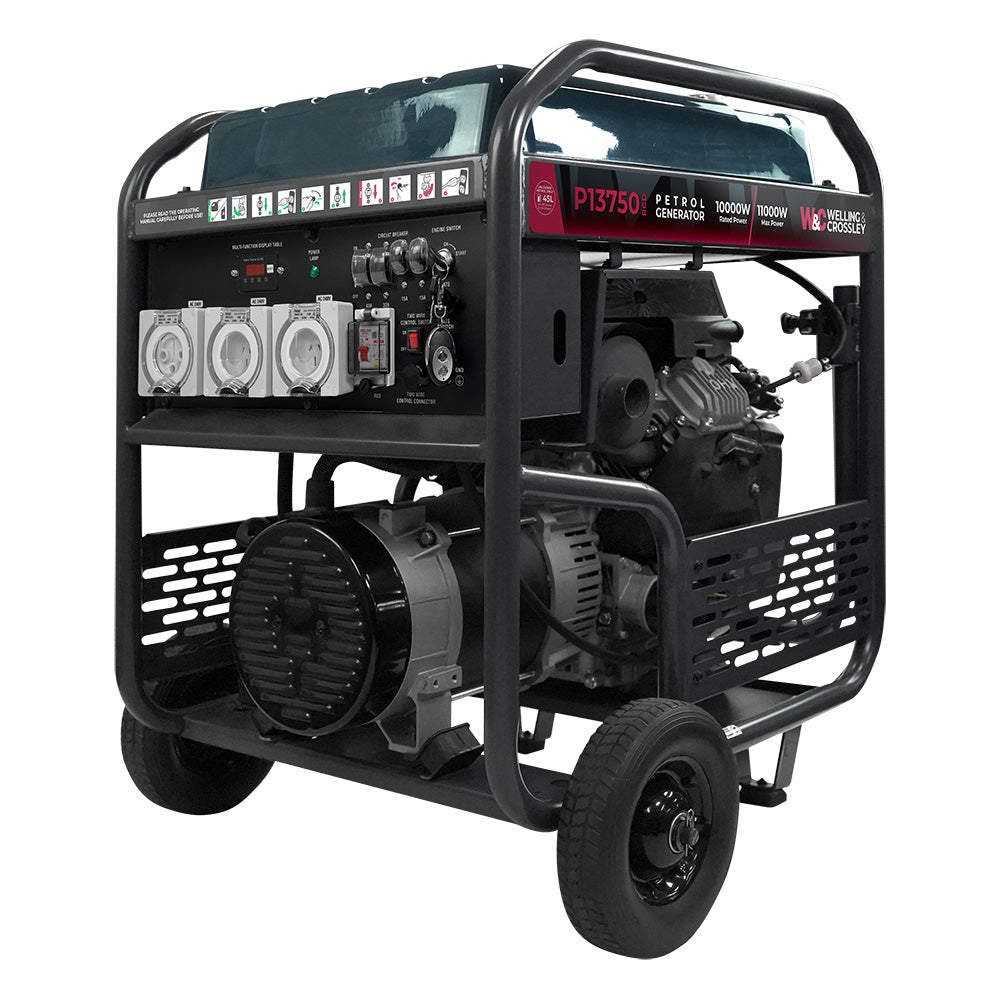

13.75kVA Welling & Crossley RCD Petrol Generator WC-P13750RCD

The WC-P13750RCD is a 13.75kVA open frame petrol generator with earth leakage protected outlets: 11000W maximum and 10000W rated output from the Euro 5 compliant WC-690 engine, electric start, RCD protection fitted at the factory.

It runs from a 45 L fuel tank, giving 27 hours at 1/4 load. Noise is rated at <90 dBA at 7m, and output is delivered through 2 x IP66 15Amp, 1 x IP66 32Amp; 1 x USB Type C (15w), 1 x USB Type A (18w) outlets.

It brings compliant high-output power to hire fleets, construction, events on public land and commercial standby, where the RCD fit-out gets it through the gate and the output carries the job. The standard WC-P13750 is the same unit without RCD protection.

Key specifications

• Maximum output: 11,000W
• Rated output: 10,000W
• kVA rating: 13.75kVA @ 0.8PF
• Engine: WC-690, twin cylinder, 4 stroke, OHV, air cooled petrol, Euro 5 compliant
• Start type: Recoil / Electric / 2-Wire / Remote
• Fuel: Petrol - 91 octane unleaded
• Fuel tank: 45 L
• Run time: 27 hrs @ 1/4 Load; fuel consumption 2.2 L/Hr @ 1/4 Load
• Noise level: <90 dBA @ 7m
• Outlets: 2 x IP66 15Amp, 1 x IP66 32Amp; 1 x USB Type C (15w), 1 x USB Type A (18w)
• Phase / voltage: Single phase, 230/240V AC (240V AC per whiteint), 50Hz
• AVR / RCD: AVR + RCD fitted; page notes RCDs cannot be used with surge-protected power boards
• Dimensions: 810 x 640 x 920 mm
• Weight: 160 kg
• Warranty: 2 Year Limited Welling & Crossley Warranty (battery excluded)

Welling & Crossley generators are backed Australia-wide with national parts and service support.
