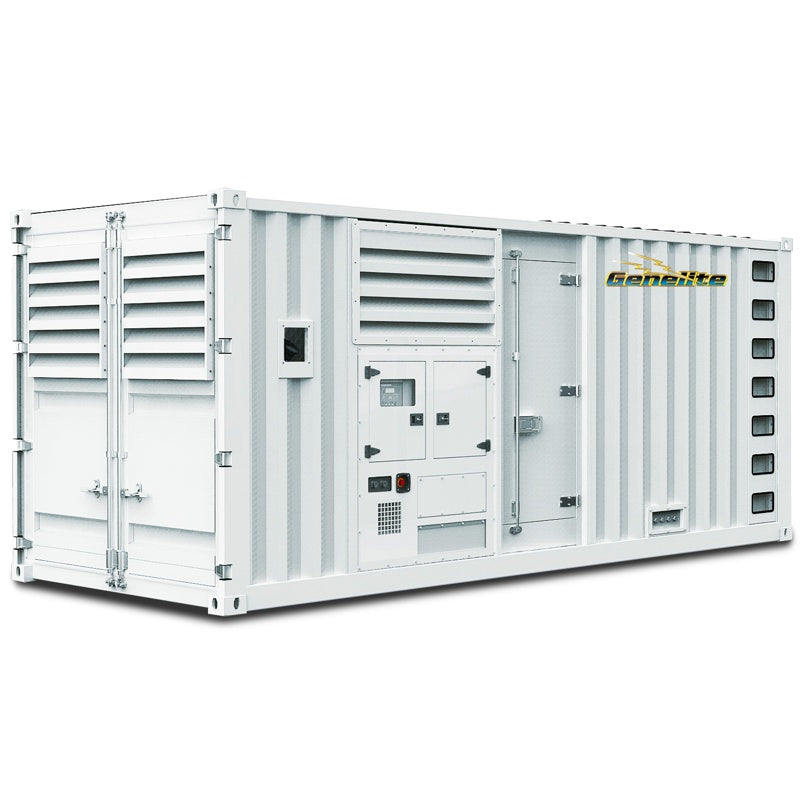

1375kVA Cummins or Perkins Diesel Generator GC1250S / GP1250S

The GC1250S is a Cummins-powered three phase diesel generator set rated at 1250kVA (1000kW) prime and 1375kVA (1100kW) standby at 415V and 50Hz. Perkins power comes as the GP1250S; the figures here are for the Cummins GC1250S. The engine is a Cummins KTA50G3, turbocharged and aftercooled, running at 1500rpm with an electronic governor, and the alternator is a brushless Stamford S6L1D-H with AVR. Control is by a Deep Sea 8610 MKII synchronising controller, with a four pole circuit breaker.

Key features

• A synchronising controller allows the set to be synchronised for parallel running with other sets.
• A bunded 1000 litre day tank is built to contain spills and gives about 5 hours of running at 75% load.
• A silenced container reduces the noise the set makes in operation.
• Harmonic distortion below 5% from the brushless Stamford alternator suits electronic equipment as well as motors.
• The four pole circuit breaker switches the three phases and neutral together.
• A battery charger and isolator keep the starting battery charged and allow it to be isolated for servicing.
• The electronic governor on the KTA50G3 holds engine speed, and so frequency, steady as the load changes.

The engine uses 261 litres an hour at 100% load, 199 at 75% load and 139 at 50% load. Oil capacity is 177 litres and coolant capacity is 260 litres.

What it will run

At 1250kVA prime and 1375kVA standby (1000kW and 1100kW), the GC1250S is sized from the site's load schedule, not from a list of appliances. It typically suits large industrial plant, processing sites, large commercial buildings and pumping or utility installations on three phase 415V. Have an electrician or engineer work through the site's running loads, the starting current of the biggest motors and any step loads before the set is specified. Standby power (ESP) is an emergency supply at an average load factor of 85%, with no overload capability and a limit of 400 hours a year. Prime power (PRP) is continuous operation at variable load for unlimited hours a year, with an average load factor of 75% and 10% overload for 1 hour in 12. Send us your load list and we will help with sizing.

The GC1250S suits heavy industry, mining and construction projects, processing and manufacturing sites and large commercial buildings that need three phase standby or prime power.

Price on application. Because the engine, configuration, options and site all shape the specification, each set is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Up to 1375 kVA three-phase diesel generator
• Choice of Cummins or Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open and silenced (S) canopy configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Custom-built or off-the-shelf solutions available
• Weight: 15500 kg
• Dimensions (L x W x H): 605.8 x 243.8 x 289.6 cm
• Specifications below are for: Cummins GC1250S
• Prime and standby ratings: 1250kVA / 1000kW prime, 1375kVA / 1100kW standby
• Voltage and frequency: 415V, 50Hz, three phase
• Engine: Cummins KTA50G3, turbocharged and aftercooled, electronic governor
• Controller: Deep Sea 8610 MKII
• Alternator: Stamford S6L1D-H, brushless with AVR, Class H insulation, harmonic distortion less than 5%
• Circuit breaker: Four pole
• Fuel tank: 1000 L bunded day tank
• Enclosure: Silenced container
• Fuel consumption: 261 L/h at 100% load, 199 L/h at 75% load, 139 L/h at 50% load
• Capacities: Lube oil 177 L, coolant 260 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
