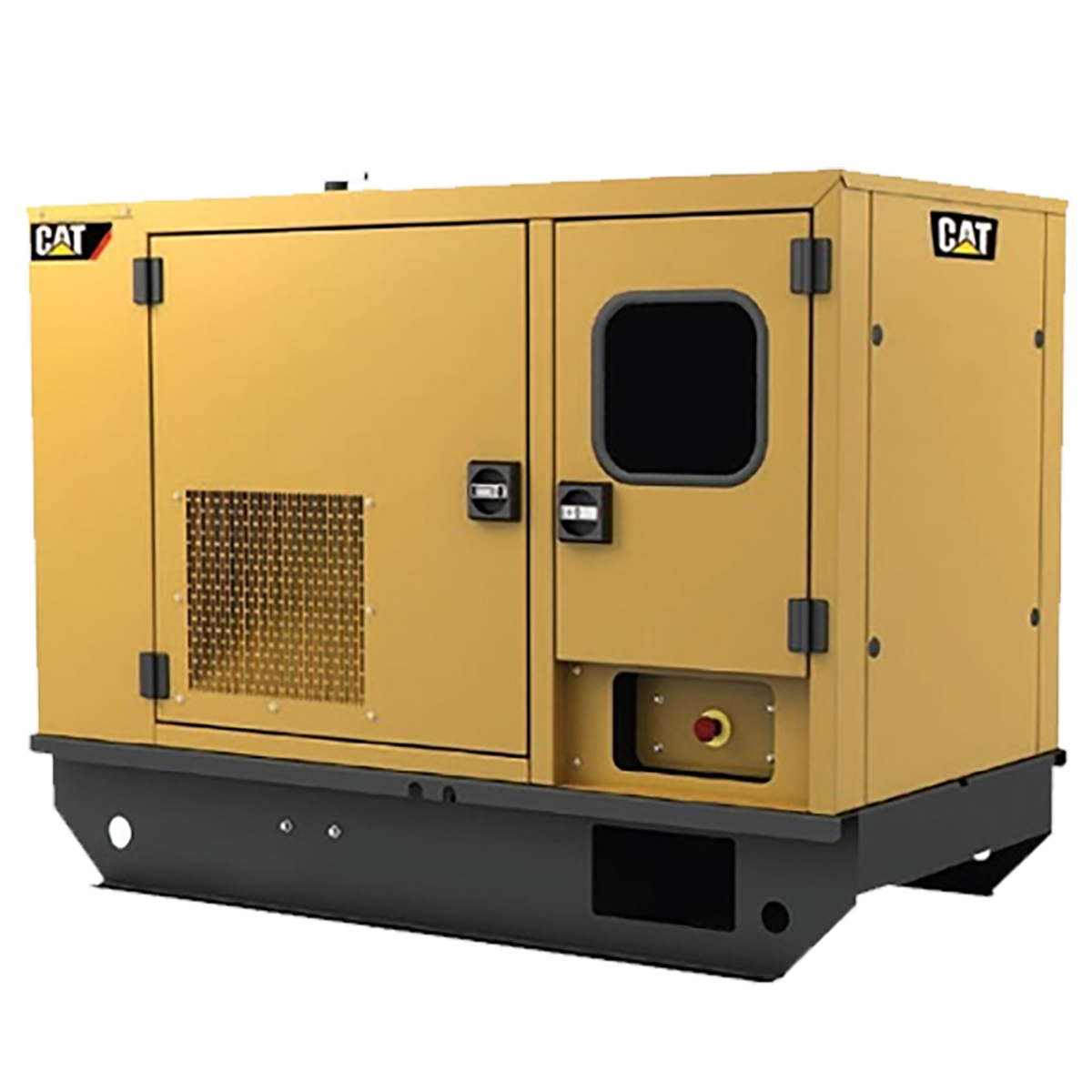

13.5kVA CAT Diesel Generator DE13.5 ENCL

The DE13.5 is a stationary, three phase diesel generator set with an output of 13.5 kVA. A Cat C1.5 engine drives an LC1114D alternator, and a 3 pole MCB circuit breaker is fitted to the output.

Key features

• The Cat C1.5 is a four-stroke diesel with three cylinders in line, 1.5 litres of displacement and natural aspiration, so air is drawn in without a turbocharger.
• A mechanical governor holds the engine at 1500 rpm for 50 Hz output, with speed control that does not rely on engine electronics.
• The 3 pole MCB circuit breaker protects the three phase output against overload and short circuit.
• Alternator protection is rated IP23, which covers finger-sized objects and water spray, and the windings use class H insulation, a high temperature class.
• Shunt excitation with an R220 automatic voltage regulator holds steady state voltage regulation to plus or minus 1.0%.
• Cooling is designed for ambient conditions up to 50°C, which covers hot-climate installations.

Noise is 59.9 dBA at 7 m. Engine oil is API CH4 15W-40, passed through a spin-on, full-flow filter, and the battery is 12 V negative earth. The set is controlled from an EMCP 4.1 panel.

What it will run

A 13.5 kVA three phase set typically suits three phase pumps and motors, workshop and farm machinery, cool rooms and commercial loads, with single phase circuits spread evenly across the three phases. Work from your site load: add up what must run together, then allow for motor starting, since pumps and compressors draw several times their running current as they start and are best started one at a time. Each item's compliance plate shows its running and starting figures. The connection to your switchboard, including a changeover switch, must be made by a licensed electrician. Send us your load list and we can help with sizing.

The DE13.5 suits standby power at commercial and industrial premises on a three phase supply, including light industrial plant, farms, pumping, cold storage and workshops running three phase equipment.

Price on application. Options, configuration and site conditions all affect the price of a stationary diesel set, so each one is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Power output: 13.5kVA
• Engine: CAT Diesel Engine C1.5
• Phase: Three phase
• Fuel tank: 55 litres
• Run time: 60.4 Hour Run @ 75% Load
• Noise level: 59.9 dBA @ 7m
• Dimensions (L x W x H): 170.4 x 87.6 x 126.8 cm
• Weight: 650 kg
• Engine configuration: 3 cylinder in-line, 4-stroke, naturally aspirated
• Engine displacement: 1.5 litres
• Compression ratio: 22.5:1
• Governor: Mechanical
• Engine speed: 1500 rpm at 50 Hz
• Control panel: EMCP 4.1
• Circuit breaker: 3 pole MCB
• Alternator model: LC1114D
• Alternator insulation and protection: Class H insulation, IP23
• Excitation and AVR: Shunt excitation, AVR R220
• Voltage regulation: ±1.0% at steady state
• Engine oil: API CH4 15W-40
