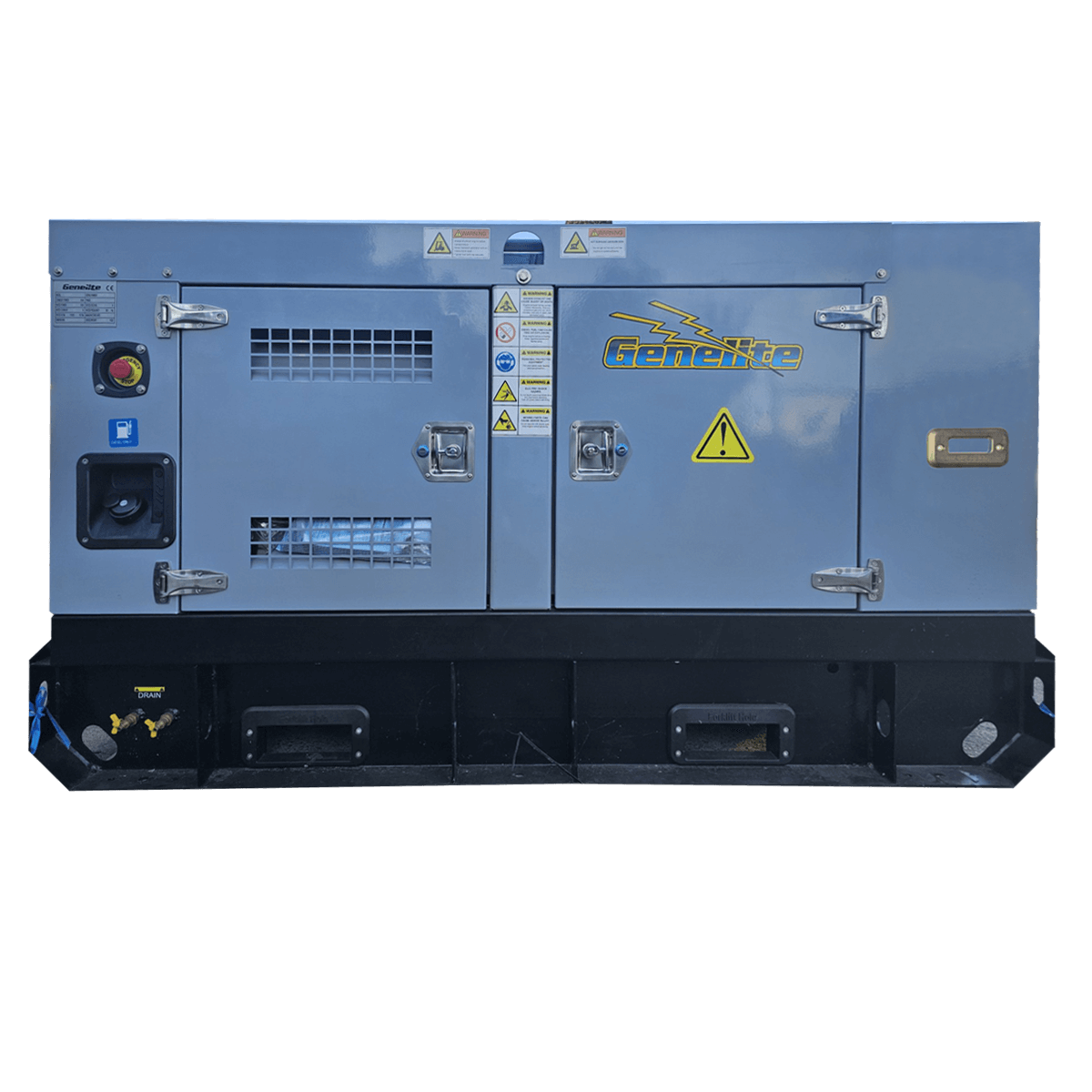

11kVA Kubota Diesel Generator LG10K-1

Rated at 10kVA (8kW) prime and 11kVA (8.8kW) standby, the LG10K-1 is a single phase diesel generator running at 240V and 50Hz. It is built around a Kubota D1105, a three cylinder, 1.123 litre, naturally aspirated engine turning at 1500 rpm. A Stamford S0L1-P1 brushless alternator with AVR supplies the output, a mechanical governor holds engine speed, and a two pole circuit breaker protects the set.

Key features

• Three 15A 240V outlets are fitted, so tools and appliances can be plugged in at the set.
• Total harmonic distortion is under 5%, so sensitive electronics are suitable loads.
• The silenced canopy is rated at 67 dB(A) at 7 m, which is the figure to check against any noise limit at your site.
• The 105 litre fuel tank is bunded, with a containment bund to catch leaks.

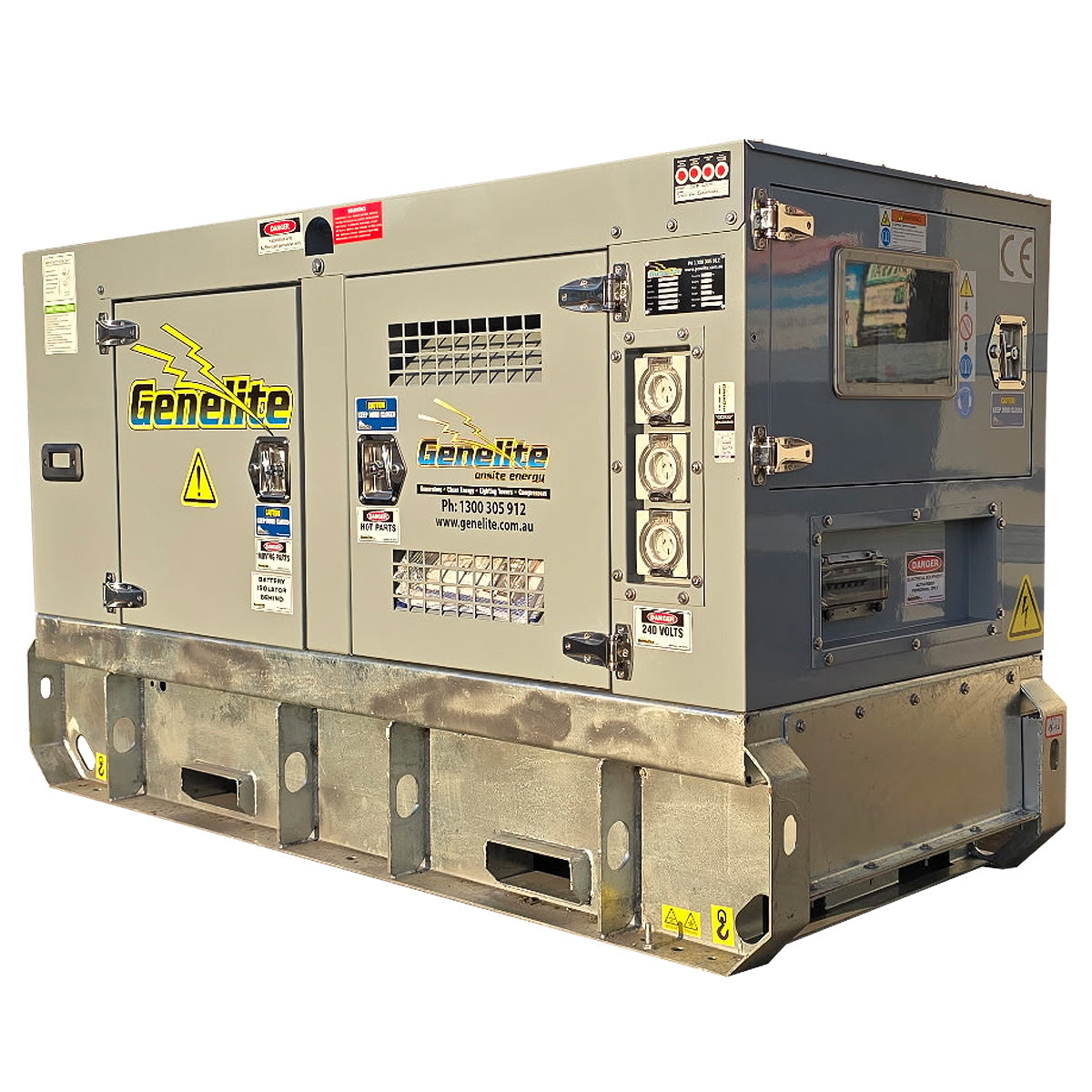

• The skid base is hot-dip galvanised and has fork pockets, so the set can be handled with a forklift.
• The starting battery is kept charged by a battery charger, and an isolator disconnects it when the set is serviced.

The D1105 uses 3.5 litres an hour at full load, 2.9 at 75% load and 1.8 at 50% load, so the bunded tank lasts 36 hours at 75% load. The controller is a DeepSea 6120. Engine oil capacity is 5.1 litres and coolant capacity is 6.4 litres. The canopy has a galvanised powder-coat finish.

What it will run

At 8.8kW standby the LG10K-1 supplies about 37A at 240V (8,800 watts divided by 240), or about 33A at the 8kW prime rating. That typically covers the essential circuits of a home or small business: lighting, fridges and freezers, a pressure pump, power tools and a few appliances, with any motor counted at its starting current rather than its running current. Motors can draw several times their running current at start, so leave headroom for the largest one. Check the compliance plate on each appliance for its running and starting load. For home backup, connection is through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The LG10K-1 suits homes, farms, workshops, shops and light commercial sites that want standby power through an outage, with the prime rating available for loads that rise and fall during the day.

Key specifications

• Power output: 11kVA
• Engine: Kubota Diesel Engine D1105
• Phase: Single phase
• Fuel tank: 105 litres
• Run time: 36 Hour Run @ 75% Load
• Noise level: 67 dBA @ 7m
• Dimensions (L x W x H): 203.8 x 85 x 115.5 cm
• Weight: 670 kg
• Standby output: 11kVA / 8.8kW
• Prime output: 10kVA / 8kW
• Voltage: 240V
• Frequency: 50Hz
• Engine speed: 1500 rpm
• Engine details: 3 cylinder, 1.123 L, naturally aspirated, mechanical governor
• Alternator: Stamford S0L1-P1, brushless with AVR
• Total harmonic distortion: Less than 5%
• Fuel consumption: 3.5 L/h at 100% load, 2.9 L/h at 75% load, 1.8 L/h at 50% load
• Controller: DeepSea 6120
• Circuit breaker: Two pole
• Outlets: 3 x 15A 240V
