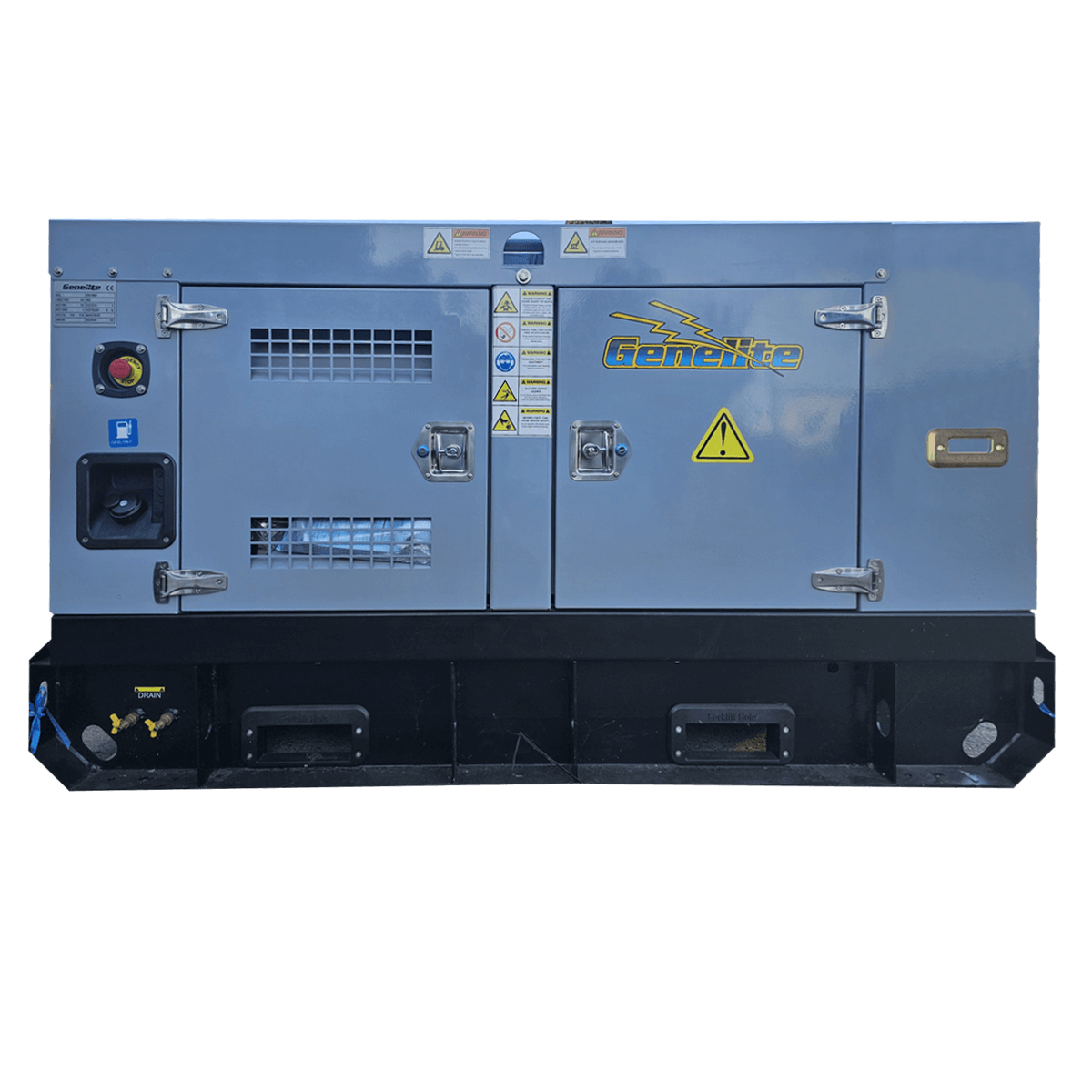

11kVA Kubota Diesel Generator LG10K

The LG10K is a three phase Kubota diesel generator rated at 10kVA (8kW) prime and 11kVA (8.8kW) standby at 415V and 50Hz. It is powered by a Kubota D1105, a three cylinder, 1.123 litre, naturally aspirated diesel running at 1500 rpm with a mechanical governor. The alternator is a Stamford S0L1-L1, brushless with AVR, and a four pole circuit breaker protects the output.

Key features

• The set has both a prime and a standby rating, so you can size it for emergency backup or for running at a varying load.
• With total harmonic distortion under 5%, sensitive electronics are suitable loads.
• The silenced canopy is rated at 67 dB(A) at 7 m, a figure to compare with your site's noise limits.
• The fuel tank holds 105 litres and is bunded to catch leaks.

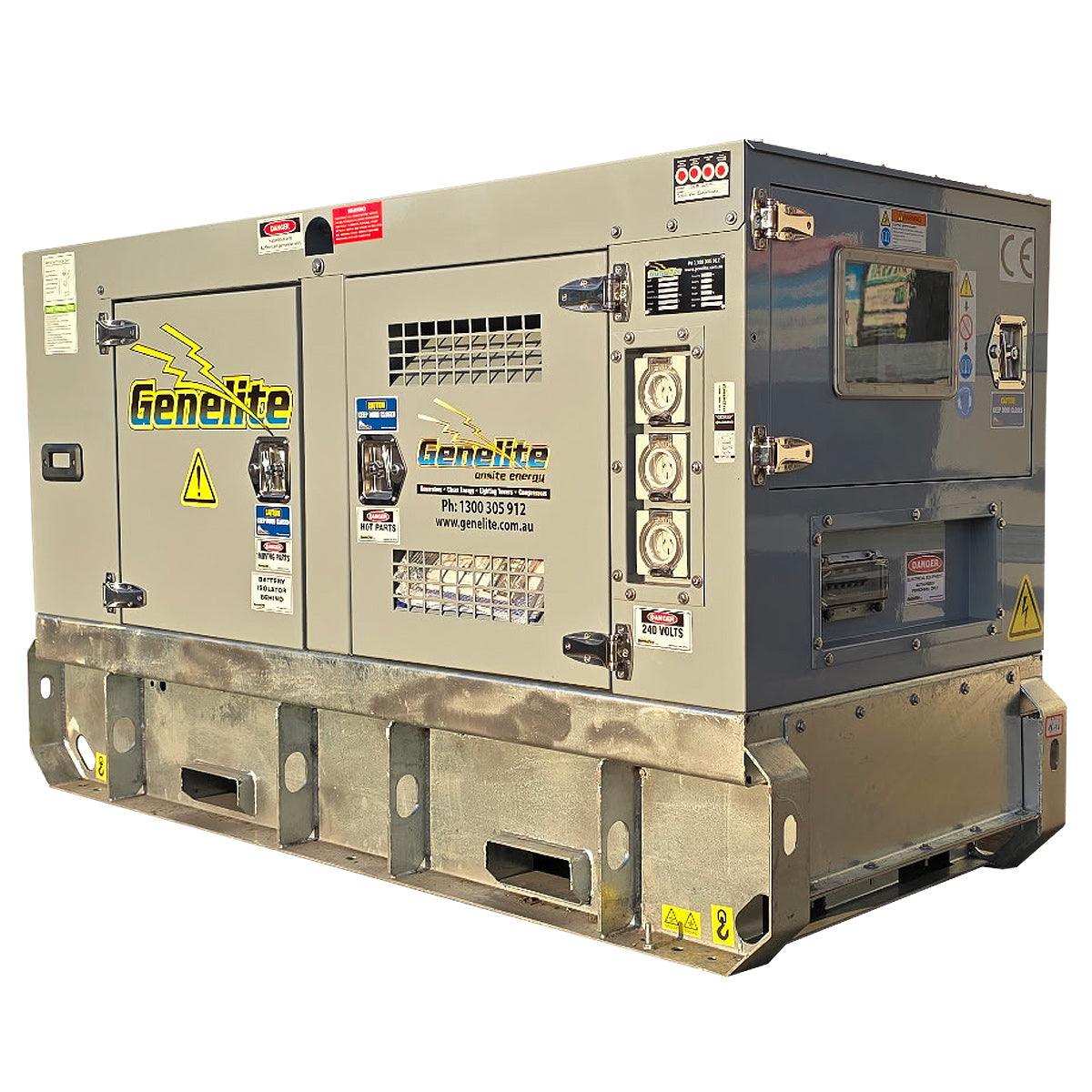

• The hot-dip galvanised skid base has fork pockets for forklift handling, and the canopy has a galvanised powder-coat finish.
• A battery charger maintains the starting battery between runs, and the isolator lets you disconnect it before servicing.
• The four pole circuit breaker switches all three phases and the neutral together.

Fuel consumption is 3.5 litres an hour at full load, 2.9 at 75% load and 1.8 at 50% load, giving 36 hours at 75% load from the 105 litre tank. Two 15A 240V outlets and one 20A 415V outlet are fitted, and the controller is a DeepSea 6120. Engine oil capacity is 5.1 litres and coolant capacity is 6.4 litres.

What it will run

At 8.8kW standby (8kW prime) on three phase 415V, the LG10K typically supports the essential circuits of a home, shed or small business: lighting, fridges and freezers, pumps and power tools, plus three phase machinery where fitted. Motors draw several times their running current at start, and single phase loads should be spread evenly across the three phases. Check the compliance plate on each appliance for its running and starting load. For home backup, connection is through an inlet and changeover switch installed by a licensed electrician, who can also assess how your loads share across the phases. Send us your load list and we will help you size it.

The LG10K suits homes, workshops, farms, cool rooms and small commercial premises that need backup through an outage, and sites where the prime rating is wanted for a varying load.

Key specifications

• Power output: 11kVA
• Engine: Kubota Diesel Engine D1105
• Phase: Three phase
• Fuel tank: 105 litres
• Run time: 36 Hour Run @ 75% Load
• Noise level: 67 dBA @ 7m
• Dimensions (L x W x H): 203.8 x 85 x 115.5 cm
• Weight: 670 kg
• Standby output: 11kVA / 8.8kW
• Prime output: 10kVA / 8kW
• Voltage: 415V
• Frequency: 50Hz
• Engine speed: 1500 rpm
• Engine details: 3 cylinder, 1.123 L, naturally aspirated, mechanical governor
• Alternator: Stamford S0L1-L1, brushless with AVR
• Total harmonic distortion: Less than 5%
• Fuel consumption: 3.5 L/h at 100% load, 2.9 L/h at 75% load, 1.8 L/h at 50% load
• Controller: DeepSea 6120
• Circuit breaker: Four pole
• Outlets: 2 x 15A 240V, 1 x 20A 415V
