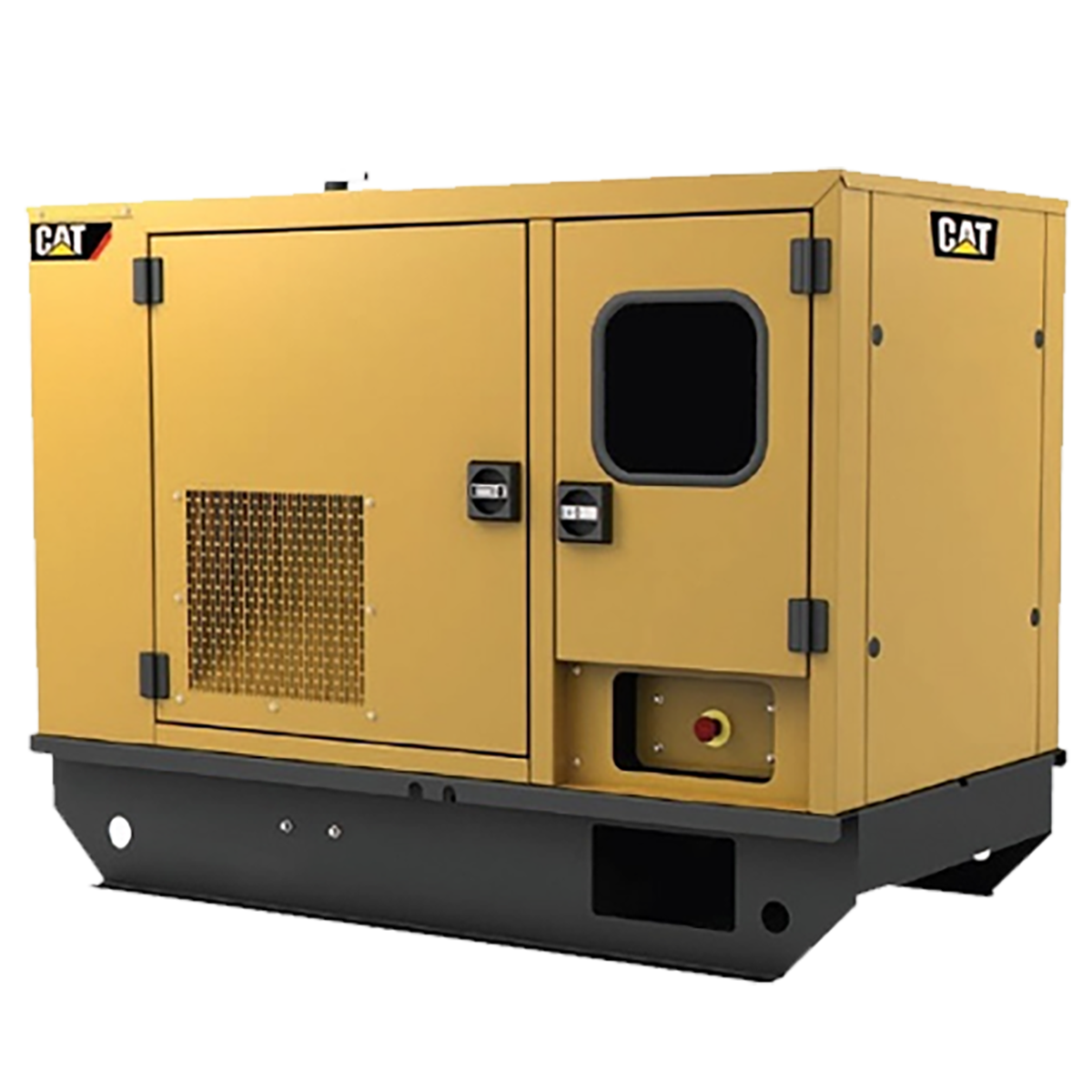

11kVA CAT Diesel Generator DE11-SP-ENCL

The DE11-SP-ENCL is a stationary, single phase diesel generator set. It pairs a Cat C1.5 engine with an LC Series alternator, model LCB1114F.

Key features

• The Cat C1.5 is a naturally aspirated, four-stroke diesel with three cylinders in line and 1.5 litres of displacement, so there is no turbocharger in the air path to maintain.
• A mechanical governor regulates engine speed, so speed control does not depend on engine electronics.
• The alternator has class H insulation, a high temperature class for the windings, and IP23 ingress protection against finger-sized objects and water spray.
• Shunt excitation and an R220/R221 automatic voltage regulator keep output voltage steady, within plus or minus 1.0% at steady state.
• The cooling system is designed for ambient temperatures up to 50°C, so hot sites sit inside its design range.

Noise is 59.9 dBA at 7 m. The engine runs on Class A2 diesel or BS EN 590 fuel and uses API CH4 15W-40 engine oil. Control is through the EMCP 4.1 panel, and the engine electrical system is 12 V negative earth.

What it will run

This single phase set typically suits workshop tools, pumps, lighting, cool rooms and small commercial loads, provided the heavier loads start one at a time. Add up what must run together, then allow extra for anything with a motor: pumps, compressors and air conditioners draw several times their running current as they start. Check each appliance's compliance plate for its running and starting figures. A licensed electrician must connect the set to your switchboard through a changeover switch. Send us your load list and we will help with sizing.

The DE11-SP-ENCL suits standby power at commercial and industrial sites: workshops, farm infrastructure, pumping, cold storage and small facilities that need a single phase supply when the mains is out.

Price on application. Stationary diesel sets are quoted to configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Power output: 11kVA standby, 10kVA prime (50 Hz)
• Engine: CAT Diesel Engine C1.5
• Phase: Single phase
• Fuel tank: 55 litres
• Run time: 62.6 Hour Run @ 75% Load
• Noise level: 59.9 dBA @ 7m
• Dimensions (L x W x H): 170.4 x 87.6 x 126.8 cm
• Weight: 650 kg
• Engine configuration: 3 cylinder in-line, 4-stroke, naturally aspirated
• Engine displacement: 1.5 litres
• Compression ratio: 22.5:1
• Governor: Mechanical
• Control panel: EMCP 4.1
• Alternator model: LCB1114F (LC Series)
• Alternator insulation and protection: Class H insulation, IP23
• Excitation and AVR: Shunt excitation, AVR R220/R221
• Voltage regulation: ±1.0% at steady state
• Engine electrical system: 12 V, negative earth
• Recommended fuel: Class A2 diesel or BS EN 590
• Engine oil: API CH4 15W-40
