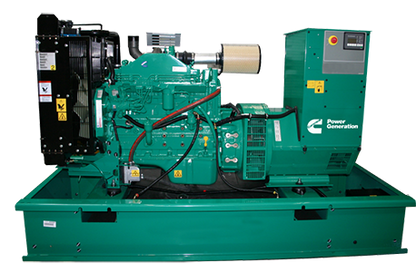

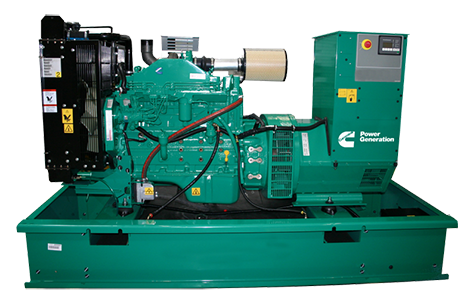

110kVA Cummins Diesel Generator C110D5

The Cummins C110 D5 is a 50Hz three phase diesel generator set rated at 110kVA (88kW) standby and 100kVA (80kW) prime at 415V. It is powered by the Cummins 6BTA5.9 G5, an in-line six cylinder, turbocharged and after cooled diesel running at 1500 rpm under an electronic governor, and it drives a Stamford alternator with a wye connected output. Starting is on a 12V DC system.

Key features

• The set carries both a standby and a prime rating, so it can be specified for emergency backup or for running under a variable load.
• Turbocharging and after cooling pack more air into the in-line six cylinder 6BTA5.9 G5, which has a gross output of 102 kWm at standby and 93 kWm at prime.
• The electronic governor regulates engine speed, which helps hold the 50Hz frequency steady as the load changes.
• The Stamford alternator produces 415V three phase through a wye connection, to supply a site's three phase distribution board.
• The cooling system is designed for an ambient temperature of 54°C and holds 19.75 litres of coolant including the radiator.
• An open and an enclosed version are both offered, so the set can be matched to the site when it is quoted.

The engine has a 102 mm bore, a 120 mm stroke and a 17.6:1 compression ratio. Lube oil capacity is 16.4 litres and the overspeed limit is 1800 rpm.

What it will run

At 110kVA standby, the C110 D5 typically suits the essential circuits of a commercial or light industrial site: lighting, pumps, refrigeration, workshop machinery and IT equipment. Size it from the real load, not the nameplate alone. Motors, compressors and air conditioners can draw several times their running current as they start, so the largest motor on site often sets the minimum size, and a soft starter or drive can reduce that peak. Spread the load evenly across the three phases and check the compliance plate on each machine. An engineer should assess the site's load schedule, and any connection to the switchboard must go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The C110 D5 suits commercial premises, processing plants, pumping stations, cold storage and other industrial sites that need standby power, and its prime rating gives an option where mains supply is limited.

See the full large generator range.

Price on application. Each set is quoted to suit its configuration, any options and the site it is going to. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 110kVA / 88kW
• Prime output: 100kVA / 80kW
• Voltage: 415V, three phase
• Engine: Cummins 6BTA5.9-G5 diesel
• Alternator: Stamford
• Dimensions (L x W x H): 226.8 x 109.4 x 157.6 cm (open), 315.1 x 114.2 x 171.4 cm (enclosed)
• Weight: 1,263 kg (open), 1,963 kg (enclosed)
• Frequency: 50Hz
• Engine configuration: In-line 6 cylinder diesel, turbocharged and after cooled
• Engine speed: 1500 rpm
• Gross engine power: 102 kWm standby, 93 kWm prime
• Governor: Electronic
• Alternator model: UCI274C, 380 to 415V
• Connection: Wye, 3 phase
• Starting voltage: 12V DC
• Capacities: Lube oil 16.4 L, coolant 19.75 L (with radiator)
• Ambient design temperature: 54°C
• Bore x stroke: 102 x 120 mm
• Compression ratio: 17.6:1
