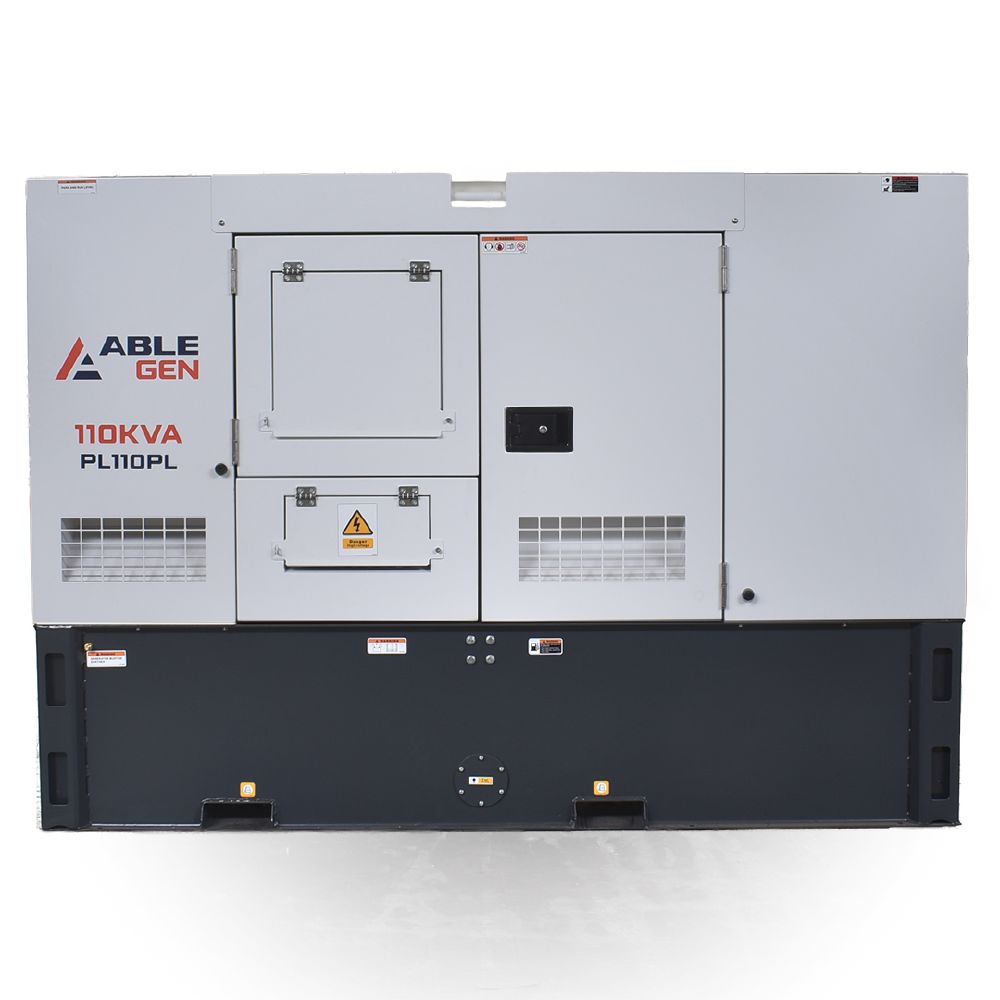

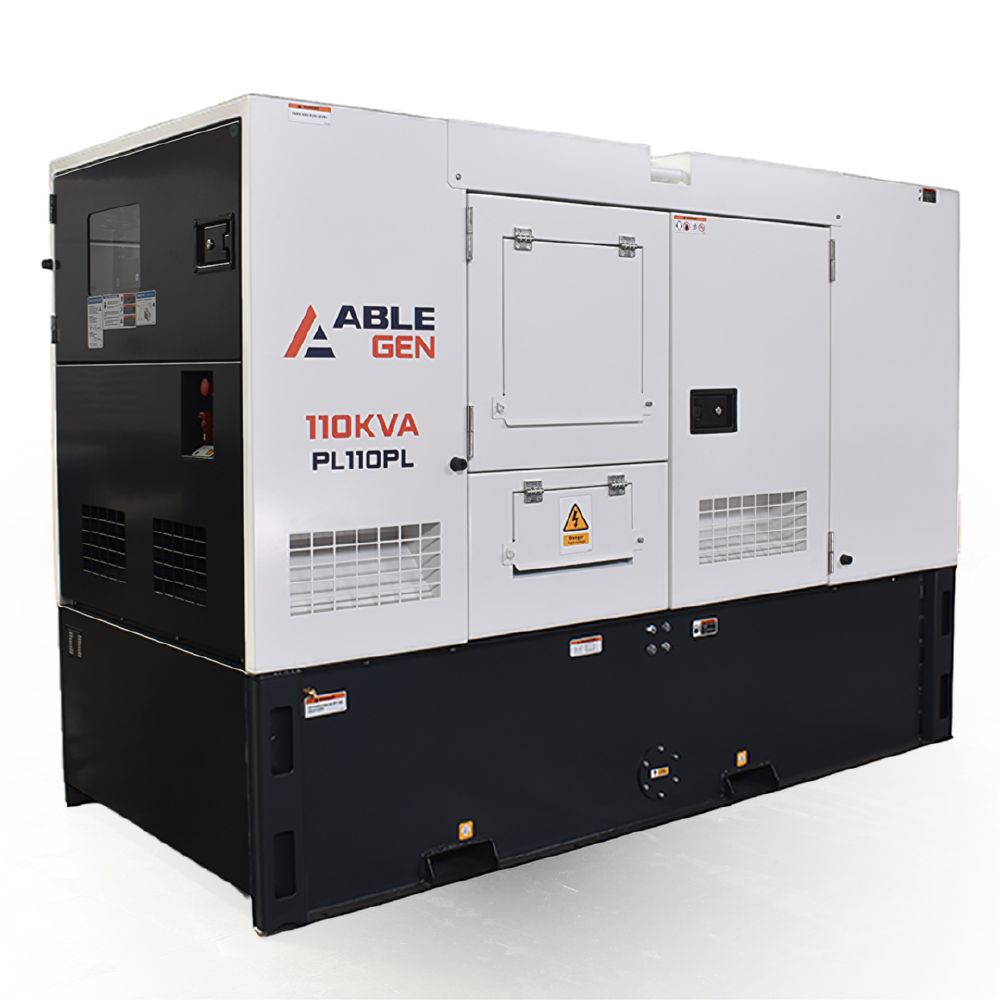

110kVA ABLE Perkins Diesel Generator PL110PL

The PL110PL is a 110kVA three phase diesel generator rated 100kVA (80kW) prime (PRP) and 110kVA (88kW) standby (ESP) at 415V, 50Hz and a power factor of 0.8. A four cylinder, 4.4 litre Perkins diesel, water cooled and running at 1500 rpm, drives a Leroy Somer LSA44.3S5 four-pole brushless alternator with AVR. Electric start is at 12 volts, the battery is included, and an IP67-enclosed RCD and over current protection are fitted.

Key features

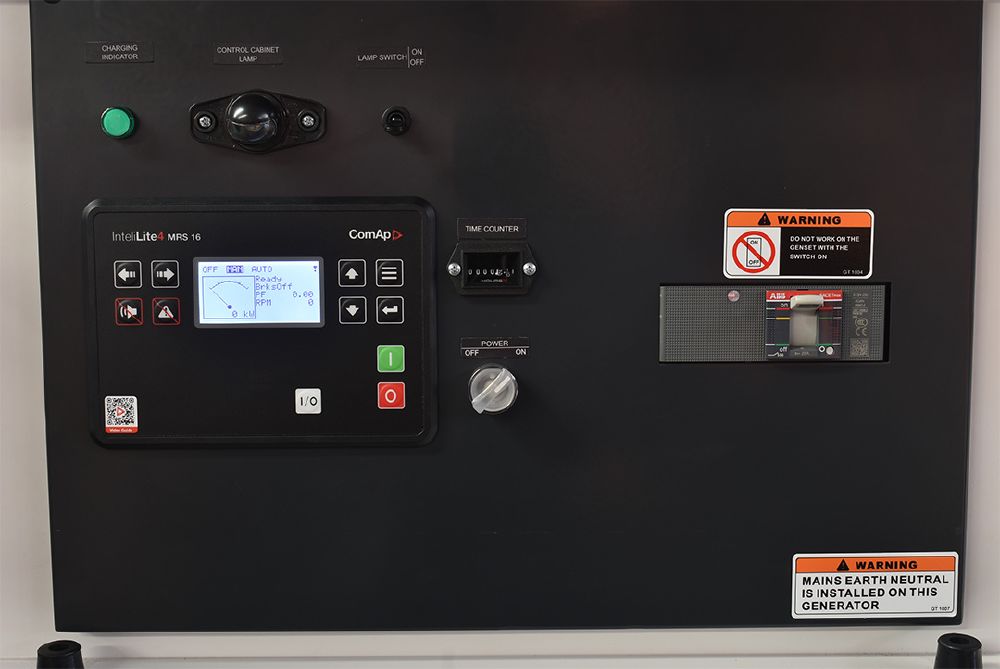

• The ComAp MRS16 controller has a two-wire remote start input, so an external switch or controller can start the set.
• Two 32A and one 20A three phase outlets and one 15A single phase outlet are rated IP66 (dust tight and protected against powerful water jets).
• Hardwire terminals allow a fixed connection to a site switchboard.
• The canopy has a lock, sound deadening, a weather-resistant powder coat and stainless steel fittings.
• For sites that must contain fuel spills, mine site ready bunding is part of the specification.
• Ambient temperatures from -25°C to 45°C are specified, with a coolant heater needed below 5°C, so you can check the set against your site.

The tank holds 580 litres and noise is about 66 dB(A) at 7 m. Its design standards are CE, ISO 8528-5:2005, AS 3000-2018 and AS 3010-2017.

What it will run

A set this large is chosen for a site's total load rather than for single appliances. Start from a load schedule that lists every motor with its running and starting current and the phase it sits on, and keep the load balanced across the three phases. Pumps, compressors and chillers can draw several times their running current as they start, so the starting sequence matters as much as the total. Check each item's compliance plate, and have an electrician or engineer assess the schedule before the set is specified. Connection to a switchboard should be made by a licensed electrician. Send us your load list and we will help with sizing.

The PL110PL suits factories, warehouses, cold stores, pumping stations and commercial buildings, as well as mine and construction sites. Its prime and standby ratings let it serve as emergency backup or run regularly on a variable load.

Key specifications

• Output: 100kVA (80kW) prime, 110kVA (88kW) standby @ 0.8PF
• Rated current: 140 Amps per phase (prime)
• Engine: Perkins 1104C-44TAG2 diesel, 1500rpm, water cooled
• Alternator: Leroy Somer LSA44.3S5 three phase 4-pole brushless alternator with AVR
• Controller: ComAp MRS16 IL4, two-wire remote start
• Start type: 12 volt electric, battery included
• Phase / voltage: Three phase, 415V, 50Hz
• Fuel: Diesel
• Fuel tank: 580 L
• Fuel use: 22.6 L/hr at prime load
• Run time: 25 hrs continuous at prime load
• Noise level: 66 dB(A) @ 7m
• Outlets: 2 x 32 Amp and 1 x 20 Amp three phase and 1 x 15 Amp single phase IP66 outlets
• Hardwire terminals: Yes
• Protection: RCD to Australian Standards (IP67 enclosed), over current protection
• Canopy: Lockable, sound deadened, weather-resistant powder coat, stainless steel fittings
• Mine spec: Mine site ready bunding
• Dimensions (L x W x H): 242 x 113 x 171 cm
• Weight: 1,874 kg
• Warranty: 3 years or 2,000 hours, prime or standby use
• Engine configuration: 4 cylinder, 4.4 L displacement
• Protection class: IP54
• Operating conditions: Ambient -25 to 45°C (coolant heater needed below 5°C)
• Design standards: CE, ISO 8528-5:2005, AS 3000-2018, AS 3010-2017
