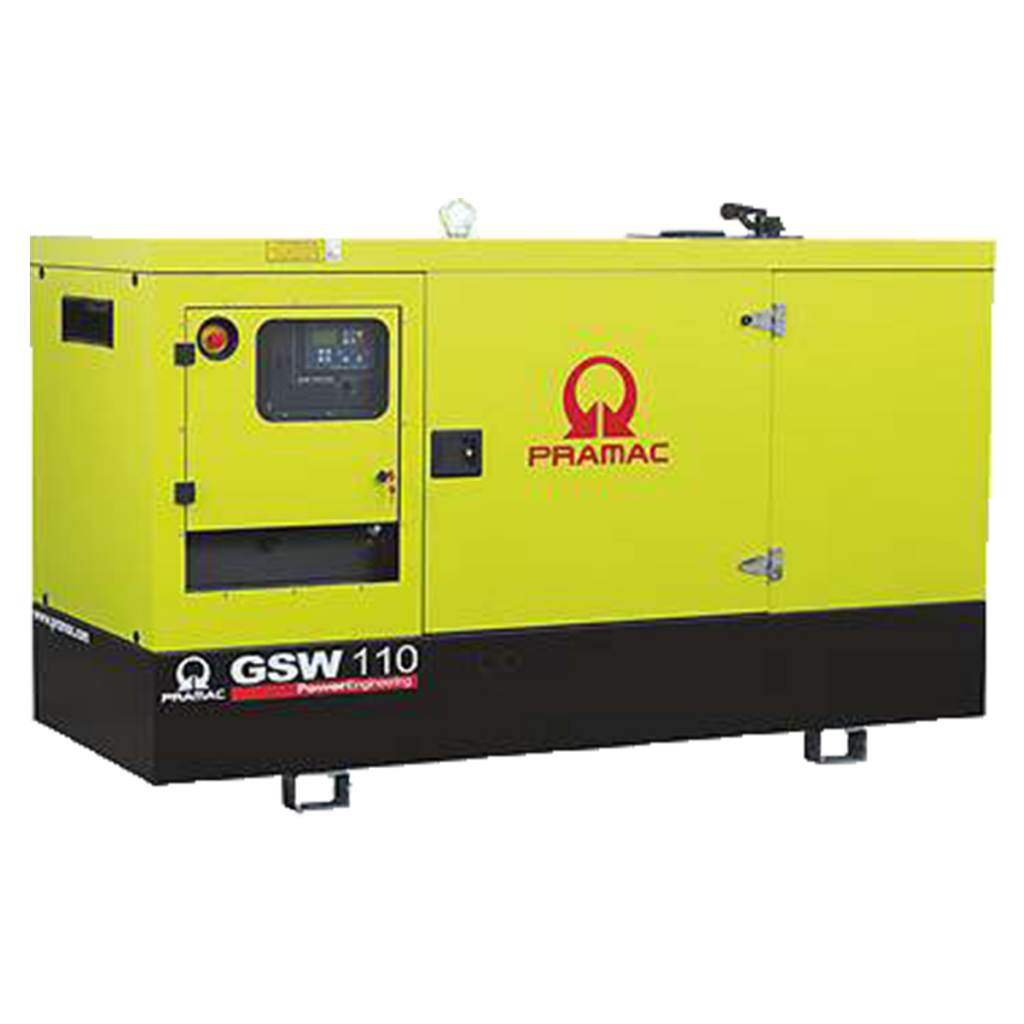

114.7kVA Pramac Diesel Generator GSW110P-P

The GSW110P is a three phase diesel generator set with a water-cooled Perkins engine and a Mecc Alte ECP34-2S/4 alternator. Its output is 50Hz with a power factor of 0.8, and it carries both prime (PRP) and standby (LTP) ratings. The alternator is brushless, with Class H insulation and IP23 protection, and the set sits in a soundproofed, zinc-coated weatherproof steel enclosure with a digital automatic control panel.

Key features

• A brushless alternator has no brushes to wear, which cuts routine alternator servicing.
• Class H insulation gives the windings thermal headroom, and IP23 protection guards against larger solid objects and light water spray.
• The zinc-coated steel enclosure is weatherproof and resists corrosion, and it is soundproofed to keep the set's noise down.
• A digital automatic control panel puts control, monitoring and protection in one place at the set.
• Three phase output suits motors, pumps and building distribution boards without a converter.

The fuel tank holds 209 litres, which gives 11.6 hours at 75% of prime power and 9.25 hours at 100%. Noise is 67 dB(A) at 7 m.

What it will run

Sizing a set of this class starts with a site load schedule: list the three phase motors, pumps, chillers, lighting and distribution boards that must keep running, with the running and starting demand of each. The largest motor typically sets the starting requirement, so have an electrician or engineer assess it. As a general guide, the standby (LTP) rating suits emergency backup with limited annual running hours, and the prime (PRP) rating suits variable loads with unlimited annual hours. Connection to site wiring and any transfer switch must be installed by a licensed electrician. Send us your site load list and we will help you size it.

The GSW110P suits factories and workshops, warehouses, large commercial buildings, pumping and treatment plants, and farms or processing sites on a three phase supply that need a backup or prime power source.

Price on application. Sets of this size are quoted to suit the configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 114.67 kVA standby / 103.84 kVA prime power
• Perkins 1104C-44TAG2 water-cooled engine
• Mecc Alte alternator
• Soundproofed, zinc-coated weatherproof steel enclosure
• Digital automatic control panel
• 1-year warranty
• Free fuel and oil filter kit included
• 3-phase output
• Weight: 1400 kg
• Dimensions (L x W x H): 240 x 100 x 153 cm
• Frequency: 50Hz
• Power factor: 0.8
• Alternator model: Mecc Alte ECP34-2S/4, brushless, Class H insulation, IP23
• Fuel tank: 209 litres
• Run time: 11.6 hours at 75% PRP; 9.25 hours at 100% PRP
• Noise level: 67 dB(A) at 7 m
• Sound power level (LWA): 96 dB(A)

Part of the Pramac range at Gen4Sale.
