1100kVA Cummins or Perkins Diesel Generator GC1000S / GP1000S

The GC1000S is a Cummins-powered three phase diesel generator set rated at 1000kVA (800kW) prime and 1100kVA (880kW) standby at 415V and 50Hz. Perkins power comes as the GP1000S; the figures here are for the Cummins GC1000S. Its engine is a Cummins KTA38G5, a 12 cylinder, 37.8 litre turbocharged and aftercooled diesel running at 1500rpm with an electronic governor, driving a brushless Stamford S6L1D-H alternator with AVR. A Deep Sea 8610 MKII synchronising controller and a four pole circuit breaker handle control and output.

Key features

• The Deep Sea 8610 MKII is a synchronising controller, which allows the set to be synchronised for parallel operation.
• A 1000 litre bunded day tank is built to contain spills and gives about 6.9 hours of running at 75% load.

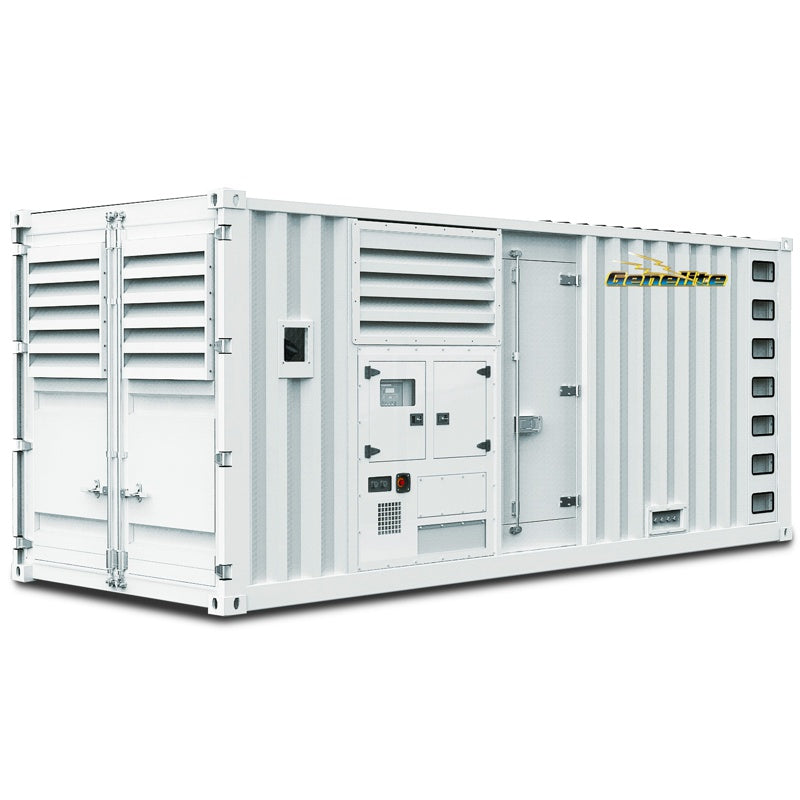

• A silenced container houses the set and reduces the noise it makes in operation.
• The Stamford alternator is brushless with AVR, and harmonic distortion below 5% suits electronic equipment as well as motors.
• A four pole circuit breaker switches the three phases and neutral together.
• A battery charger and isolator keep the starting battery charged and allow it to be isolated for servicing.

At full load the engine uses 201 litres an hour, falling to 145 at 75% load and 109 at 50% load, so the day tank gives about 5 hours at full load. Oil capacity is 135 litres and coolant capacity is 199 litres.

What it will run

At 1000kVA prime and 1100kVA standby (800kW and 880kW), the GC1000S is sized from the site's load schedule rather than from individual appliances. It typically suits large industrial plant, processing lines, pumping stations and commercial buildings on three phase 415V. An electrician or engineer should assess the site's loads, including the starting current of the largest motors and any step loads, before the set is specified. Prime power (PRP) is continuous operation at variable load for unlimited hours a year, with an average load factor of 75% and 10% overload for 1 hour in 12. Standby power (ESP) is an emergency supply at an average load factor of 85%, with no overload capability and a limit of 400 hours a year. Send us your site load list and we will help with sizing.

The GC1000S suits industrial plants, processing and manufacturing sites, mining and construction projects and large commercial buildings that need three phase standby or prime power.

Price on application. A set of this size is quoted to the engine, configuration, options and site requirements of each project. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 1100 kVA three-phase diesel generator
• Choice of Cummins or Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open and silenced (S) canopy configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Custom-built or off-the-shelf solutions available
• Weight: 15500 kg
• Dimensions (L x W x H): 605.8 x 243.8 x 289.6 cm
• Specifications below are for: Cummins GC1000S
• Prime and standby ratings: 1000kVA / 800kW prime, 1100kVA / 880kW standby
• Voltage and frequency: 415V, 50Hz, three phase
• Engine: Cummins KTA38G5, 12 cylinders, 37.8L, turbocharged and aftercooled, electronic governor
• Controller: Deep Sea 8610 MKII
• Alternator: Stamford S6L1D-H, brushless with AVR, Class H insulation, harmonic distortion less than 5%
• Circuit breaker: Four pole
• Fuel tank and run time: 1000 L bunded day tank, 6.89 hours at 75% load
• Enclosure: Silenced container
• Fuel consumption: 201 L/h at 100% load, 145 L/h at 75% load, 109 L/h at 50% load
• Capacities: Lube oil 135 L, coolant 199 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
