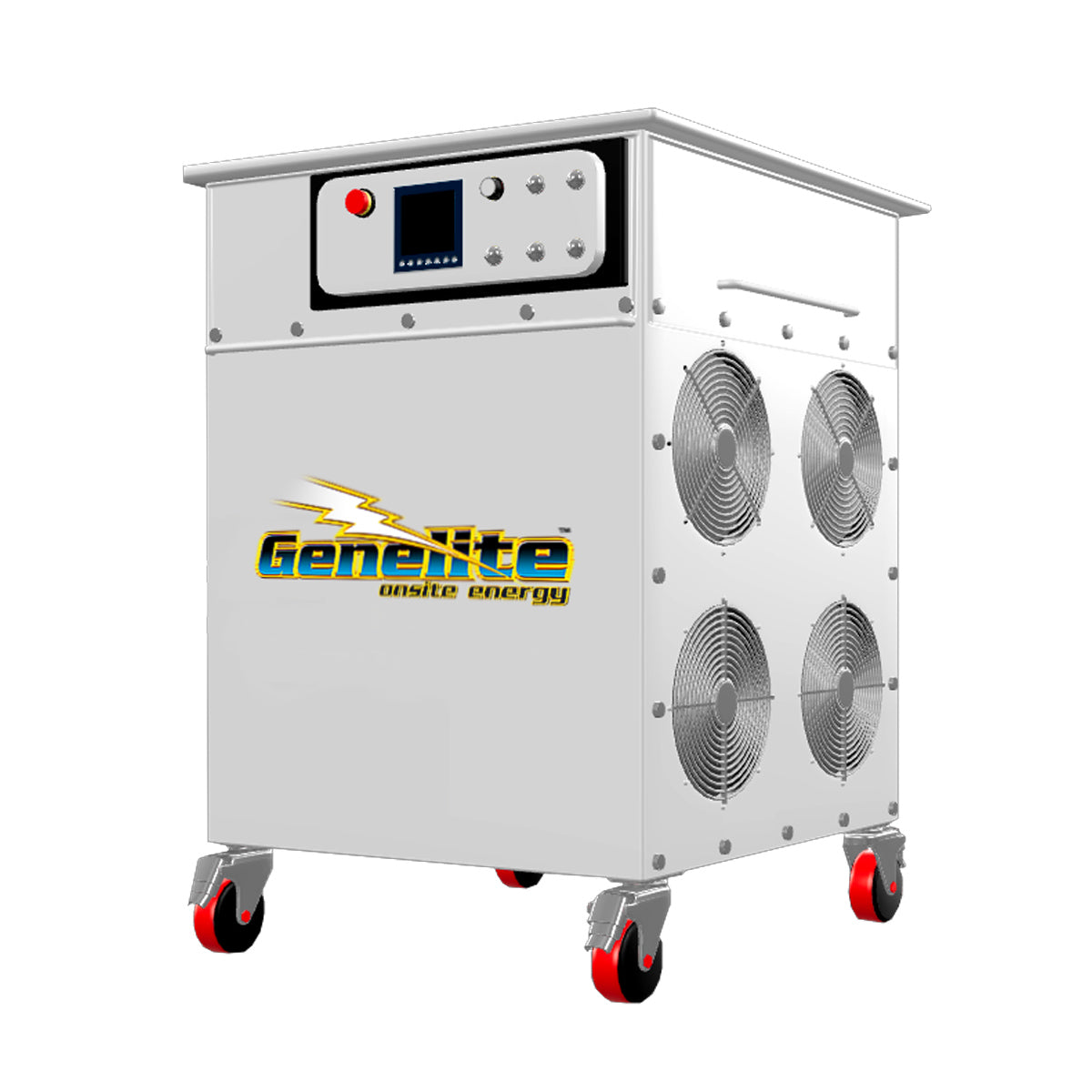

PDL-50 kW Load Bank

The PDL-50kW is a manually operated, portable load bank for load-testing generators up to 50 kW. It uses metal-sheathed, nickel-resistance-wire elements with cooling fins, cooled by built-in industrial fan blowers, and offers incremental load switching via 8 switches plus fine adjustment via a rheostat. It has a NEMA Type 1 enclosure, heavy-duty casters for mobility, and lifting eye hooks, with optional digital metering for voltage, current, frequency and power factor.

• Manual, portable load bank rated up to 50 kW
• Metal-sheathed nickel resistance wire elements with cooling fins
• Built-in industrial fan cooling (internal or external power)
• Incremental load testing via 8 switches
• Variable load testing via rheostat for precise power setting
• Optional digital meters for voltage, amps, frequency, power factor
• Rated for +/-15% AC voltage fluctuation at 50Hz or 60Hz
• NEMA Type 1 enclosure with heavy-duty casters and lifting eye hooks
