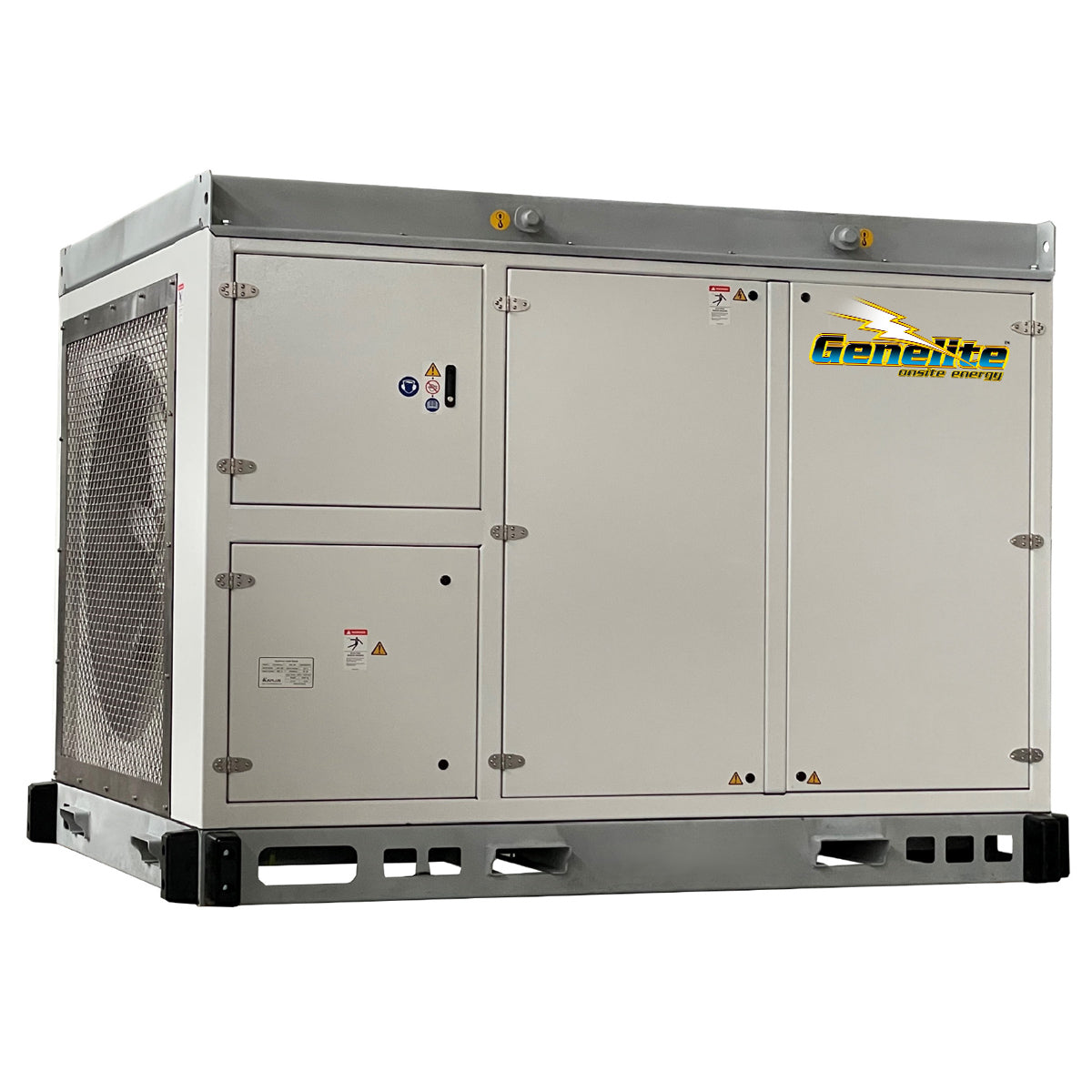

GLB-660 kW Load Bank

This is a 660 kW automatic, resistive-load load bank rated for continuous duty at 415V, 50/60Hz, with a power factor of 1. It is built to be permanently installed indoors or outdoors and to withstand ambient temperatures up to 50°C. Its control panel automatically loads a connected generator to prevent wet-stacking and cylinder glazing, and it is aimed at sites that need to routinely exercise or load-test standby generators, such as mine camps, data centres and telecoms facilities.

Key specifications

• Automatic load bank rated 0-660 kW
• Resistive load type, continuous duty
• 415V output at 50/60 Hz, power factor of 1
• Rated for ambient temperatures up to 50°C
• Can be permanently installed indoors or outdoors
• Automatically maintains optimum generator load to help prevent wet-stacking and cylinder glazing
• Marketed for mining camps, data centres, telecoms, defence and pump-station use
• Delivered load- and function-tested with fluids, ready to run once fuel is added
