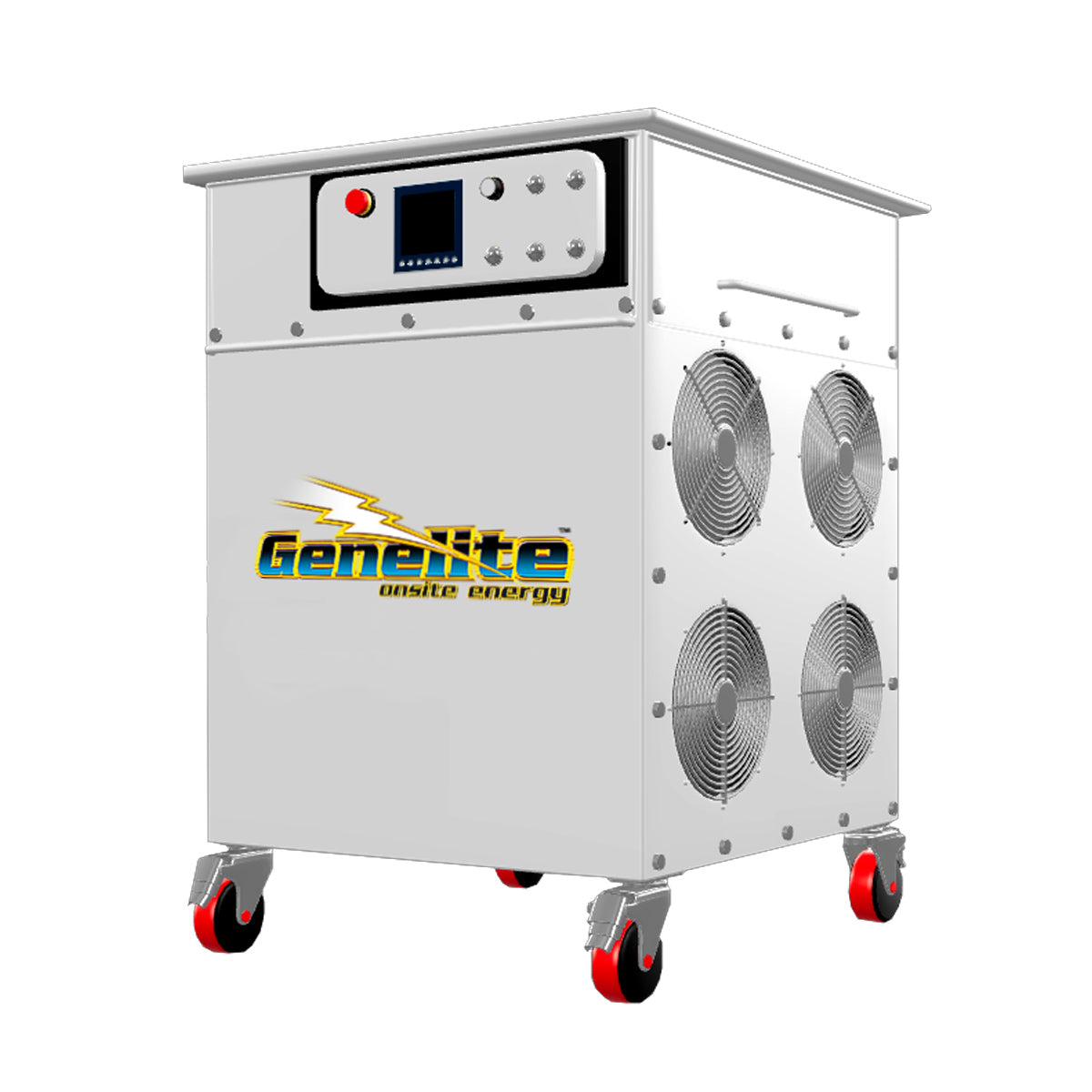

PDL-200 kW Load Bank

The PDL-200 is a portable, manually-operated 200 kW resistive load bank on heavy-duty casters, used to test generators under load. It uses nickel-resistance element banks with cooling fins, cooled by built-in fan blowers, offers coarse load steps via 8 switches plus fine control via a rheostat, and can optionally display voltage, current, frequency and power factor on digital meters.

• 200 kW resistive load bank rating
• Heavy-duty casters for portability
• Nickel-resistance U-type heating elements with cooling fins
• Built-in industrial fan blower cooling, powered internally or externally
• 8-switch incremental load steps plus rheostat for fine control
• Optional digital display meters for voltage, amps, frequency, power factor
• Rated for AC voltage fluctuation of ±15% at 50/60 Hz
• NEMA Type 1 enclosure with top lifting eye hooks
