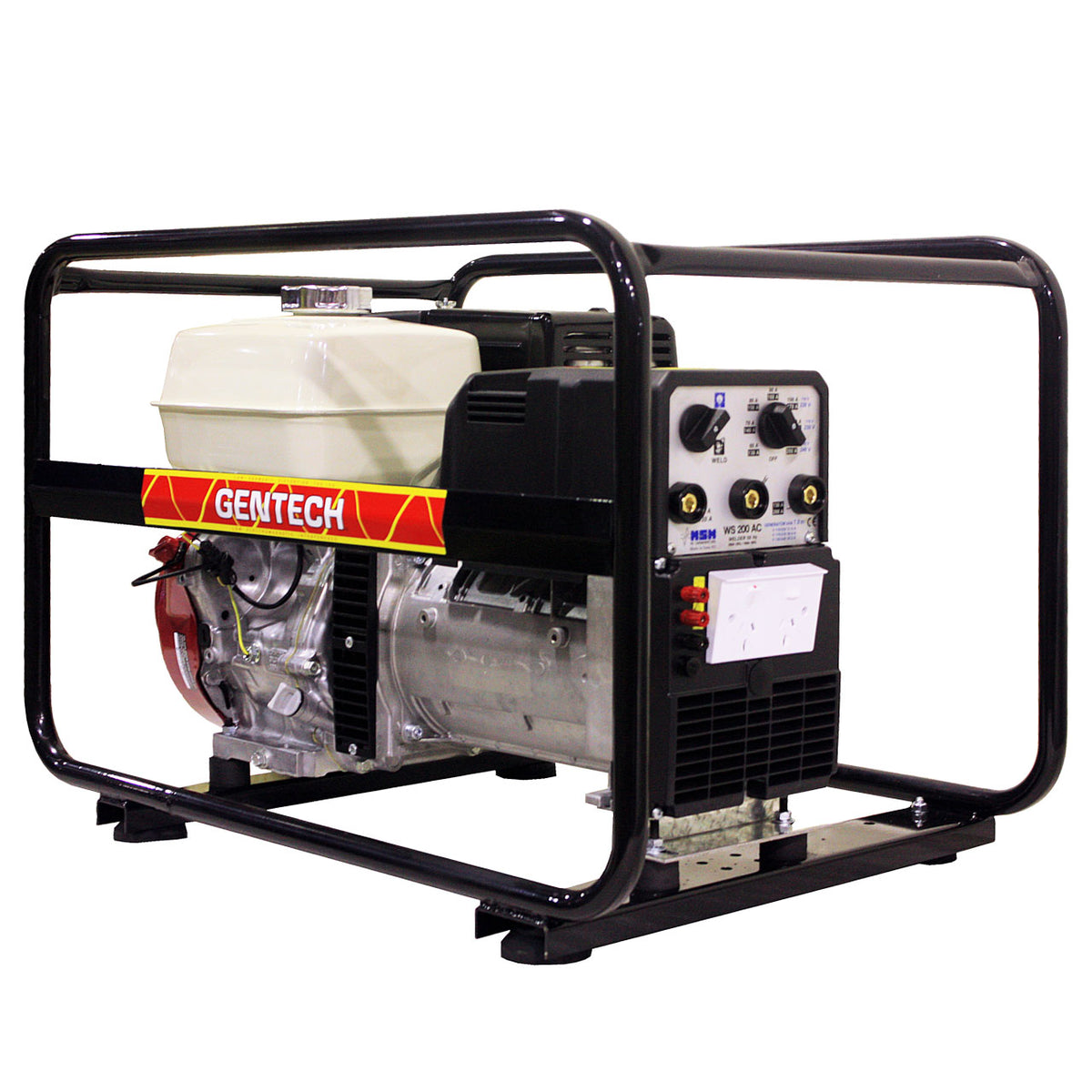

7kVA (200A) Gentech Petrol Welder Generator EP200WELDHSR

The EP200WELDHSR is a combined welder generator: 200 amps of welding output at 60 percent duty cycle plus 7kVA of single phase 240V generation, powered by the genuine Honda GX390 with recoil start.

It runs from a 6.1 L fuel tank, giving 2.5 hours at 80 percent load. Noise is rated at 69 dBA at 7m, and output is delivered through Double GPO 15 Amp.

The EP200WELDHSR handles rural repairs and fencing through to mobile welding services and workshop duty: stick weld at 200 amps, then run grinders, drills and lights off the generator side of the same machine. The EP200WELDHSRE adds electric start, and a heavy duty leads kit is available as an optional extra.

Optional extras for this model include: Generator Dust Cover - Large.

Key specifications

• Maximum output: 7kVA @ 0.8PF
• Welding output: Welder 200 Amp, Duty Cycle 60%; welding leads not included, sold separately
• Engine: Honda GX390 (11 HP per PDF)
• Start type: Recoil
• Fuel: Petrol
• Fuel tank: 6.1 L
• Run time: 2.5 hrs @ 80% Load; approx fuel consumption 2.44 L/Hr @ 80% Load
• Noise level: 69 dBA @ 7m
• Outlets: Double GPO 15 Amp
• Phase / voltage: 1-Phase; 230 V
• Dimensions: 810 x 545 x 545 mm (L x W x H)
• Weight: 100 kg
• Warranty: Generators 24 months; Honda GX engine 36 months. A separate Workstation-line PDF states 'Honda's 4 year warranty' for GX390 petrol models generally - not confirmed to apply here, open question

Gentech generators are backed Australia-wide with national parts and service support.
