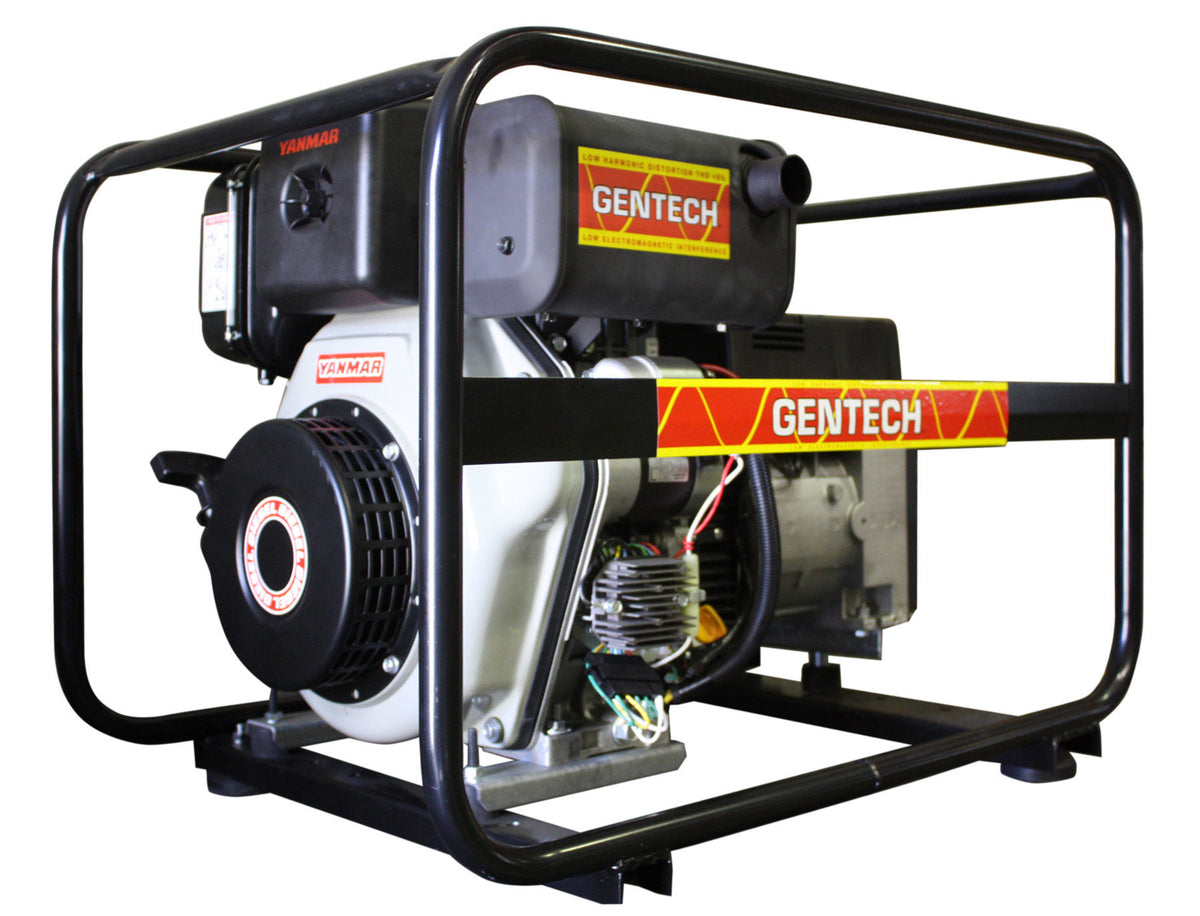

6.8kVA Gentech Diesel Generator ED6800YSRE

The ED6800YSRE is a 6.8kVA single phase diesel generator rated at 0.8 power factor, powered by the Yanmar L100N5 with electric start on a rollover frame.

It runs from a 5.4 L fuel tank, giving 3.3 hours at 80 percent load. Noise is rated at 80 dBA at 7m, and output is delivered through 2 x 15 Amp outlets.

The ED6800YSRE is built for long, frequent running: standby for workshops, cool rooms and small premises, shed and bore duty on properties, and site power where diesel is already the fuel on hand. A 415V three phase version is available as the ED6800YSRE-3, and a mine specification build as the ED6800YSRE-MINE.

Optional extras for this model include: Generator Dust Cover - Large.

Key specifications

• Maximum output: 6.8kVA @ 0.8PF
• Engine: Yanmar L100N5, 3000 rpm
• Start type: Electric
• Fuel: Diesel
• Fuel tank: 5.4 L
• Run time: 3.3 hrs @ 80% Load (approx fuel consumption 1.65 L/hr @ 80% Load)
• Noise level: 80 dBA @ 7m
• Outlets: 2 x 15 Amp
• Phase / voltage: 1-Phase, 230 V
• AVR / RCD: RCD not standard - 'Earth Leakage Protection RCD 32 Amp' optional accessory only
• Dimensions: 810 x 545 x 545 mm (L x W x H)
• Weight: 100.5 kg
• Warranty: 24 months frame/alternator (Gentech); 12 months engine (Yanmar)

Gentech generators are backed Australia-wide with national parts and service support.
