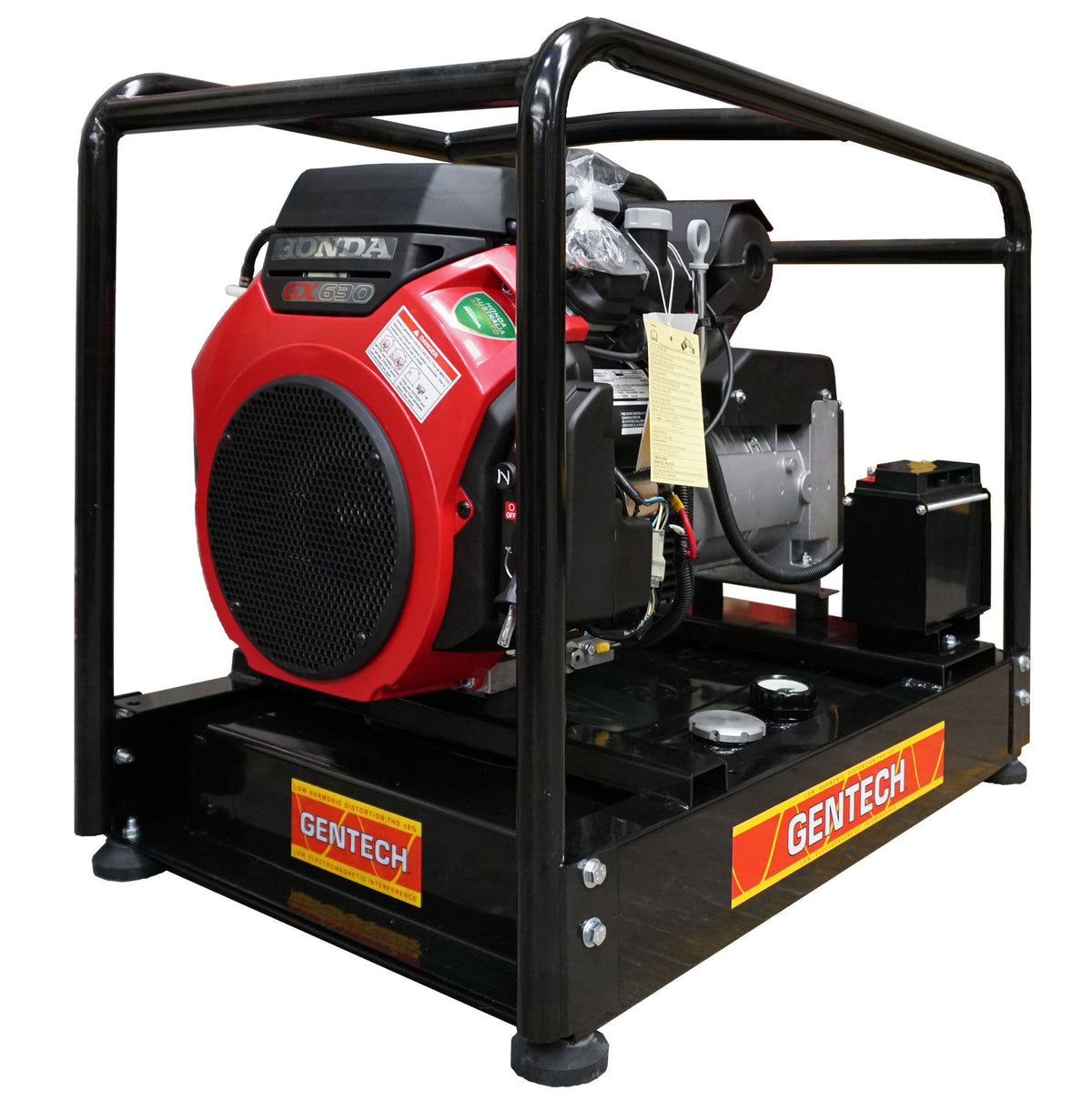

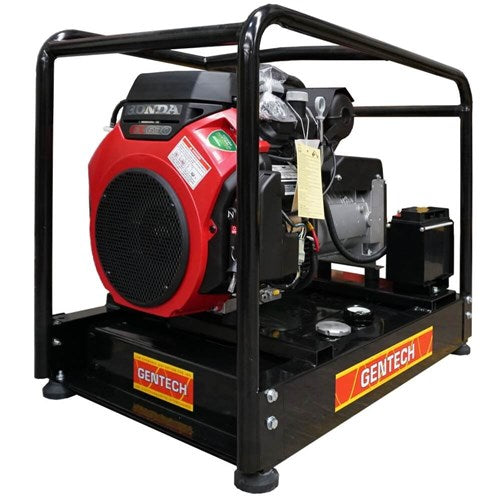

12.5kVA Gentech Three Phase Petrol Generator EP12000HSRE-3

The EP12000HSRE-3 is a 12.5kVA three phase petrol generator producing 415V output at 0.8 power factor from the Honda GX630 V-twin with electric start.

It runs from a 34 L fuel tank, giving 6.15 hours at 80 percent load. Noise is rated at 75 dBA at 7m, and output is delivered through 1 x 20Amp 3 phase 5 pin, 2 x 15Amp single phase outlets.

The EP12000HSRE-3 drives augers, larger pumps, and workshop and processing machinery on farms and remote sites, with the V-twin keeping motor starting undramatic. For single phase work at similar output, see the EP11000HSRE.

Key specifications

• Maximum output: 12kVA @ 0.8PF
• Engine: Honda V Twin GX630
• Start type: Electric
• Fuel: Petrol
• Fuel tank: 34 L
• Run time: 6.15 hrs @ 80% Load; approx fuel consumption 5.53 L/hr @ 80% Load
• Noise level: 75 dBA @ 7m
• Outlets: 1 x 20Amp 3 phase 5 pin, 2 x 15Amp single phase
• Phase / voltage: 1-Phase / 3-Phase; 230V / 415V
• Dimensions: 876 x 546 x 700 mm (L x W x H)
• Weight: 130 kg
• Warranty: Frame/alternator 24 months; Honda GX engine 36 months

Gentech generators are backed Australia-wide with national parts and service support.
